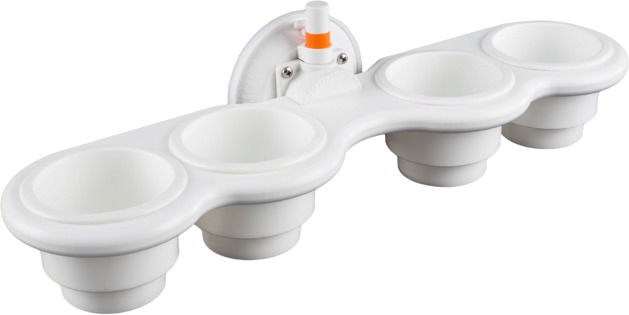

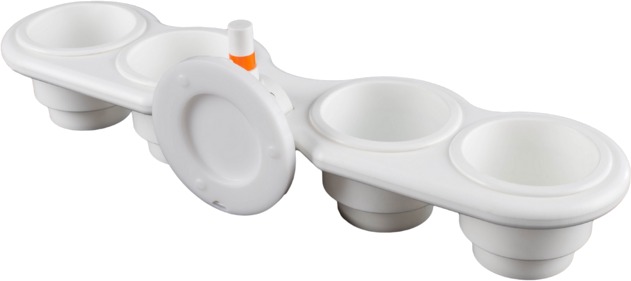

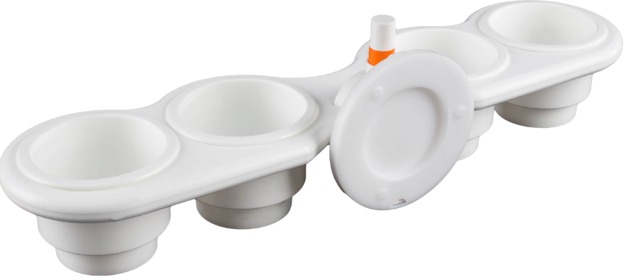

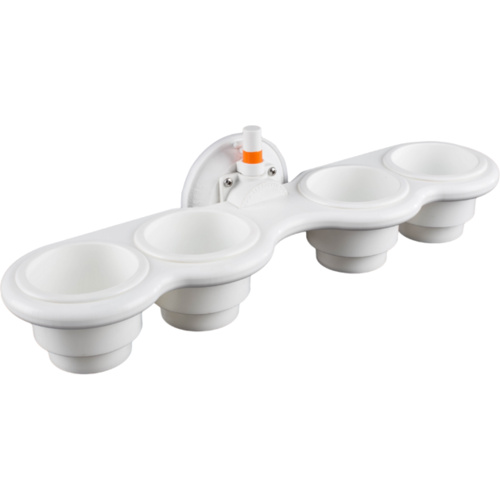

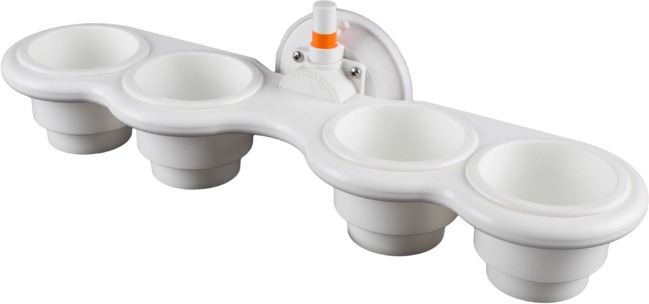

The SeaSucker 4 Cup Holder Vertical Mount

The SeaSucker low-profile 4 Cup Holder will attach to a vertical surface on your boat or car or caravan etc..  The 89 mm cup inserts can accommodate most drinks with the foam insulation / stubbie holder still wrapped around them. Or swap out one of the cup holder inserts for an optional Small Dry Box (a small waterproof storage box for your wallet, Smartphone, etc.) Made from 19 mm white starboard. Comes with a 114 mm Vacuum Mount for packing 45 kg of holding power.

WHAT'S IN THE BOX?

  • SeaSucker 4-Cup Holder Vertical Mount Kit includes
    • 1 x SeaSucker 4-Cup Vertical Mount Frame
    • 4 x 89 mm Cup Inserts
    • 1 x 114 mm SeaSucker White Vacuum Mount
    • 1 x 114 mm SeaSucker White Protective Cover
    • SeaSucker Vacuum Mount User Guide
    • This kit arrives pre-assembled













Like our motto says NO DRILLS!  NO SCREWS!!  NO PROBLEMS!!!

We offer a 1 year, non-transferable warranty covering defects in materials and workmanship. The warranty covers the defective product only and can be returned within 1 year of the date of original purchase to Gear Campus for replacement or repair. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages.

A sales receipt must accompany warranty claims. If your product fails due to a manufacturing or workmanship defect our first option will be to repair the item, free of charge. If the product is not repairable, or if the cost of repairing the item exceeds the cost of a new one, we will replace it. If the item has failed due to a manufacturing defect, we will pay the return shipping charges.

Product Features & Benefits

  • You will save on the cost of repairs by not having to fill in holes, this can get very expensive!
  • The vacuum mount is low maintenance; all parts are replaceable and the pump is serviceable.
  • It will attach to steel, aluminium, glass, fibreglass, painted plaster and some non-skid surfaces.
  • Save money by not having to buy the same accessory for your next boat.
  • You can relocate the Cup Holder in seconds and leave no marks behind.
  • Going out in your friends boat, just take the 4-Cup Holder Vertical Mount with you.

Also refer to the SeaSucker Vacuum Mount User Guide for detailed vacuum mount specifications and instructions.

114 mm Vacuum Mount Specifications
Maximum Pull Rating:  45 kg
Load Carrying Capacity: 18.14 kg
Vacuum Mount Diameter: 114 mm
Vacuum Mount Height when mounted: 45 mm
Vacuum Mount Height at rest: 52 mm
Housing Top Diameter:  60 mm
Housing Height Only: 33 mm
Housing Top Slot Width: 7 mm
Housing Top Slot Length: 14 mm
Housing Centre Thread:  ¼-20
4-Cup Holder Vertical Mount Specifications
Cup Holder Overall Length:  559 mm
Cup Holder Overall Width: 127 mm
Cup Holder Internal Diameter: 89 mm
Cup Holder Max. Depth: 80 mm
Cup Holder Min. Depth: 57 mm













SKU 5321
Barcode # 827912088724
Brand SeaSucker
Shipping Weight 2.0000kg
Shipping Width 0.700m
Shipping Height 0.150m
Shipping Length 0.420m
Unit Of Measure mm
