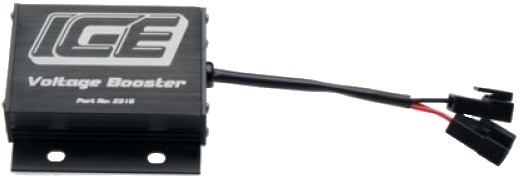

The ICE Ignition 16 volt Booster for ICE 7 amp kits and Bosch HEI Ignition Systems

The ICE Ignition 2316 Booster converts a 10 - 15 volt input and produces a steady 16 volt output to coil positive. It produces 7.5 amps maximum continuous output or 10 amps for 30 seconds. Best of all the ICE Ignition 2316 Booster does not require an alternator to supply 16 volts to coil positive. If space or weight is an issue the alternator can be removed with no impact to the Voltage Booster. If the alternator is installed the ICE Ignition 2316 Booster will supercharge the alternators 13.8 - 14.8 voltage output to 16 volts.

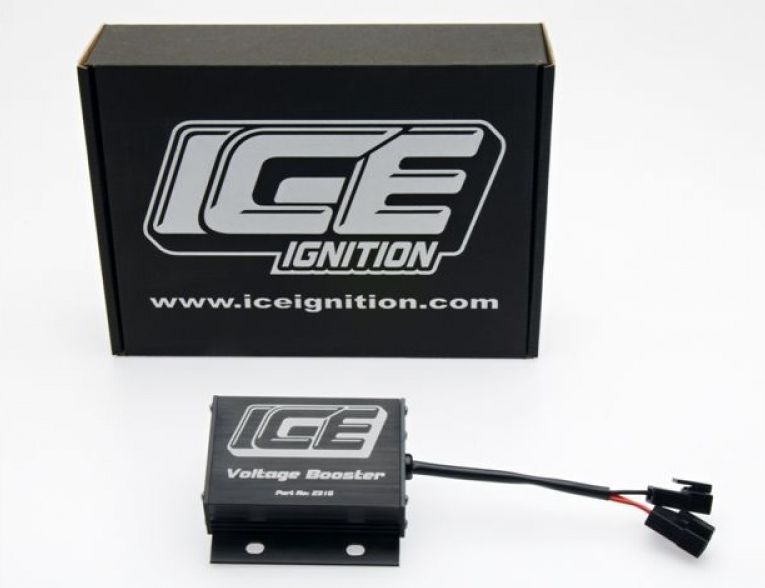

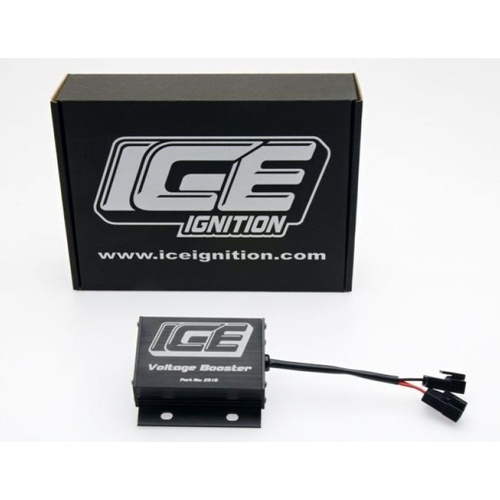

WHAT'S IN THE BOX?
  • 1 x ICE Ignition 2316 Voltage Booster
  • 1 x Wiring Harness
  • Installation Instructions


We offer a 3 year, non-transferable warranty covering defects in materials and workmanship if properly installed. If installation instructions have been followed and the product is found to be defective, Gear Campus will replace or arrange for repair if returned along with proof of purchase. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law. The foregoing is exclusive and in lieu of all other warranties or representations whether expressed or implied, including any implied warranty of merchanability or fitness. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages. Products must be returned as originally supplied. Warranty is void if products have been modified or tampered with in any way or installation instructions are not followed.

Product Features & Benefits

  • Maximum rated 7.5 amps continuous output or 10 amps for 30 seconds.
  • Produces 16 volts constant to coil positive even without an alternator.
  • ICE Voltage Booster complements the ICE 7 AMP DIS ignition systems
  • Black anodised aluminium case with stainless steel tamper-proof screws.
  • Delivers consistent voltage required for the most demanding engine applications
  • Extra long life under the most demanding road, race or marine applications.

ICE Ignition 2316 Voltage Booster Specifications

Output to coil positive 16 volts
Maximum rated continuous output: 7.5 amps
Maximum rated output for 30 seconds: 10 amps
Voltage Booster Length (Backplate): 105 mm
Voltage Booster Width: 106 mm
Voltage Booster Height: 33 mm
Voltage Booster Weight: 500 grams











SKU 2316
Brand ICE Ignition
Shipping Weight 1.2000kg
Shipping Width 0.280m
Shipping Height 0.080m
Shipping Length 0.210m
Unit Of Measure mm
