We offer a 1 year, non-transferable warranty covering defects in materials and workmanship. The warranty covers the defective product only and can be returned within 1 year of the date of original purchase to Gear Campus for replacement or repair. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages.

A sales receipt must accompany warranty claims. If your product fails due to a manufacturing or workmanship defect our first option will be to repair the item, free of charge. If the product is not repairable, or if the cost of repairing the item exceeds the cost of a new one, we will replace it. If the item has failed due to a manufacturing defect, we will pay the return shipping charges.

Product Features & Benefits

• Save money by not having to fill holes in your transom, this can get very expensive!

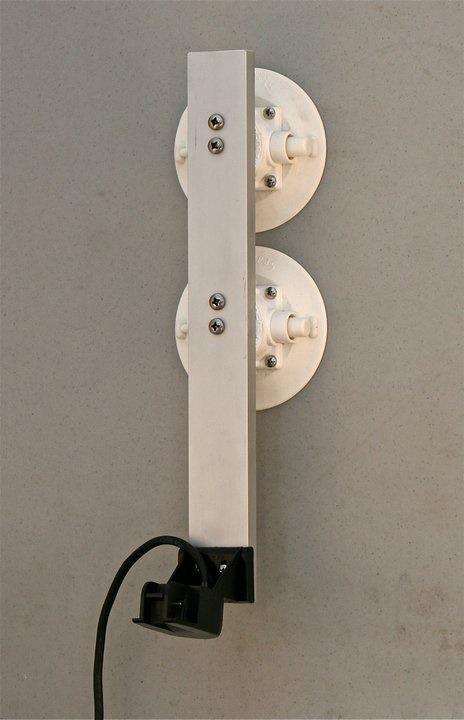

• Easily adjust the position of your transducer to suit the conditions
• The vacuum mounts are low maintenance; all parts are replaceable and the pump is serviceable.
• It will attach to steel, aluminium, glass, fibreglass, painted plaster and some non-skid surfaces.

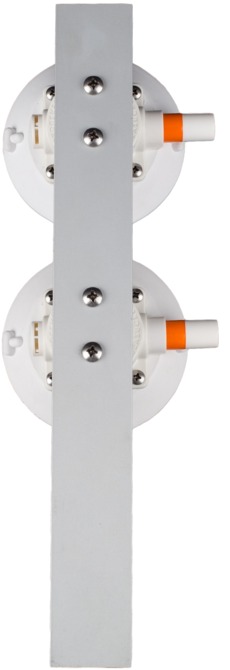

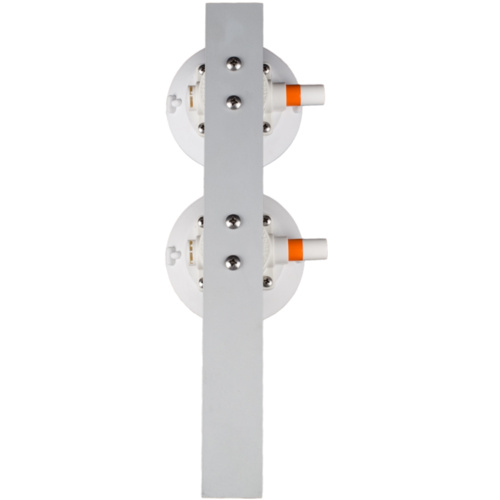

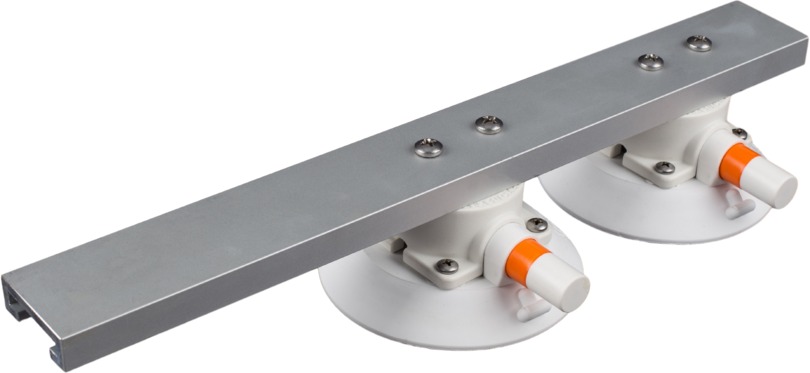

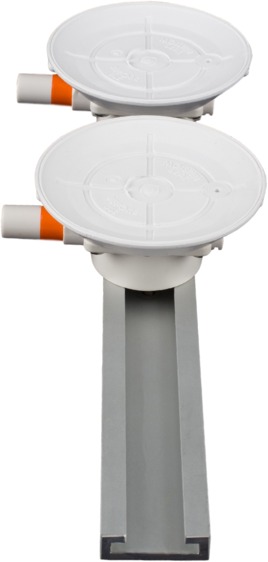

114 mm Vacuum Mount Specifications

Maximum Pull Rating:	45 kg
Load Carrying Capacity:	18.14 kg
Vacuum Mount Diameter:	114 mm
Vacuum Mount Height when mounted:	45 mm
Vacuum Mount Height at rest:	52 mm
Housing Top Diameter:	60 mm
Housing Height Only:	33 mm
Housing Top Slot Width:	7 mm
Housing Top Slot Length:	14 mm
Housing Centre Thread:	¼-20
