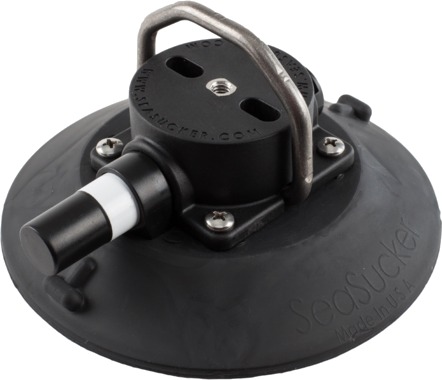

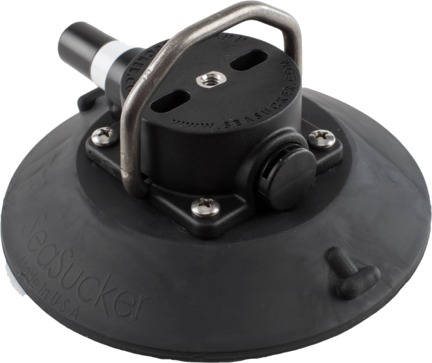

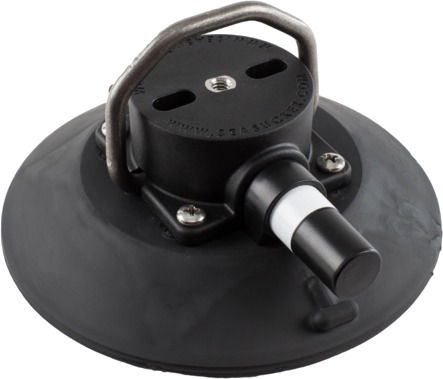

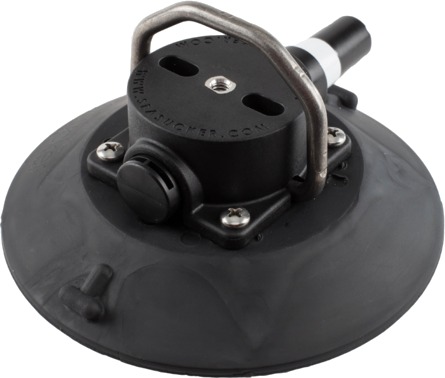

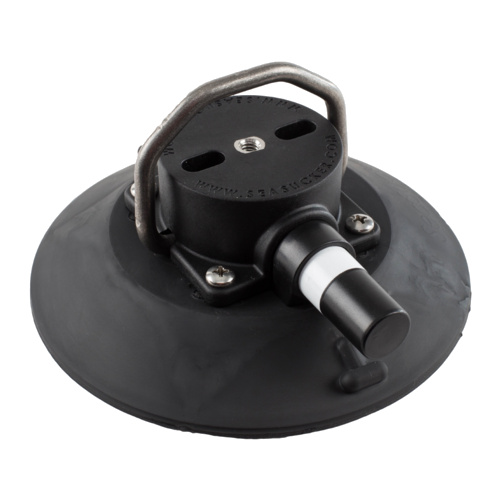

The 152 mm SeaSucker Black Vacuum Mount with Stainless Steel D-Ring

The 152 mm SeaSucker Black Vacuum Mount with 6.4mm Stainless Steel D-Ring is ideal for securing large heavy objects in your boat, car or around the home. Use it as a removable and heavy-duty tie-off point. It is incredibly strong (pull rated up to 90 kg); will attach to most non-skid or textured surfaces including painted plaster. All metal parts are marine grade stainless steel including the pump spring, for extra durability in saltwater.

SeaSucker Vacuum Mounts have a cleverly designed housing enabling you to bolt almost anything to them. The housing is compatible with RAM products, large video and DSLR photographic equipment via the centre ¼-20 stainless steel thread. Included is the SeaSucker standard 152 mm vacuum pad cover.

Attaching accessories to our Vacuum Mounts is simple by:
  • Using two bolts through the 7 mm wide  x 14 mm long slots on top of the housing; or
  • For lighter loads, use one ¼-20 bolt via the centre stainless steel threaded insert.
  • Please Note: Mounting bolts are not included. If you require these please contact us.

WHAT'S IN THE BOX?

  • 1 x 152 mm SeaSucker Black Vacuum Mount with Stainless Steel D-Ring fitted
  • 1 x 152 mm SeaSucker White Protective Cover
  • SeaSucker User Vacuum Mount Guide

We offer a 1 year, non-transferable warranty covering defects in materials and workmanship. The warranty covers the defective product only and can be returned within 1 year of the date of original purchase to Gear Campus for replacement or repair. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages.

A sales receipt must accompany warranty claims. If your product fails due to a manufacturing or workmanship defect our first option will be to repair the item, free of charge. If the product is not repairable, or if the cost of repairing the item exceeds the cost of a new one, we will replace it. If the item has failed due to a manufacturing defect, we will pay the return shipping charges.

Product Features & Benefits

  • A completely reusable tie-off solution, buy it once and have it for life
  • Save money on the cost of repairs by not filling in holes, this can get very expensive!
  • The vacuum mount has very low maintenance; all parts are replaceable and the pump is serviceable.
  • It will attach to steel, aluminium, glass, fibreglass, painted plaster and some non-skid surfaces.
  • If you change your mind you can relocate it in seconds and leave no marks behind.
  • It is multi-purpose; use it in your car, boat, caravan or around the home.
  • Attach almost anything to through the ¼-20 centre thread or via the top slots.
  • Secure your favourite video and still camera using the ¼-20 stainless steel threaded insert
Stainless Steel D-Ring Diameter:  6.4 mm
152 mm Vacuum Mount Specifications
Maximum Pull Rating:  90 kg
Load Carrying Capacity: 31.75 kg
Vacuum Mount Diameter: 152 mm
Vacuum Mount Height when attached: 46 mm
Vacuum Mount Height when not in use: 56 mm
Housing Top Diameter:  60 mm
Housing Height Only: 33 mm
Housing Top Slot Width: 7 mm
Housing Top Slot Length: 14 mm
Housing Centre Thread:  ¼-20
SKU VM1014B
Barcode # 810046211083
Brand SeaSucker
Shipping Weight 1.2000kg
Shipping Width 0.230m
Shipping Height 0.080m
Shipping Length 0.240m
Unit Of Measure ea
