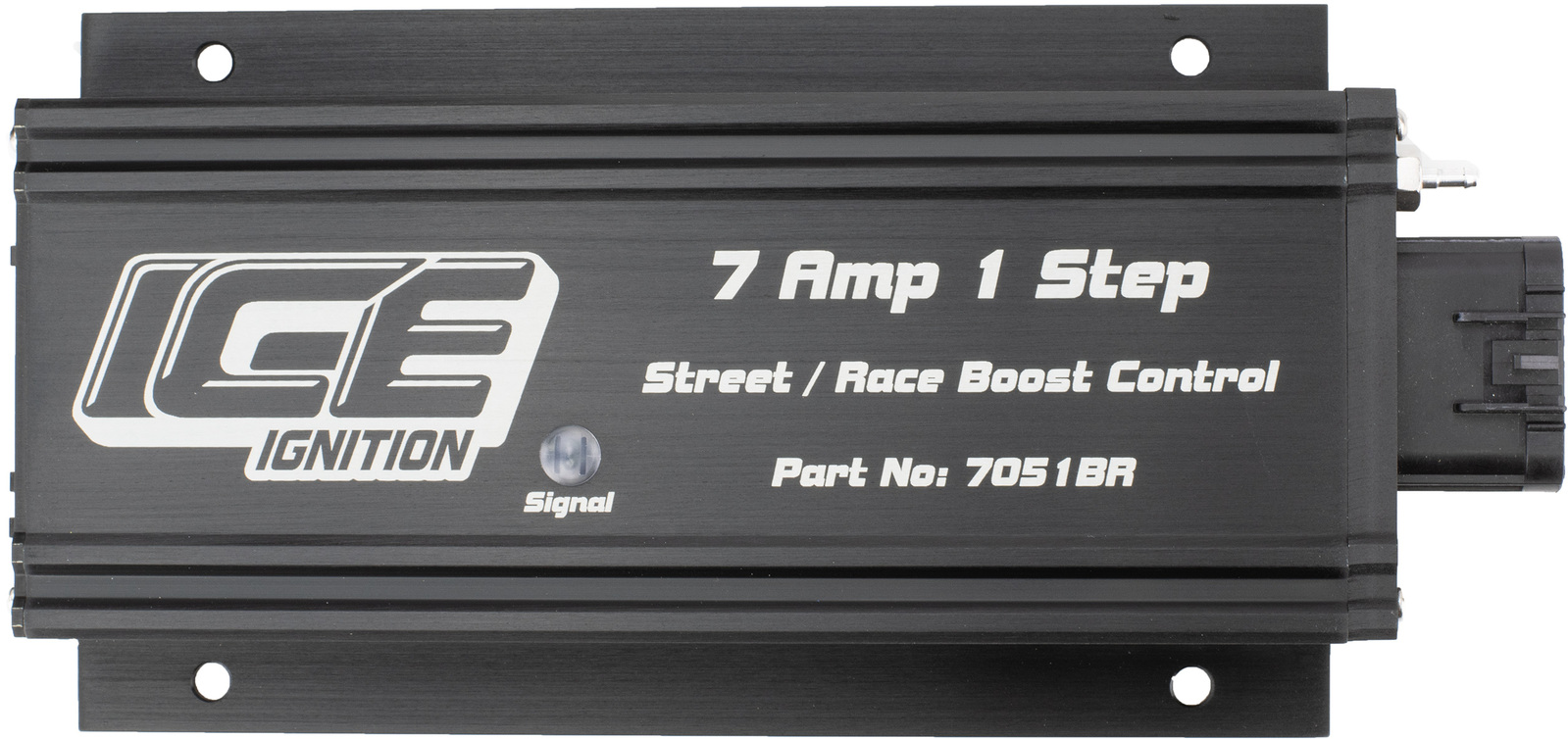

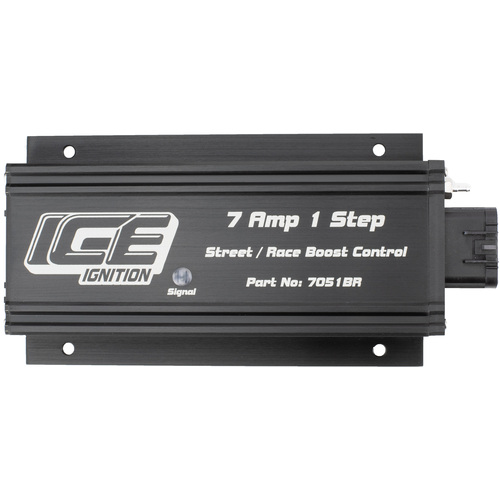

ICE Ignition 7 AMP 1 STEP Boost Retard Control Box

   ICE Ignition 7 AMP Street Series Control Box Rear View

PLEASE NOTE: The ICE Igntion 7061BR Controller requires an appropriate ICE Igntion Distributor. It is NOT possible to use another distributor. All ICE Ignition Distributors have a Field Effect Sensor installed in the distributor. Without this sensor, the ICE Ignition 7061BR controller would not work. We sell the ICE Ignition Distributors individually for most 6 Cyl and V8 engines on eBay.

The ICE Ignition 7061BR Street/Race Series Control Box features the following.

  1. 10 Pre-programmed Boost Retard curves - The push-button selectable curves enable fine boost control through timing retardation. With the ICE Ignition 7061BR, you can vary timing from 0.1 to 1.0 degrees of timing per pound of boost. The MAXIMUM degrees of boost retard possible is 22 degrees. It eliminates the need for distributor re-graphing when engine upgrades are introduced. It allows you to adjust total timing for changes in fuel quality.
  2. Manifold Absolute Pressure (MAP) Sensor - The MAP sensor detects when your engine is generating boost and will automatically retard timing depending on the amount of boost detected and the "Retard Select" position used.
  3. Single Rev Limiter (1-STEP) - A push-button selectable rev limiter adjustable in 100 RPM increments. It provides great insurance against accidentally over-revving your engine by cutting out the spark.

The ICE Ignition controller must be mounted inside your car. Do not mount it inside your engine bay. ICE Ignition strongly recommends the use of NON-RESISTOR Spark Plugs.



Key Features

  • 10 Predefined Boost Timing Curves - Selectable from the controller
  • Rev Limiter - For Over-Rev protection. Selectable from the controller
  • MAP Sensor - Detects level of boost and automatically retards timing

WHAT'S IN THE BOX?

The ICE Ignition 7061BR Controller includes the following

  • 1 x ICE Ignition 7061BR Controller
  • 1 x ICE Ignition 2-metre Wiring Loom
  • 1 x ICE Ignition Manual
SKU 7062BR
Barcode # 2000000001814
Brand ICE Ignition
Shipping Weight 3.5000kg
Shipping Width 0.500m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.002500000m3
Unit Of Measure ea
