7 Amp 1 Step Controller; 16 Curves, Vac Advance & 1 Rev Limiter (7061MV)

ICE Ignition Street / Race Control Box

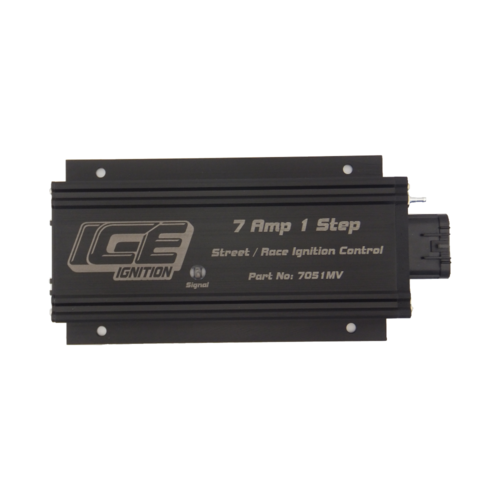

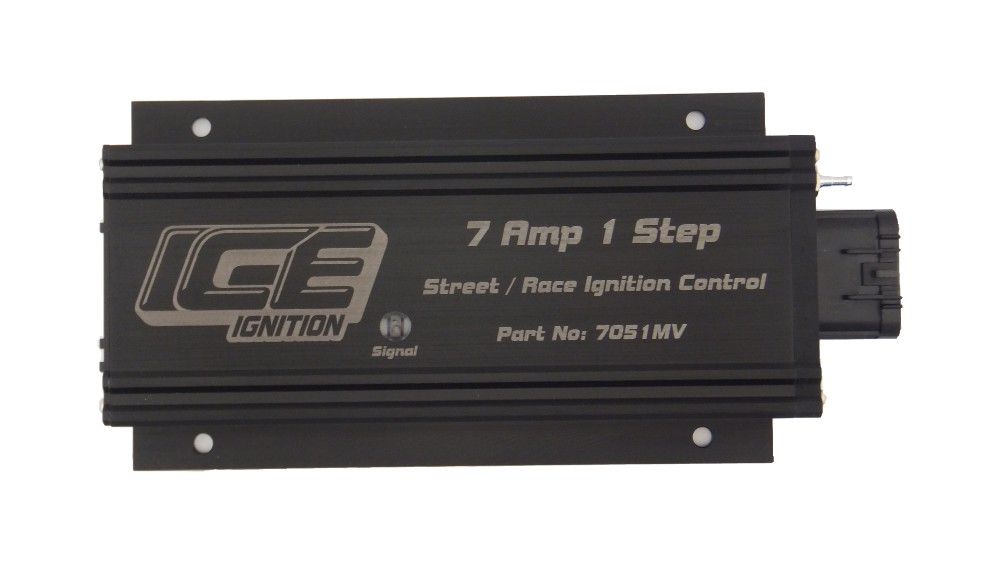

7061MV - ICE Ignition 7 AMP Street /Race Series Controller

PLEASE NOTE: The ICE Igntion 7061MV Controller requires an appropriate ICE Igntion Distributor. It is NOT possible to use another distributor. All ICE Ignition Distributors have a Field Effect Sensor installed in the distributor. Without this sensor, the ICE Ignition 7061MV controller would not work. We sell the ICE Ignition Distributors individually for most 6 Cyl and V8 engines on eBay.

The ICE Ignition 7 AMP Street Series Controller is ideal for most street-driven mild engines with a carburettor and no forced induction or nitrous. It has a push-button selectable timing advance function advancing the engine timing between a predefined rev range. The 16 timing curves provide great flexibility to accommodate various engine combinations. It also has a built-in vacuum advance Manifold Absolute Pressure (MAP Sensor) that instantly detects light throttle conditions and advances the timing to deliver improved fuel economy. This controller is well suited to engines up to 450 HP. A push-button adjustable rev limiter is also included to protect the engine from over-revving.

Key Features

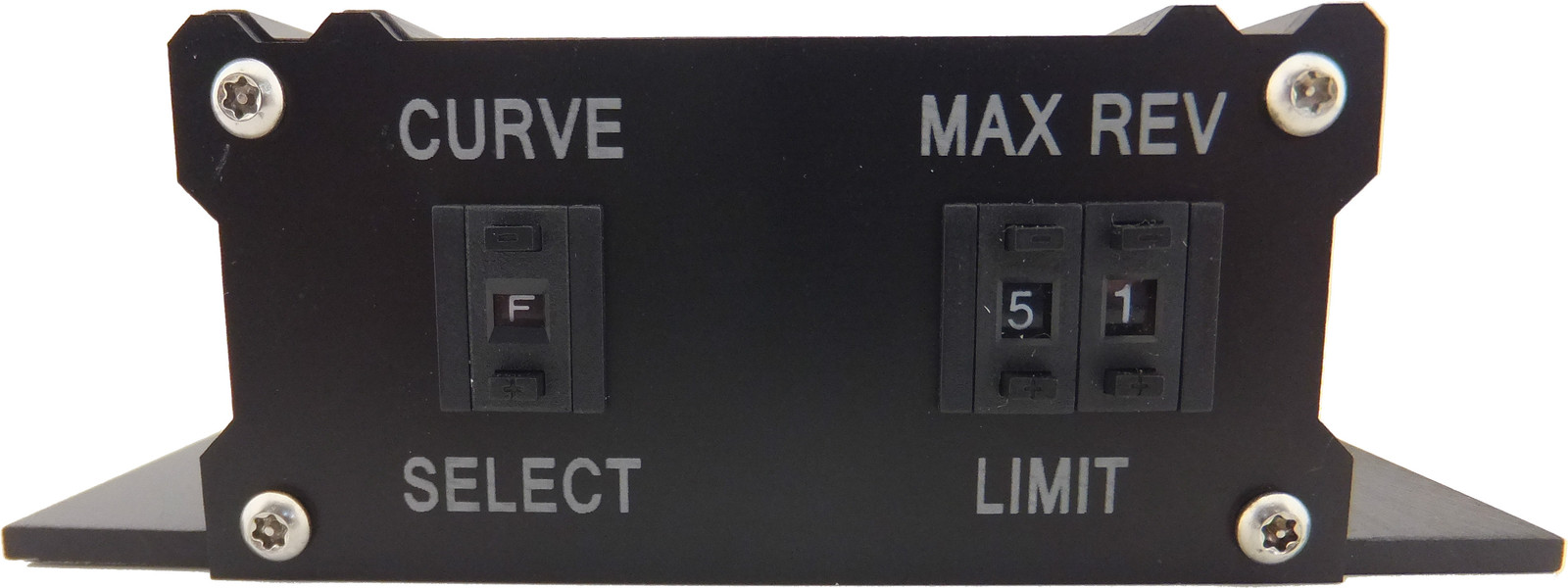

16 Predefined Timing Curves - Selectable from the controller
Electronic Vacuum Advance - Advances timing by up to 10 degrees whilst cruising and instantly removes the advance under hard throttle
Rev Limiter - For Over-Rev protection. Selectable from the controller

WHAT'S IN THE BOX?

The ICE Ignition 7061MV Controller includes the following

1 x ICE Ignition 7061MV Controller
1 x ICE Ignition 2-metre Wiring Loom
1 x ICE Ignition Manual

(7061MV)

SKU	7061MV
Barcode #	2000000001791
Brand	ICE Ignition
Shipping Weight	3.5000kg
Shipping Width	0.500m
Shipping Height	0.050m
Shipping Length	0.100m
Shipping Cubic	0.002500000m3
Unit Of Measure	ea
