7 AMP 1 STEP DELUXE Ignition Kit - Chrysler Small Block 273ci - 360ci, N.A.

This ICE Ignition kit is for Chrysler Small Block 273ci to 360ci V8 engines running a carburettor without forced induction or nitrous. It is ideal for most street and race cars and can also be used with electronic carburettors that control "Air and Fuel" only.

The ICE Ignition "Digital Inductive Spark" technology delivers the most powerful spark and longest duration of any ignition system. More spark means greater tuneability, which ultimately leads to improved performance.

ICE IGNITION DELUXE KIT - Includes ICE 2316 Voltage Booster

Included with our ICE Ignition Kits to suit Carburettored engines is the ICE Ignition 2316 Voltage Booster. It is a simple "Plug & Play" device capable of delivering 16 volts regardless of the quality of your car's electrical system. Just plug it into the ICE Ignition wiring loom, and the voltage booster will do the rest.

The ICE Ignition, 7 AMP DELUXE Street Kit with ICE 2316 Voltage Booster, ensures 16 volts are supplied to the ignition system. With 16 volts on tap at all times, this also ensures the broadest tuning window for your engine. The ICE 2316 Voltage Booster ensures maximum spark is delivered to the spark plug while opening up more tuning options via the ICE Ignition 7 AMP Series Control Box.

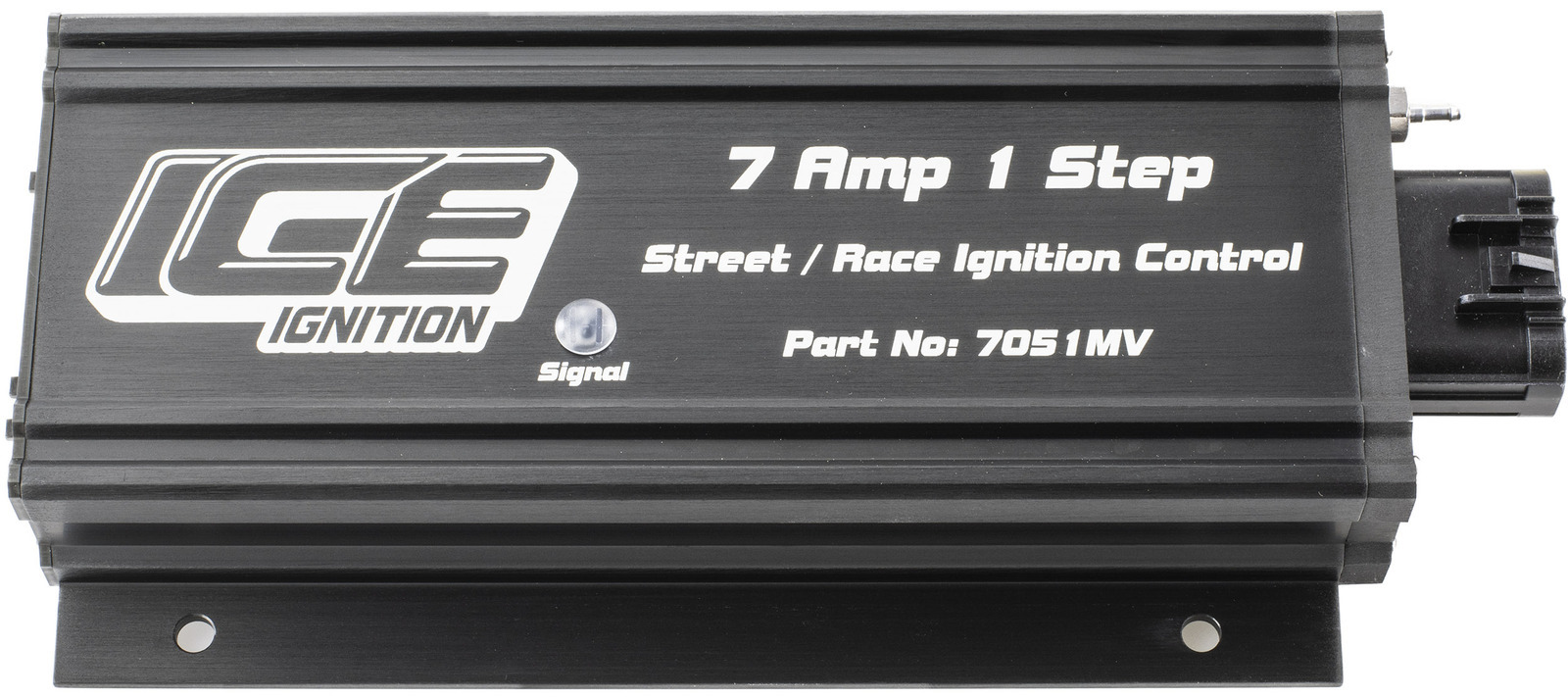

The ALL NEW ICE Ignition 7 AMP 1-STEP Control Box

This kit's heart is the ICE Ignition 7061MV Street / Race Series Ignition Control Box. This controller has the following features.

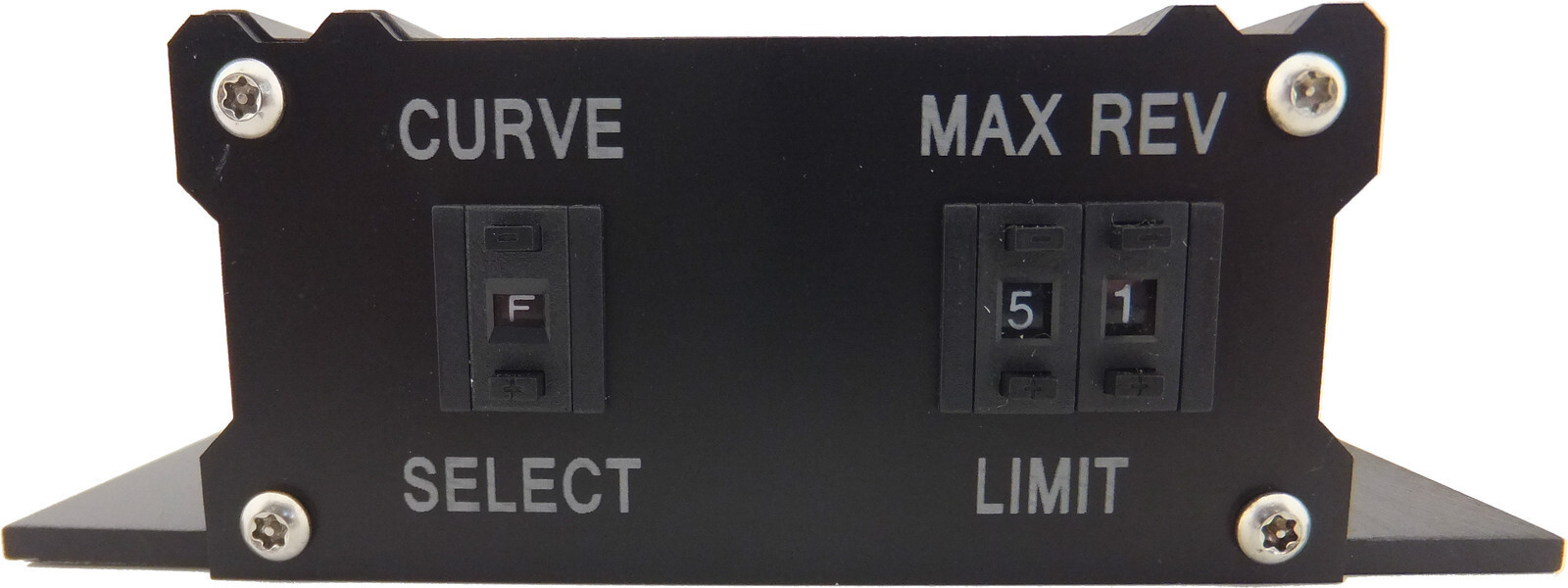

1. 16 pre-programmed ignition curves—The push-button selectable curves enable total timing adjustment in real time. This eliminates the need for distributor re-graphing when engine upgrades are introduced and allows you to adjust the total timing for changes in fuel quality.

2. Vacuum Advance Manifold Absolute Pressure (MAP) Sensor—The MAP sensor detects when your engine is cruising and instantly advances timing to deliver improved fuel efficiency. Although the sensor is optional, it will not impact the ignition's ability to deliver the maximum spark.

3. Single Rev Limiter (1 STEP) - A push-button selectable rev limiter that can be adjusted in 100 RPM increments. It provides great insurance against accidentally over-revving your engine by cutting out the spark at the pre-determined limit.

The ICE Ignition controller must be mounted inside your car, not in your engine bay. ICE Ignition strongly recommends the use of non-resistor Spark Plugs.

Why choose the ICE Ignition 7061MV Kit?

• The "Digital Inductive Spark" technology delivers the most powerful spark and longest duration of any ignition system.

• It's ideal for most street-driven cars and provides great tunability.

• Push-button selectable timing makes distributor re-graphs obsolete.

• Push-Button selectable Rev Limiter protects your engine from being accidentally overrevved.

• It can also be used with electronic carburettors that control "Air & Fuel" only.

• More spark means greater tuneability, which leads to improved performance.

• Three-Year Australian Warranty, made in Melbourne

Our Value-Add Service

Need help establishing a base tune for your engine? We can help with engine timing (i.e., base timing and curve selection), spark plug selection, and spark plug gap for all customers who purchase an ICE Ignition kit through Gear Campus. Please get in touch with us upon ordering your ICE Ignition kit.

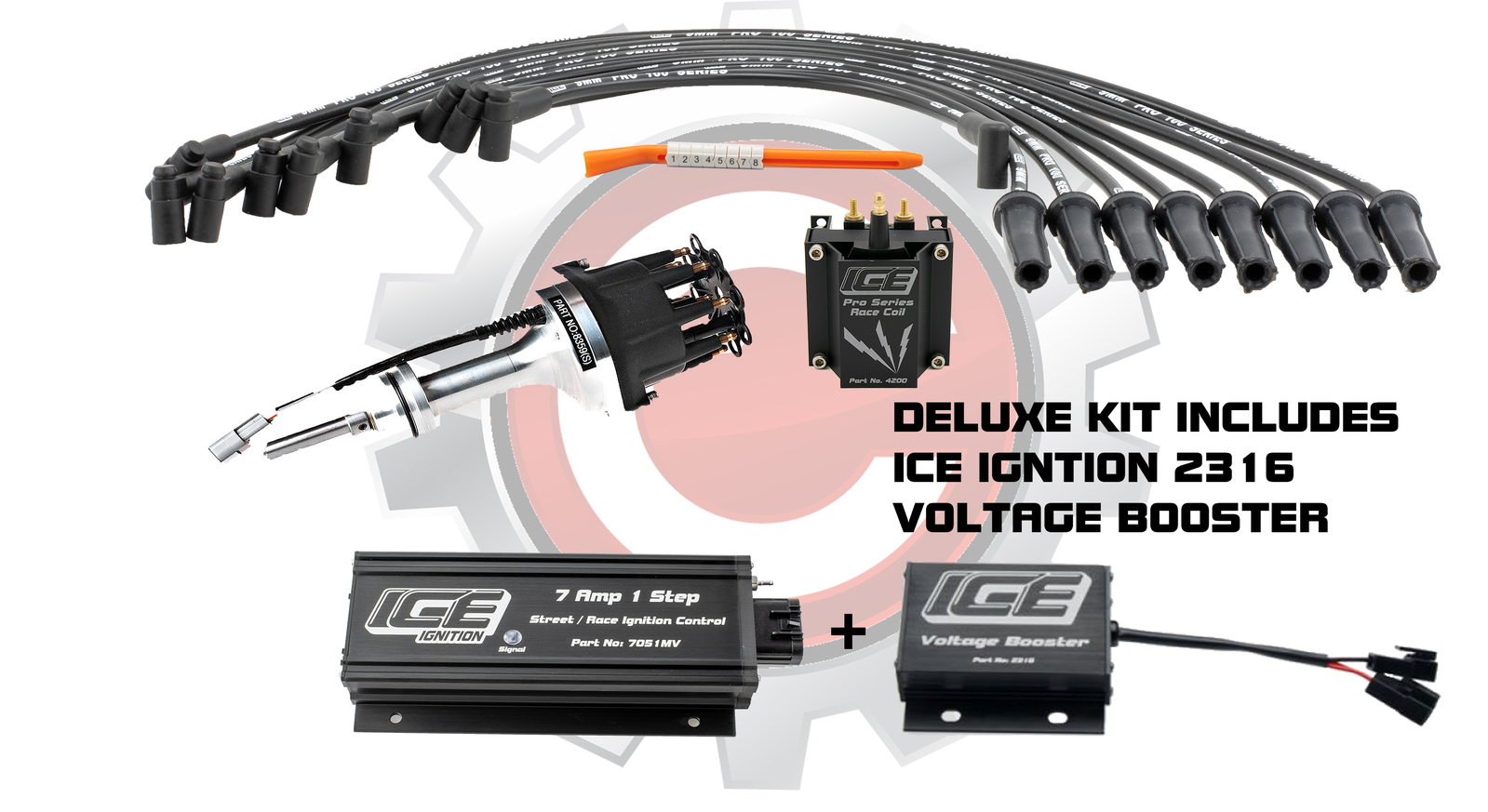

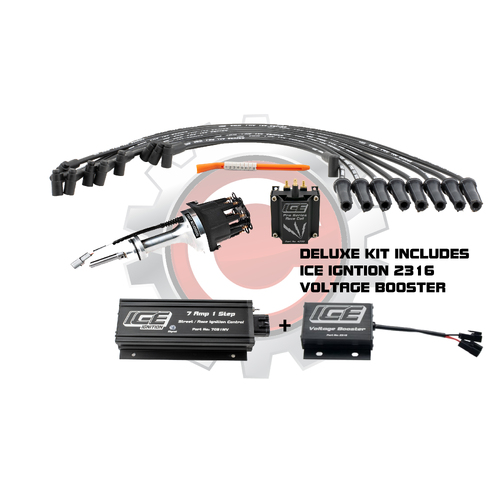

What's in the ICE Ignition Kit?

This ignition kit includes the following

1. 7061MV Controller - 16 pre-defined timing curves, Manifold Absolute Pressure (MAP) sensor & a push-button selectable rev limiter.

2. 2316 Voltage Booster - Ensures 16 Volts are being delivered to the ignition system at all times

3. ICE Ignition Billet Distributor - The ICE Ignition Distributor uses a “Hall Effect Sensor”  to communicate with the ICE Control Box. It will not work unless it's connected to an ICE Control Box. Please select the following options:

   • SMALL-CAP Distributor—A SMALL (4" diameter) CAP Distributor is supplied by default

   • If you prefer a LARGE-CAP distributor (5" Diam.), please include the following in the Customer Comments section during checkout: "Please supply this kit with a LARGE-CAP distributor. "This is a NO-COST option.

4. ICE Ignition Pro 100 9 mm Leads / Plug Wires - Please select the following "No Cost" Options:

   • ICE Ignition 9CHR805 Pro 100 9 mm finished lead set—The fitment is AROUND THE VALVE COVERS. If a different lead fitment is required, please call us.

   • ICE Ignition 9MMSTU Pro 100 9 mm DIY set  - A partially finished lead set with the spark plug end terminated and the boots fitted. The leads are cut extra-long.  Lead crimpers are required, they are available as an option.

5. ICE Ignition 4200 Pro Series Race Coil—With twice the energy of a standard coil, the ICE Ignition 4200 Coil is ideal for naturally aspirated engines.

6. Wiring Loom—The ICE Ignition wiring loom is approximately 2 metres long and easy to install. The instructions detail what is required to connect the ICE Ignition system to your car.
