7 AMP 1 STEP DELUXE Ignition Kit - Chrysler Slant 6 (170ci to 225ci), N.A.

This ICE Ignition kit suits the Chrysler Slant 6 (170ci to 225ci) engines fitted with:

• Carburettor(s) - including electronic carburettor(s).

• No forced induction or nitrous.

This ICE Ignition kit is ideal for most street and race cars. The Rev Limiter provides insurance against accidentally over-revving your engine. This kit can also be used with electronic carburettors that control "Air and fuel" only. The Digital Inductive Spark technology delivers the most powerful spark and longest duration of any ignition system on the market. More spark means greater tuneability, which leads to improved performance.

ICE IGNITION DELUXE KIT - Includes ICE 2316 Voltage Booster

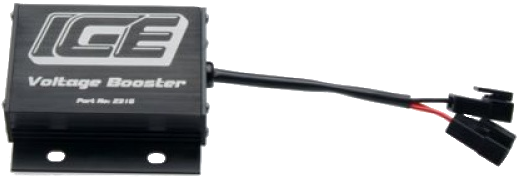

Included with our ICE Ignition Kits to suit Carburettored engines is the ICE Ignition 2316 Voltage Booster. Capable of delivering 16 volts regardless of the quality of your car's electrical system, the ICE Ignition 2316 Voltage Booster is a simple "Plug & Play" device. Just plug it into the ICE Ignition wiring loom, and the voltage booster will do the rest.

The ICE Ignition, 7 AMP DELUXE Street Kit with ICE 2316 Voltage Booster, ensures 16 volts are being supplied to the ignition system. With 16 volts on tap at all times, this also ensures the broadest tuning window for your engine. The ICE 2316 Voltage Booster ensures maximum spark is being delivered to the spark plug whilst opening up more tuning options via the ICE Ignition 7 AMP Series Control Box.

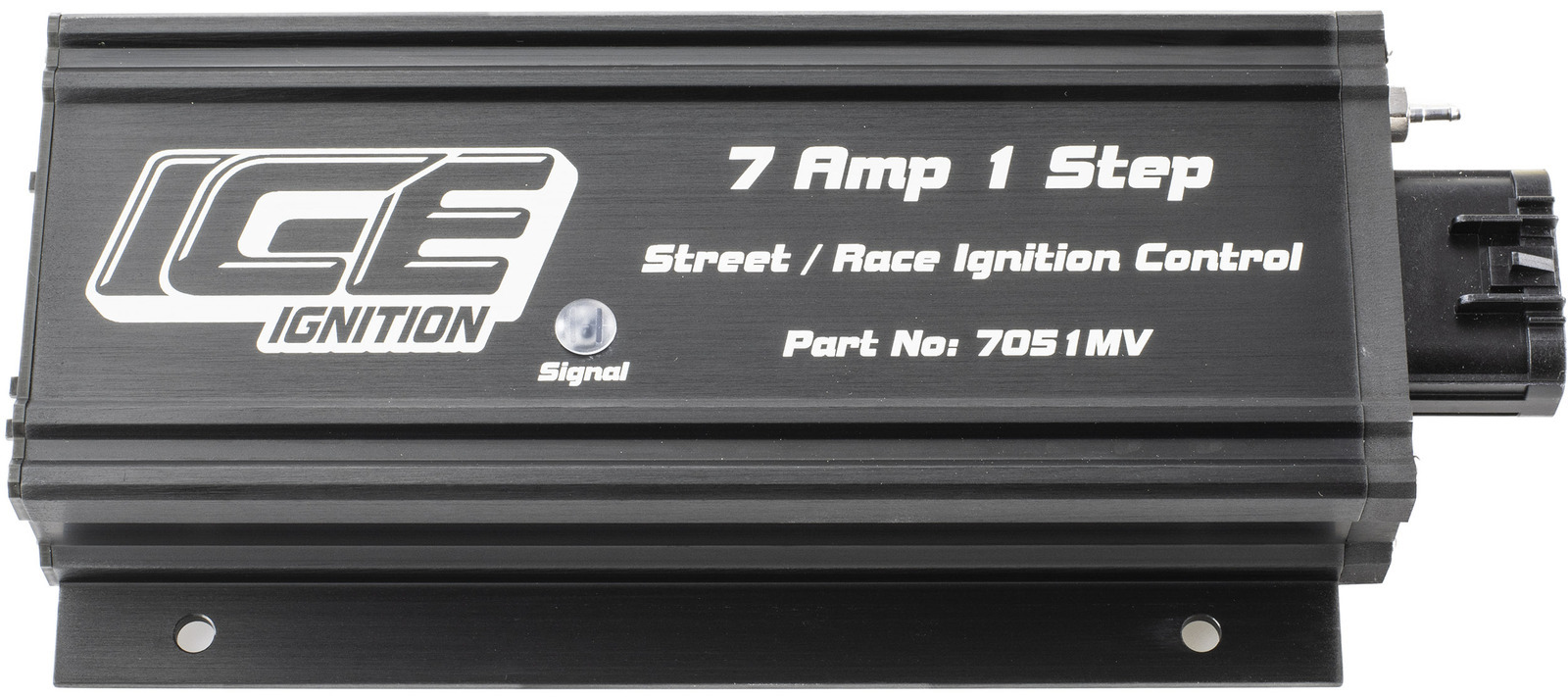

The ICE Ignition 7 AMP 1 STEP Control Box

The ICE Ignition 7061MV Street Series Control Box features the following.

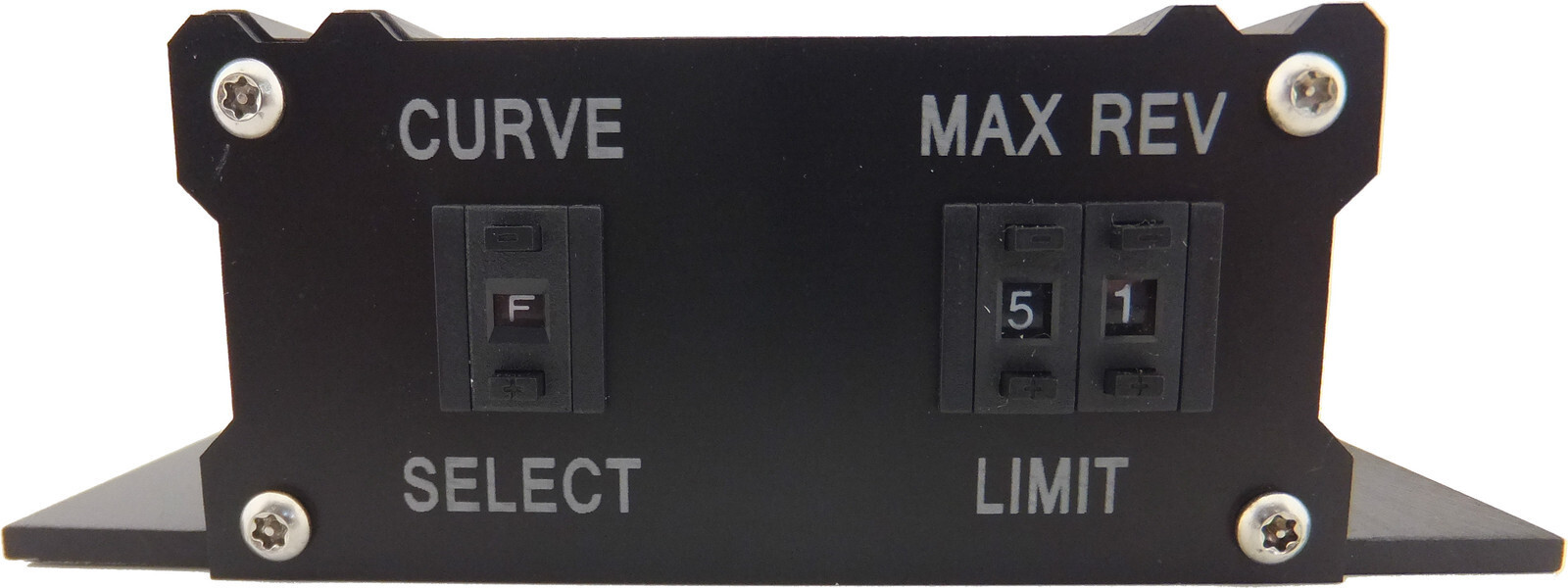

• 16 Pre-programmed ignition curves - 16 push-button selectable ignition curves enable total timing adjustment in real-time. It features 8 FAST Timing Advance Curves and 8 SLOW Timing Advance Curves

  • It eliminates the need for distributor re-graphing when engine upgrades are introduced.

  • It also enables total timing adjustment in real-time for changes in fuel quality.

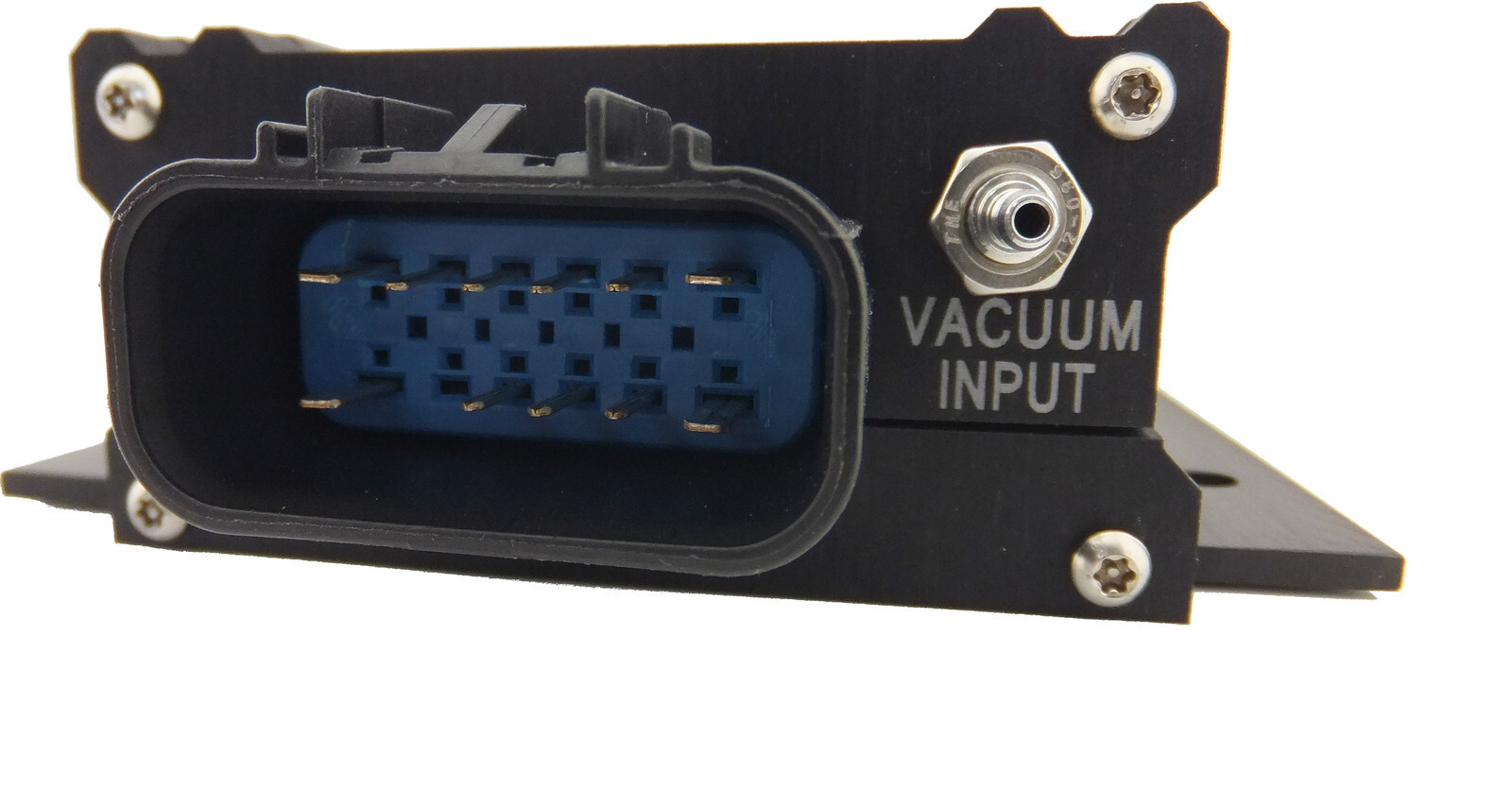

• Vacuum Advance Manifold Absolute Pressure (MAP) Sensor—This sensor advances timing up to 10 degrees under cruise conditions, allowing the engine to run smoothly and improving fuel efficiency. Although the MAP sensor is optional, it won't impact ignition performance if not used.

• Single Rev Limiter (1-STEP) - A push-button selectable rev limiter adjustable in 100 RPM increments. It provides excellent insurance against accidentally over-revving your engine by cutting out the spark.

The controller must be mounted inside your car, NOT your engine bay. ICE Ignition recommends the use of NON-RESISTOR Spark Plugs.

Why choose the ICE Ignition 7061MV Kit?

• The "Digital Inductive Spark" technology delivers the most powerful spark and longest duration of any ignition system.

• It's ideal for most street-driven cars and provides excellent tunability.

• Push-button selectable timing makes distributor re-graphs obsolete.

• Push-Button selectable Rev Limiter protects your engine from being accidentally overrevved.

• It can also be used with electronic carburettors that control "Air & Fuel" only.

• More spark means greater tuneability, which leads to improved performance.

• Three-Year Australian Warranty, made in Melbourne

​​​​Our Value-Add Service

Need help establishing a base tune for your engine? We can help with engine timing (i.e., base timing and curve selection), spark plug selection, and spark plug gap for all customers who purchase an ICE Ignition kit through Gear Campus. Please contact us via eBay Message when ordering your ICE Ignition kit.

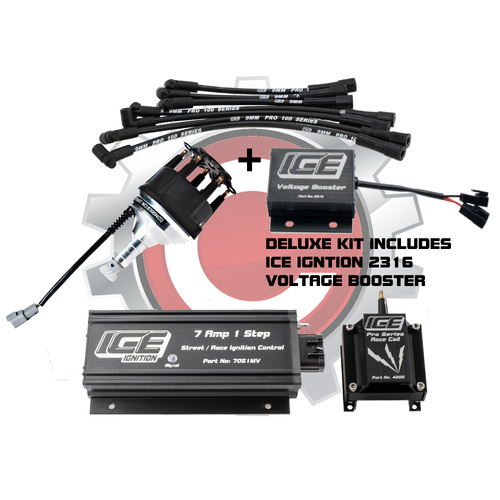

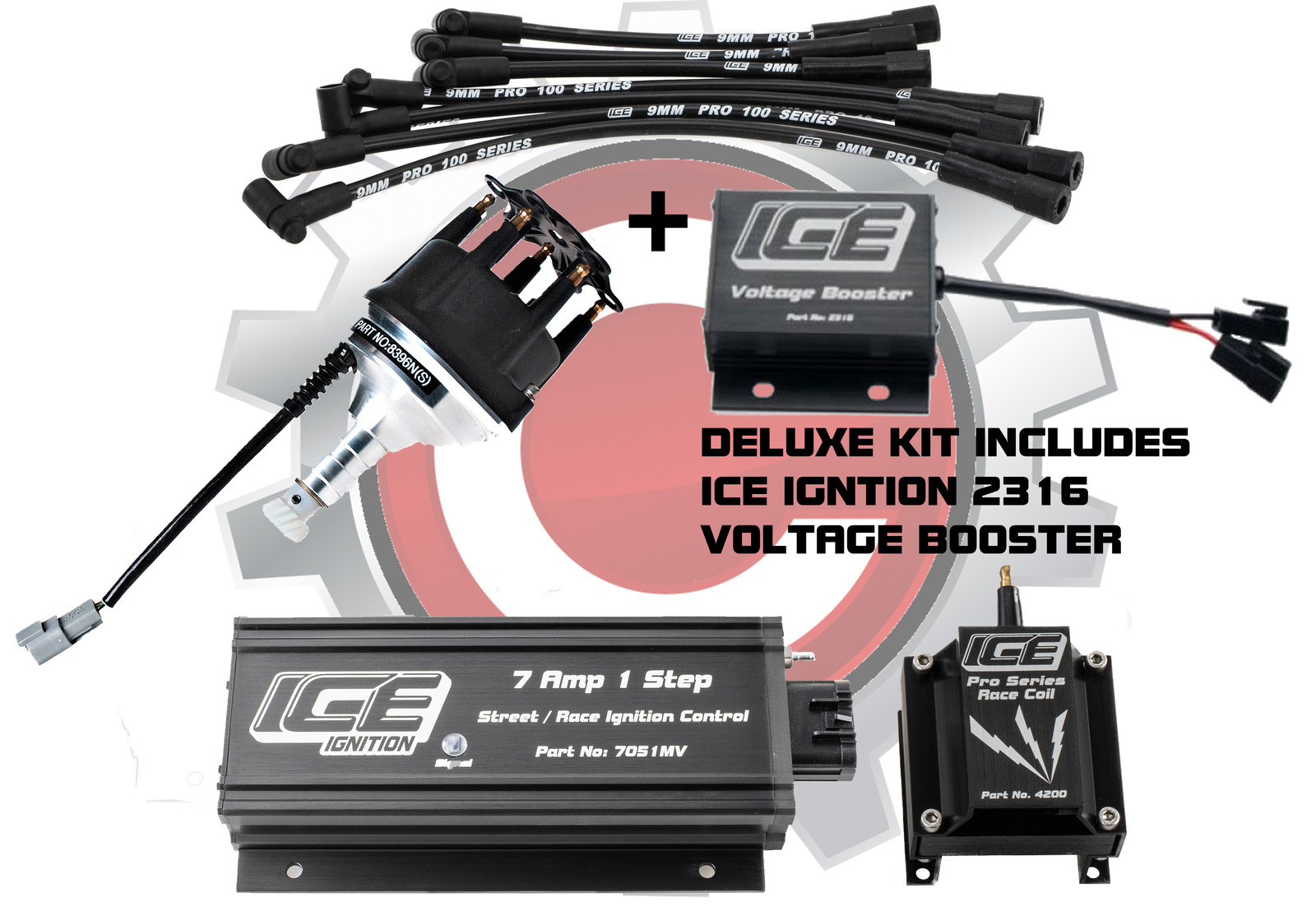

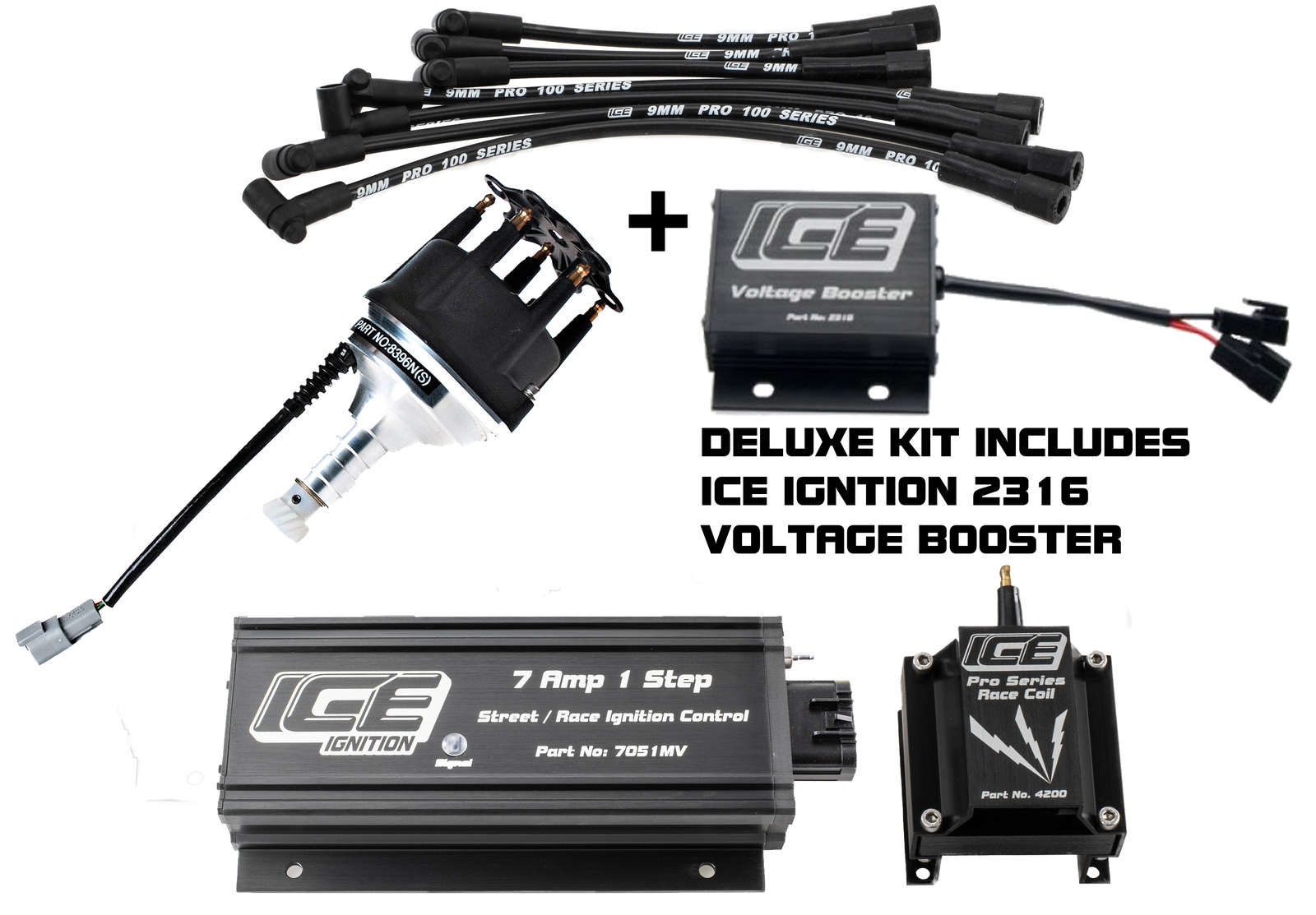

What's in the ICE Ignition Kit?

This ignition kit includes the following

1. 7061MV Controller - 16 pre-defined timing curves, Manifold Absolute Pressure (MAP) sensor & a push-button selectable rev limiter.

2. 2316 Voltage Booster - Ensures 16 Volts are being delivered to the ignition system at all times

3. ICE Ignition SMALL CAP (4" Diameter) Billet Distributor -  It's made from 6061 aircraft-grade aluminium and uses a “Hall Effect Sensor” to communicate with the Control Box.

   • A NYLON gear is fitted to the distributor. ​

4. ICE Ignition 9CHR611 Pro 100 9 mm leads (Black)—This is a "Plug & Play" lead set with STRAIGHT Spark Plug Boots. Lead fitment is  AS PER FACTORY FITMENT. Please contact us via eBay Message if a different lead set is required.

5. The ICE Ignition 4200 Pro Series Race Coil has twice the energy of a standard coil and is ideal for naturally aspirated engines.​

6. Wiring Loom - It's approx. It is two metres long and easy to install.
