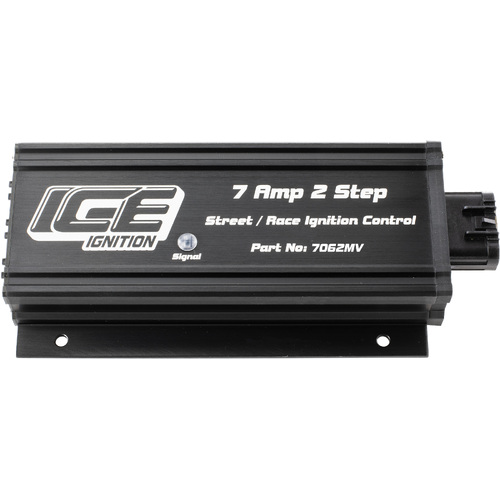

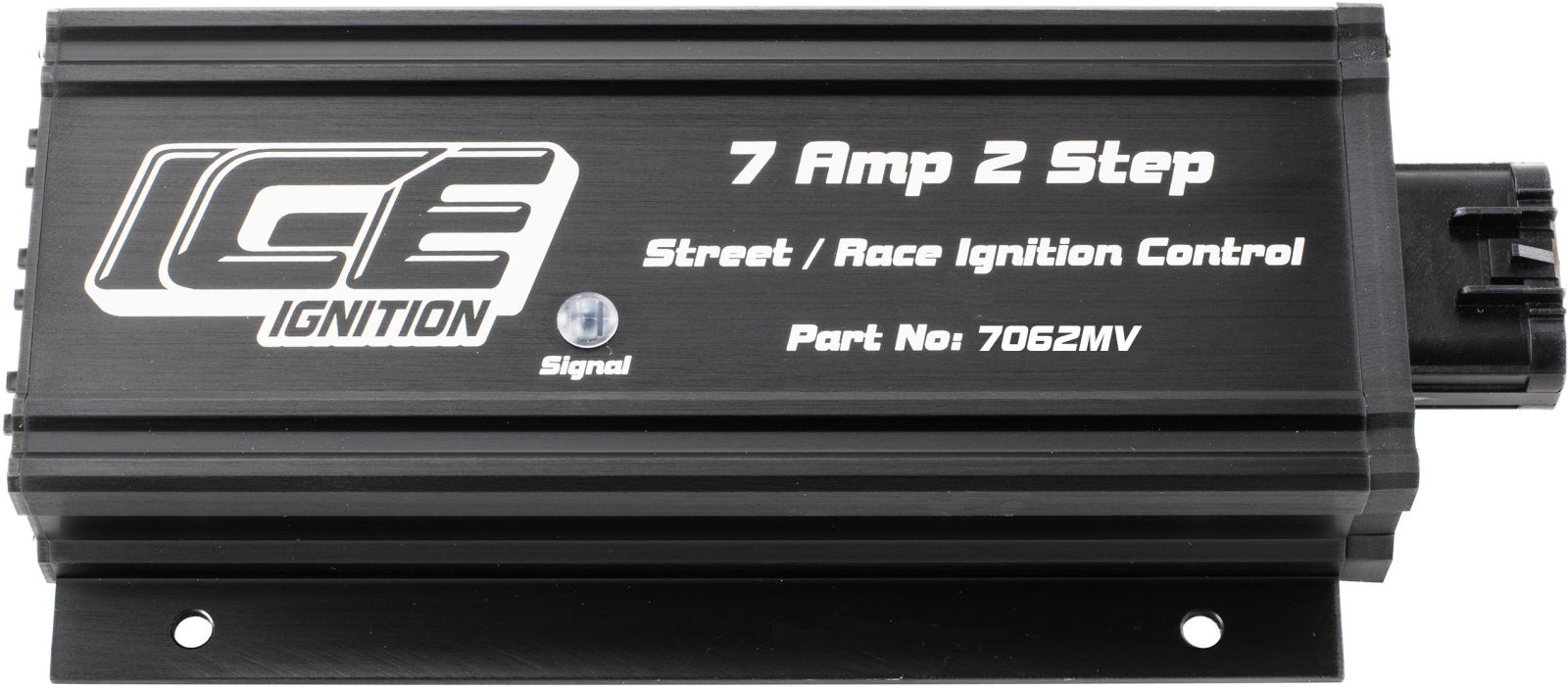

7062MV - ICE Ignition 7 AMP  Naturally Aspirated Race Series Controller

PLEASE NOTE: The ICE Igntion 7062MV Controller requires an appropriate ICE Igntion Distributor. It is NOT possible to use another distributor. All ICE Ignition Distributors have a Field Effect Sensor installed in the distributor. Without this sensor, the ICE Ignition 7062MV controller would not work. We sell the ICE Ignition Distributors individually for most 6 Cyl and V8 engines on eBay.

The ICE Ignition 7 AMP N.A. Race Series Controller is ideal for street-driven engines and race applications with a carburettor and no forced induction or nitrous. It has a push-button selectable timing advance function advancing the engine timing between a predefined rev range. It has 16 timing curves to provide great flexibility and accommodates a wide range of engine combinations. This controller is well suited to engines to all naturally aspirated engines.

The ICE Ignition 7062MV Controller also has two rev limiters. The 2-step limiter will only take precedence when 12 volts is applied to the white wire from the wiring loom. This is ideal as a launch control, especially when combined with a trans-brake. It can also be used as a "Valet Mode". Install a hidden switch on your car, then activate it when required. It is excellent if you are handing your car over to someone else and are concerned they may get aggressive with the engine. The MAX RPM Limiter is permanently armed and prevents the engine from revving by cutting out the spark at the pre-set limit.

Key Features

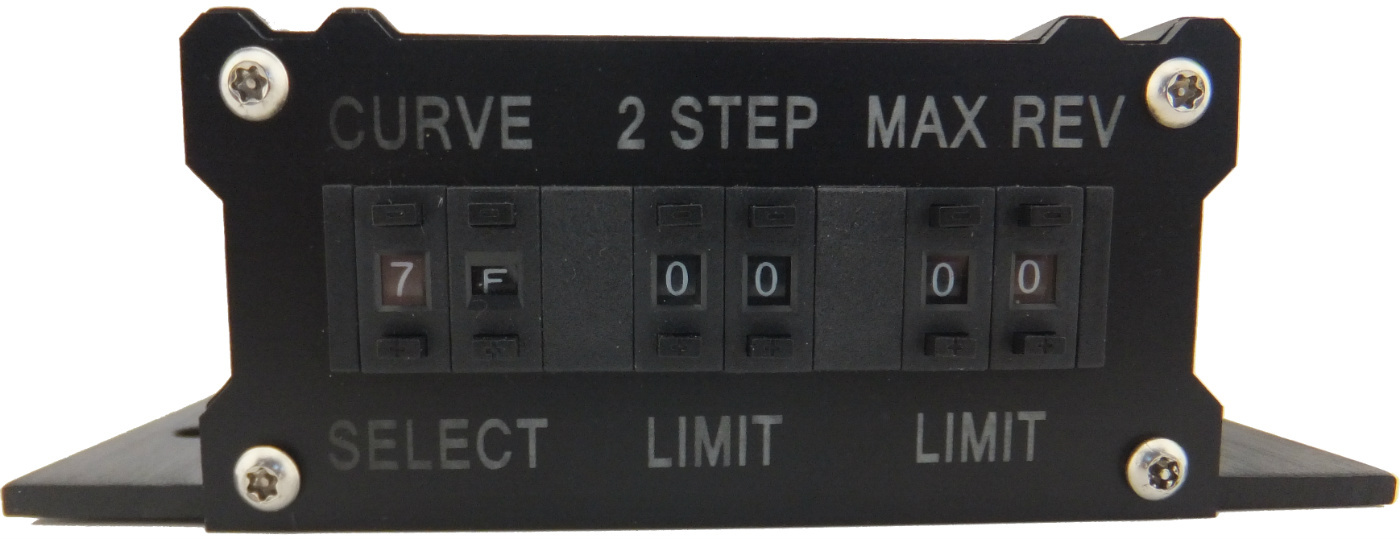

• 16 Predefined Timing Curves - Selectable from the controller
• Vacuum Advance - Electronic Vacuum Advance that will advance timing by up to 10 degrees whilst cruising
• Rev Limiter - For Over-Rev protection. Selectable from the controller
• The 2-Step - A second rev limiter that arms when 12 volts is applied to the kit's wiring loom. The 2-step is also fully controllable from the controller.

WHAT'S IN THE BOX?

The ICE Ignition 7062MV Controller includes the following

• 1 x ICE Ignition 7062MV Controller
• 1 x ICE Ignition 2-metre Wiring Loom
• 1 x ICE Ignition Manual
