7 AMP 2 STEP DELUXE Ignition Kit -  Chrysler Small Block V8 (273ci to 360ci), N.A.

This ICE Ignition kit suits the Chrysler SB V8 (273ci to 360ci) engines running a carburettor with no forced induction or nitrous. It is the ideal kit for most street and race engines.

The ICE Ignition "Digital Inductive Spark" technology delivers the most powerful spark and longest duration of any ignition system. More spark means greater tuneability, which ultimately leads to improved performance.

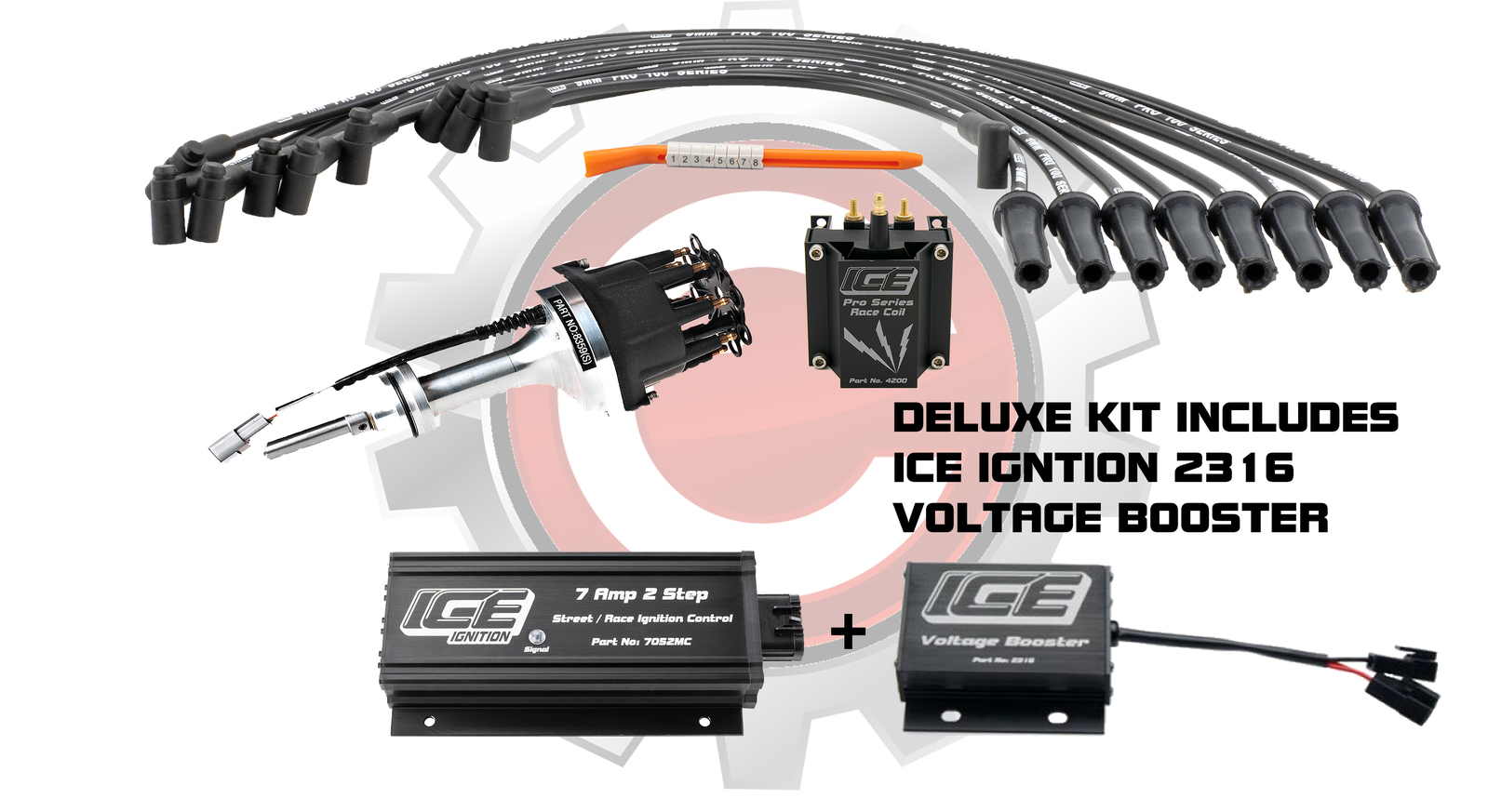

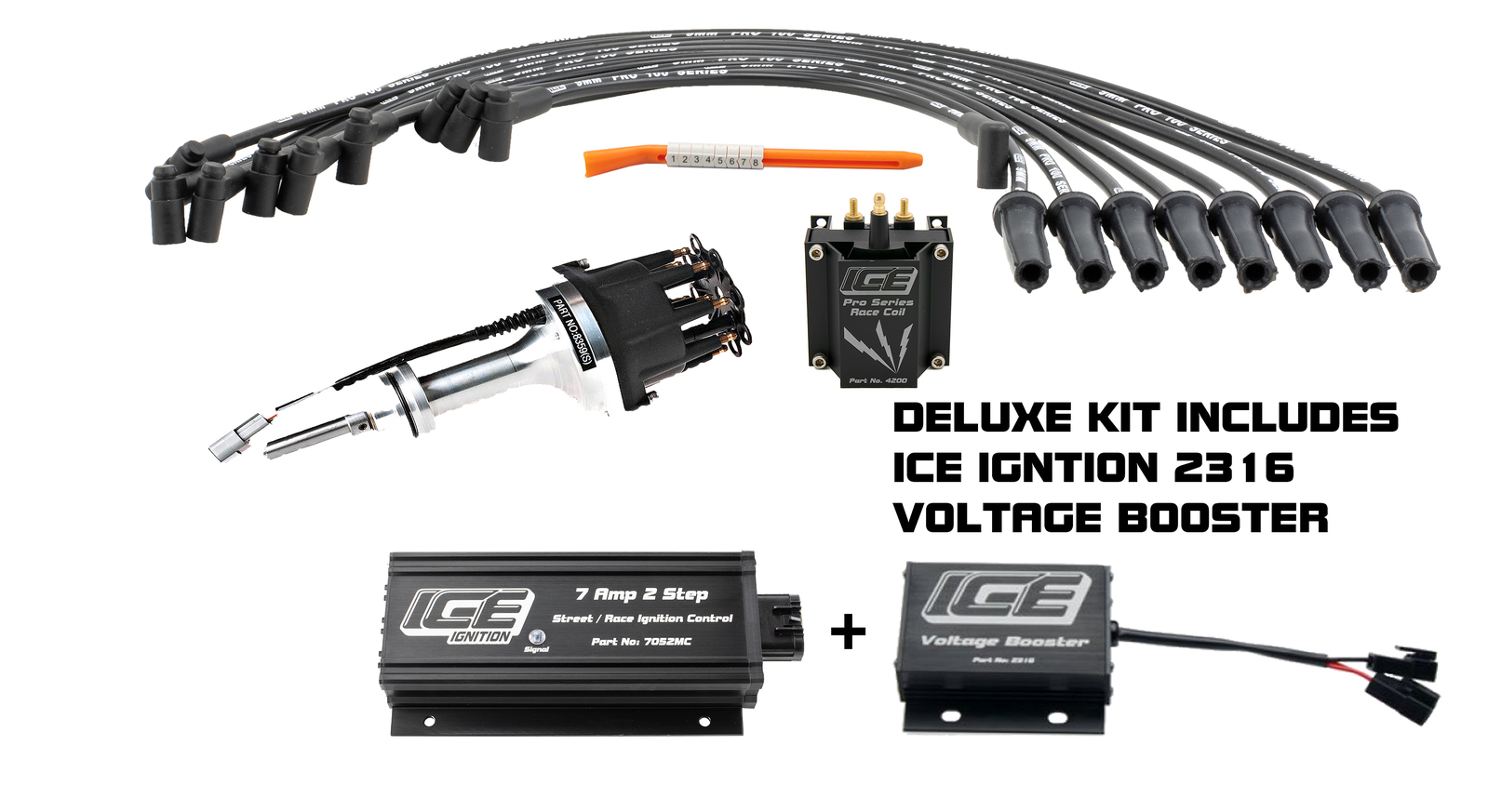

ICE IGNITION DELUXE KIT - Includes ICE 2316 Voltage Booster

Included with our ICE Ignition Kits to suit Carburettored engines is the ICE Ignition 2316 Voltage Booster. Capable of delivering 16 volts regardless of the quality of your car's electrical system, the ICE Ignition 2316 Voltage Booster is a simple "Plug & Play" device. Just plug it into the ICE Ignition wiring loom, and the voltage booster will do the rest.

The ICE Ignition 7 AMP DELUXE Street Kit with ICE 2316 Voltage Booster ensures 16 volts are supplied to the ignition system. With 16 volts on tap at all times, this also ensures the broadest tuning window for your engine. The ICE 2316 Voltage Booster ensures maximum spark is being delivered to the spark plug while opening up more tuning options via the ICE Ignition 7 AMP Series Control Box.

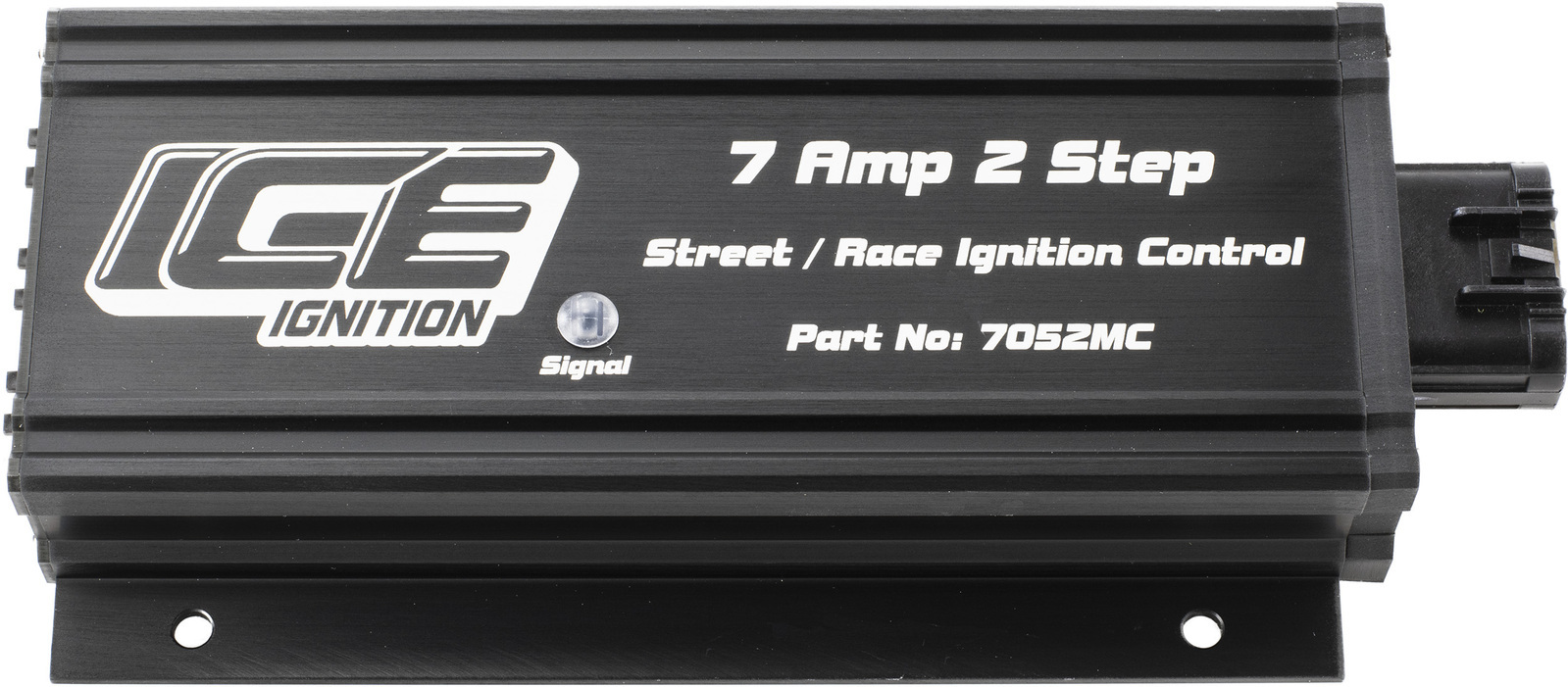

The ICE Ignition 7 AMP 2-STEP Control Box

The ICE Ignition 7062MC Street / Race Series Control Box features the following.

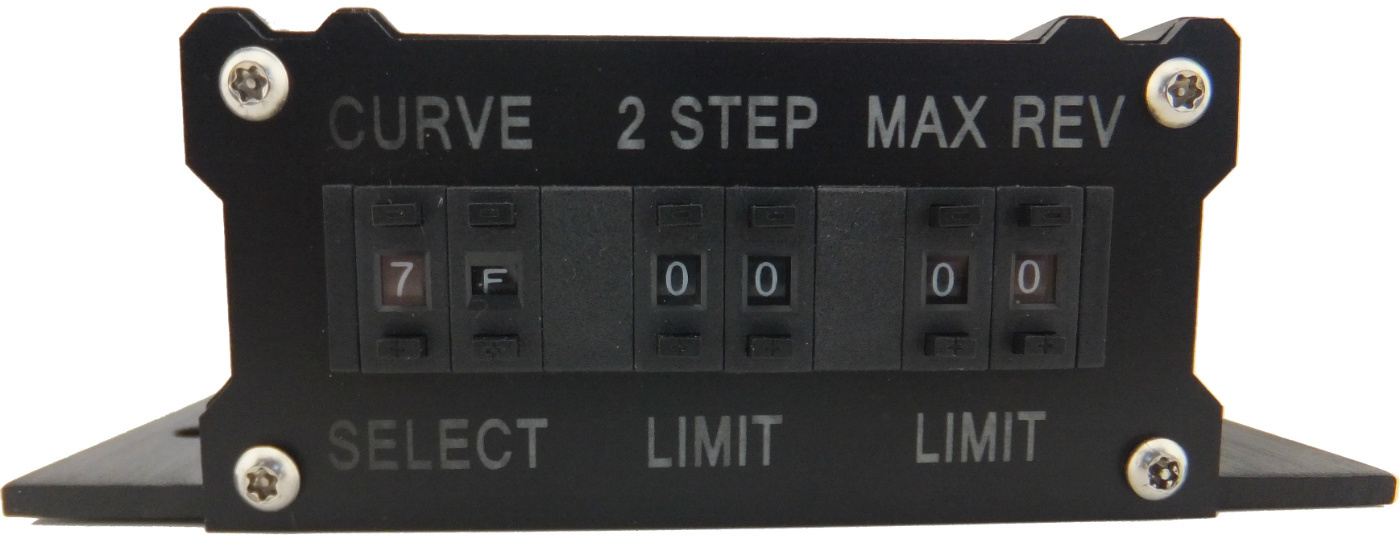

1. 128 Pre-programmed ignition curves - 128 push-button selectable curves enable real-time timing adjustment. It eliminates the need for distributor re-graphing when engine upgrades are introduced. It allows you to adjust the timing for changes in fuel quality. The tuning potential is almost endless, with 128 timing curves at your disposal.

2. MAX REV Limiter - A push-button selectable rev limiter that can be adjusted in 100 RPM increments. It provides great insurance against accidentally over-revving your engine by cutting out the spark.

3. 2-STEP Rev Limiter—This is a push-button selectable rev limiter that can be adjusted in 100 RPM increments. It only becomes active when 12 volts are applied to the white wire in the ignition wiring loom. When active, the 2-STEP takes precedence over the Max REV Limiter. It's ideal if you have a trans brake or launch control, or it could be used as a Valet Mode.

The ICE Ignition controller must be mounted inside your car, not in your engine bay.

ICE Ignition strongly recommends the use of non-resistor Spark Plugs. If you require assistance with spark plug selection, please call us at 1300 722 580.

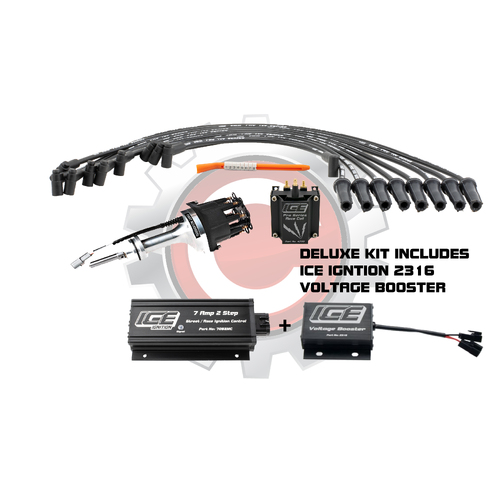

What's in the ICE Ignition Kit?

This ignition kit includes the following

1. 7062MC Controller - 128 pre-defined push-button selectable timing curves, push-button selectable MAX REV & 2-STEP Rev Limiters.

2. 2316 Voltage Booster - Ensures 16 Volts are being delivered to the ignition system at all times

3. ICE Ignition Billet Distributor - The ICE Ignition Distributor uses a “Hall Effect Sensor”  to communicate with the ICE Control Box. It will not work unless it's connected to an ICE Control Box. Please select from the following options:

   • SMALL Cap Distributor—A SMALL (4" diameter) CAP Distributor will be supplied and fitted with a NYLON gear.

4. ICE Ignition Pro 100 9 mm Leads / Plug Wires - Please select from the following "No Cost" Options:

   • ICE Ignition 9CHR805 Pro 100 9 mm finished lead set  - It comes with Straight Spark Plug Boots and fitment is AROUND THE COVERS. If a different lead fitment is required please call us.

   • ICE Ignition 9MMSTU Pro 100 9 mm DIY set—This is a partially finished lead set with the spark plug end terminated and the boots fitted. The leads are cut extra-long. Lead crimpers are required; they are available as an option.

5. ICE Ignition 4200 Pro Series Race Coil - With twice the energy of a standard coil the ICE Ignition 4200 Coil is the ideal coil for naturally aspirated engines.

6. Wiring Loom - The ICE Ignition wiring loom is approximately 2 metres long and is easy to install. The included instructions detail what is required to connect the ICE Ignition system to your car. If you require a longer wiring loom please call us on 1300 722 580.
