7 AMP 2-STEP Kit - Chrysler Big Block 383 V8, N.A.

This ICE Ignition kit is for the Chrysler Big Block 383 V8 engines fitted with the following

• Carburettor(s) - including electronic carburettor(s).

• No forced induction or nitrous.

This ICE Ignition kit is ideal for most street and race cars. The Rev Limiter provides insurance against accidentally over-revving your engine. This kit can also be used with electronic carburettors that control "Air and fuel" only. The Digital Inductive Spark technology delivers the most powerful spark and longest duration of any ignition system. More spark means greater tuneability, which leads to improved performance.

The 2-STEP Rev Limiter is ideal for cars with a trans-brake. Alternatively, it can be used as a "Valet Mode." Hide a switch in your car and connect it to the 2-STEP. Set the RPM to a lower RPM than the MAX Rev Limiter. Once active, the 2-STEP takes precedence over the MAX Rev Limiter. It's an ideal way of protecting your investment when handing over your prized possession to someone else.

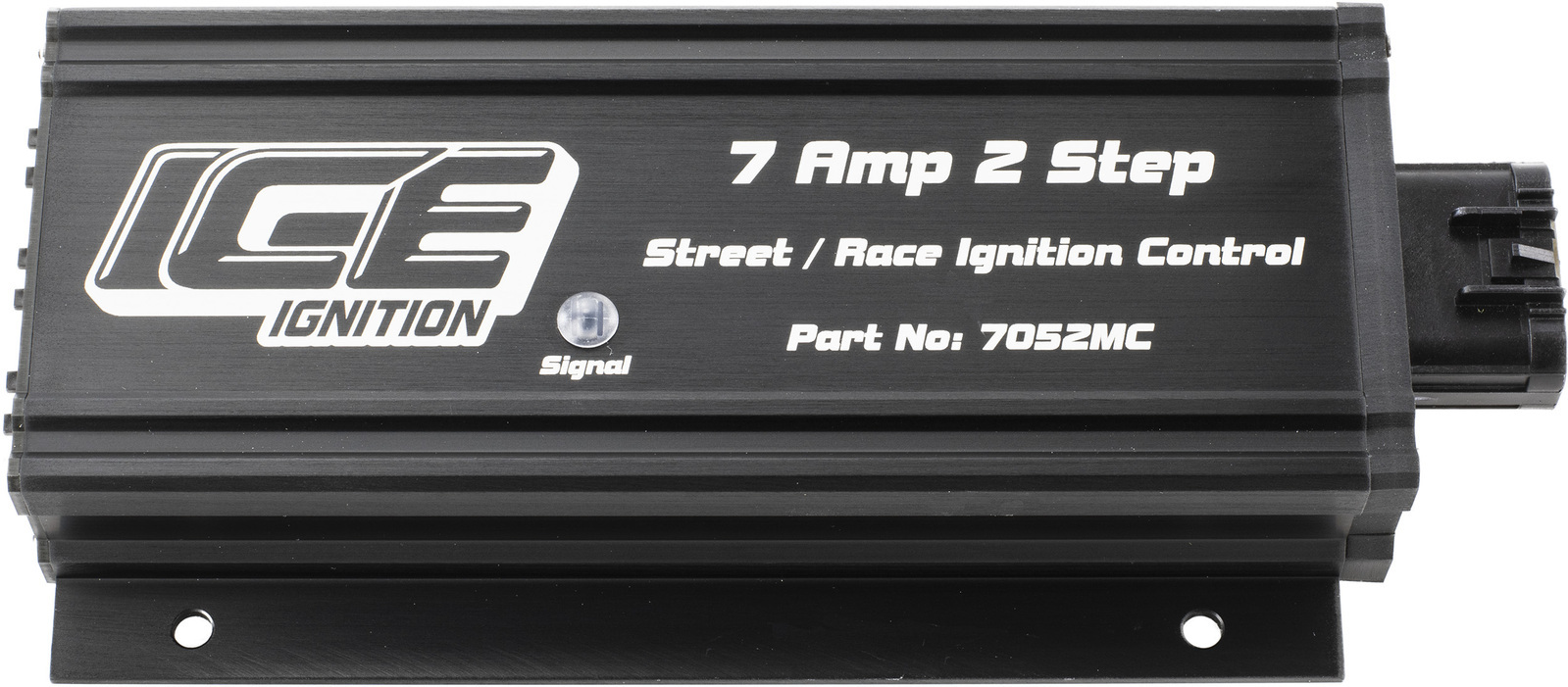

The ICE Ignition 7 AMP 2-STEP Control Box

The ICE Ignition 7062MC Street / Race Series Control Box features the following.

1. 128 Pre-programmed ignition curves—128 push-button selectable curves enable real-time timing adjustment. It eliminates the need for distributor re-graphing when engine upgrades are introduced and allows you to adjust timing for changes in fuel quality. The tuning potential is almost endless, with 128 timing curves at your disposal.

2. MAX REV Limiter - A push-button selectable rev limiter that can be adjusted in 100 RPM increments. It provides great insurance against accidentally over-revving your engine by cutting out the spark.

3. 2-STEP Rev Limiter—This push-button selectable rev limiter can be adjusted in 100 RPM increments. It only becomes active when 12 volts are applied to the white wire in the ignition wiring loom. When active, the 2-STEP takes precedence over the Max REV Limiter. It's ideal if you have a trans brake or launch control, or it could be used as a Valet Mode.

The controller must be mounted inside your car, NOT your engine bay. ICE Ignition recommends the use of NON-RESISTOR Spark Plugs.

Why choose the ICE Ignition 7062MC Kit?

• 128 timing curves provide excellent tuning capability

• Two Rev Limiters - One for launch control and one for over-rev protection

• The "Digital Inductive Spark" technology delivers the most powerful spark and longest duration of any ignition system.

• It's ideal for most street-driven cars and provides great tunability.

• Push-button selectable timing makes distributor re-graphs obsolete.

• Push-Button selectable Rev Limiter protects your engine from being accidentally overrevved.

• The 2-STEP Rev Limiter is ideal for cars with a trans-brake or could be used as a launch control or "Valet Mode."

• It can also be used with electronic carburettors that control "Air & Fuel" only.

• More spark means greater tuneability, which leads to improved performance.

• Three-Year Australian Warranty, made in Melbourne

Our Value-Add Service

Need help establishing a base tune for your engine? We can help with engine timing (i.e., base timing and curve selection), spark plug selection, and spark plug gap for all customers who purchase an ICE Ignition kit through Gear Campus. Please get in touch with us via eBay Message when ordering your ICE Ignition kit.

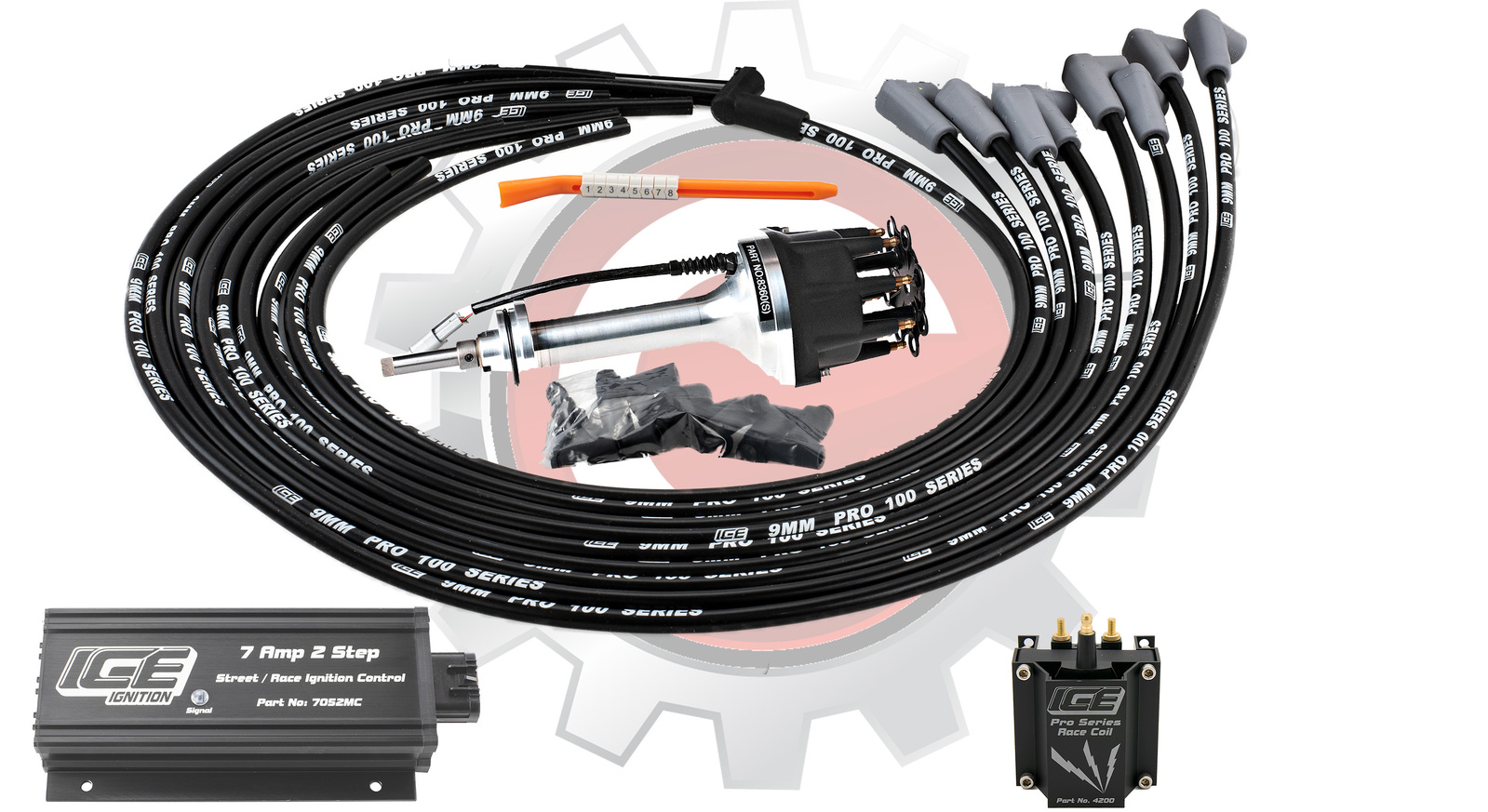

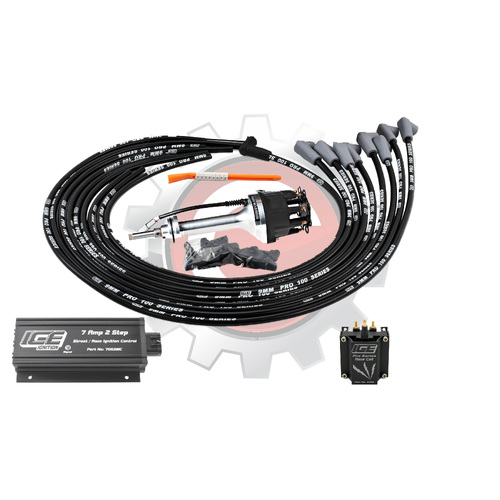

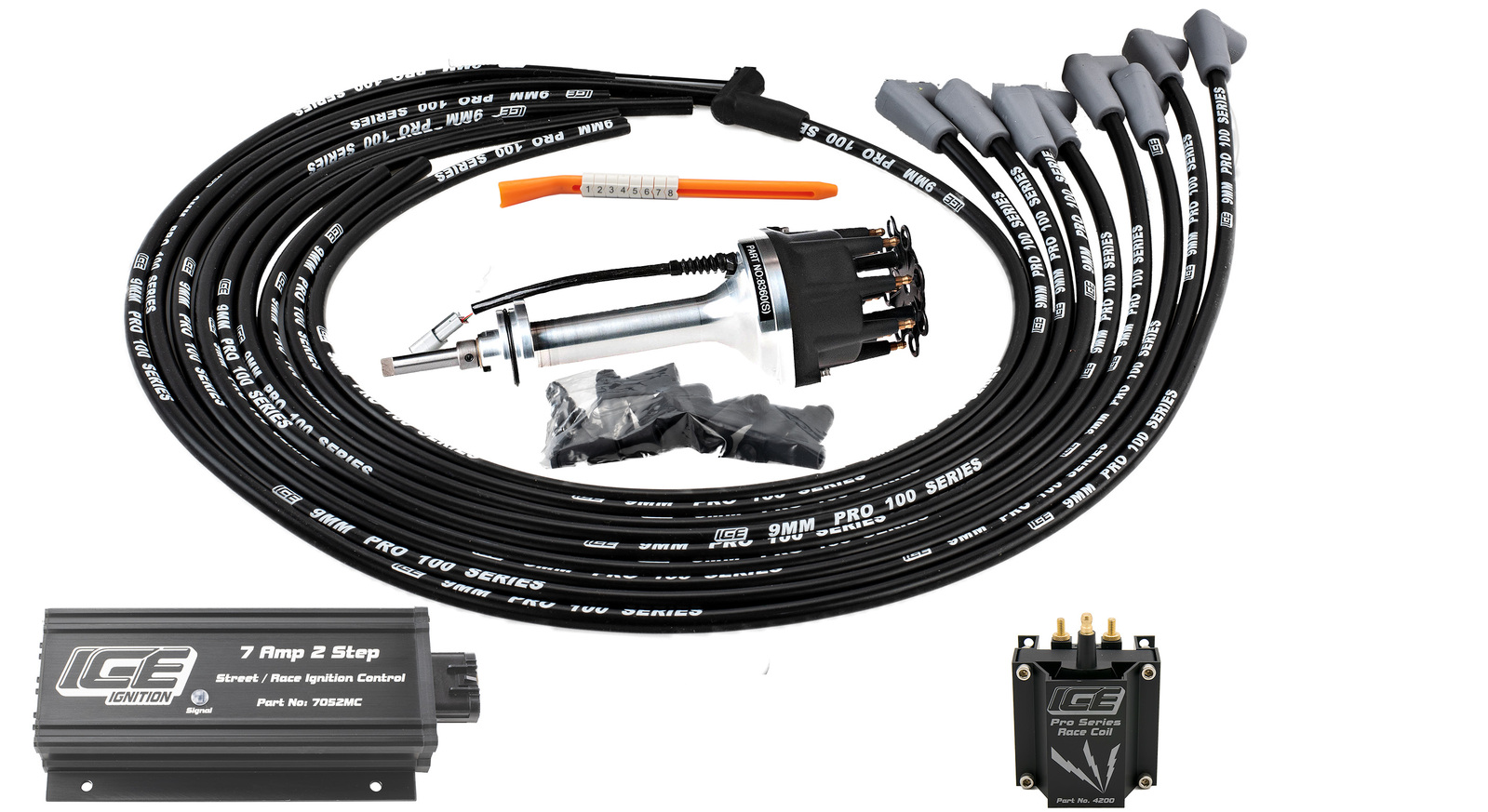

What's in the ICE Ignition Kit?

This ignition kit includes the following

1. 7062MC Controller - 128 pre-defined push-button selectable timing curves, push-button selectable MAX REV & 2-STEP Rev Limiters.

2. ICE Ignition SMALL Cap (4" Diameter) Billet Distributor— If you prefer a LARGE CAP Distributor (5" approx), please include the following in the Customer Comments section during checkout: "Please supply this kit with a LARGE CAP Distributor." This is a NO-COST option

3. ICE Ignition 9MMRBCU Pro 100 9 mm DIY Lead Set—A partially finished lead set is supplied as it is challenging to supply a finished set of leads due to tight fitment around the engine. This lead set is supplied with 8 x 90-degree and 8 x Straight Spark Plug Boots for the perfect fit. The leads are cut extra long. Lead crimpers are required.

4. The ICE Ignition 4200 Pro Series Race Coil has twice the energy of a standard coil and is ideal for naturally aspirated engines.

5. Wiring Loom - It's approx. 2 metres long and is easy to install.
