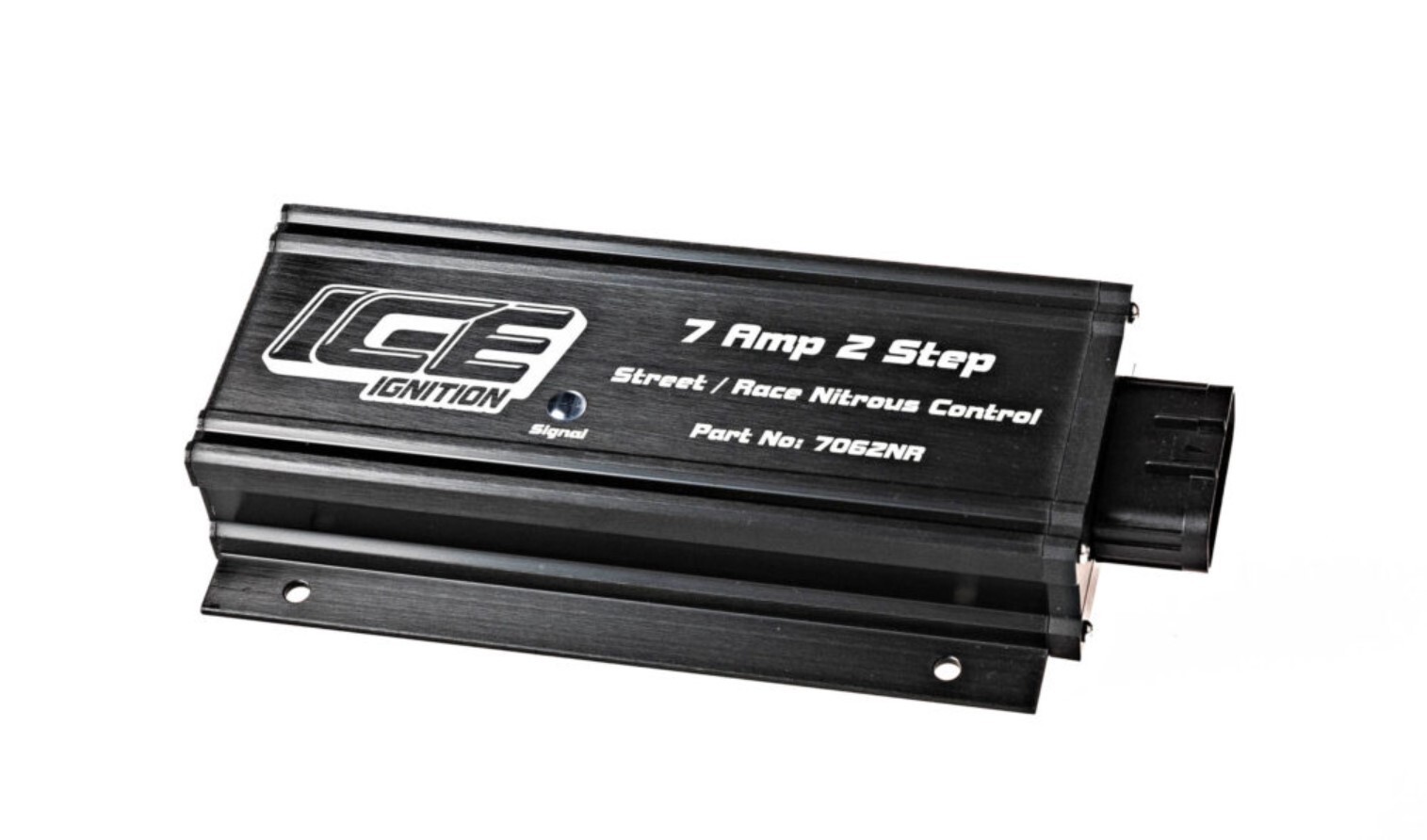

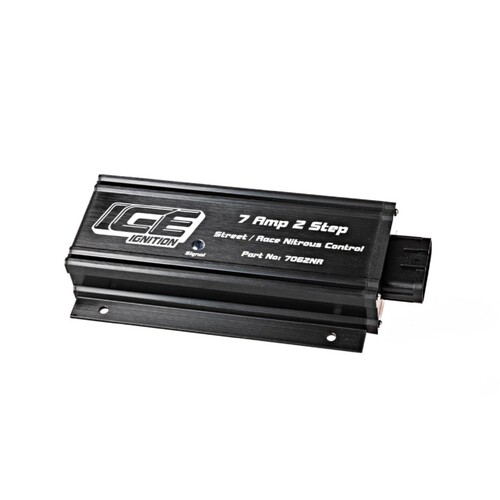

ICE Ignition 7 AMP 2 STEP Nitrous Control Box

PLEASE NOTE: The ICE Igntion 7062NR Controller requires an appropriate ICE Igntion Distributor. It is NOT possible to use another distributor. All ICE Ignition Distributors have a Field Effect Sensor installed in the distributor. Without this sensor, the ICE Ignition 7062NR controller would not work. We sell the ICE Ignition Distributors individually for most 6 Cyl and V8 engines on eBay.

The ICE Ignition 7062NR Street/Race Series Control Box features the following.

1. 9 Pre-programmed Nitrous Timing Retard Curves - Retard timing by up to 20 Degrees by connecting a combination of four wires to your Nitrous Arm Switch. With the ICE Ignition 7062NR, you can retard timing up to 14 degrees with the option to select "Locked Timing".
2. MAX RPM Rev Limiter (1-STEP) - A push-button selectable rev limiter adjustable in 100 RPM increments. It provides great insurance against accidentally over-revving your engine by cutting out the spark.
3. 2-STEP Rev Limiter—This is a push-button selectable rev limiter that can be adjusted in 100 RPM increments. It only becomes active when 12 volts are applied to the white wire in the ignition wiring loom. When active, the 2-STEP takes precedence over the Max REV Limiter. It's ideal if you have a trans brake or launch control, or it could be used as a Valet Mode.

The ICE Ignition controller must be mounted inside your car. Do not mount it inside your engine bay. ICE Ignition strongly recommends the use of NON-RESISTOR Spark Plugs.

Key Features

• 9 Predefined Nitrous Timing Retard Curves - Selectable from the wiring loom
• Rev Limiter - For Over-Rev protection. Selectable from the controller
• 2-Step Rev Limiter - Only active when 12 volts is applied to the white wire in the wiring loom

WHAT'S IN THE BOX?

The ICE Ignition 7062NR Controller includes the following

• 1 x ICE Ignition 7062NR Controller
• 1 x ICE Ignition 2-metre Wiring Loom
• 1 x ICE Ignition Manual
