7 AMP 2-STEP Nitrous Control Kit - Chrysler Hemi 6 Engines (215 to 265), carburettor, N.A.

The ICE 7 AMP Street Series Ignition kit suits the Chrysler Hemi 6 from the Hemi 215ci to 265ci engine fitted with

• Carburettor(s) - including electronic carburettor(s).

• Minimum Nitrous Shot = 100hp.

This kit is ideal for most street-driven cars and can also be used with electronic carburettors that control air and fuel only, as long as they don't control engine timing.

The ICE Ignition "Digital Inductive Spark" technology delivers the most powerful spark and longest duration of any ignition system. More spark means greater tuneability, which leads to improved performance.

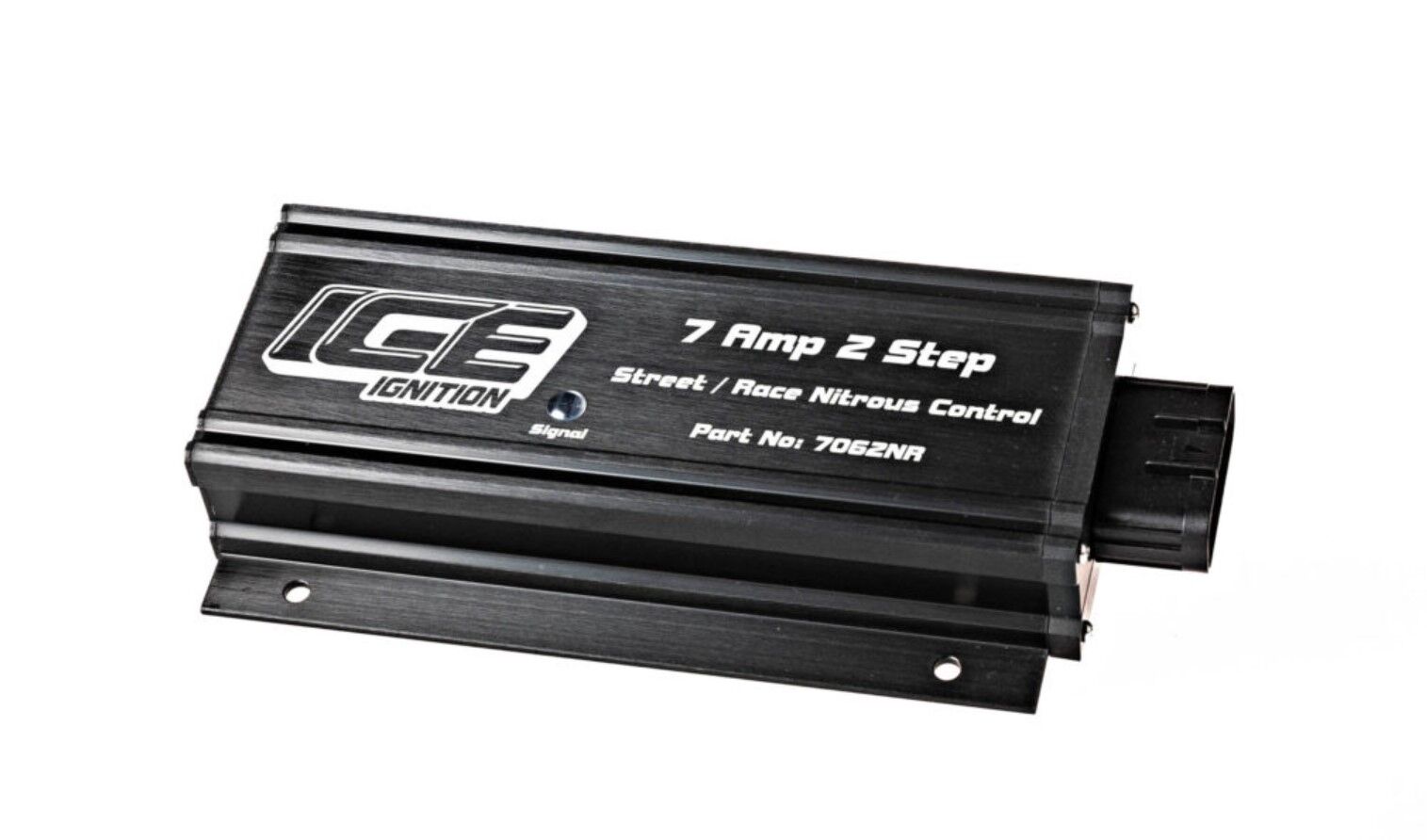

The ICE Ignition 7 AMP 2 STEP Nitrous Control Street/Race Series Control Box

The ICE Ignition 7062NR Street/Race Series Control Box features the following.

1. 10 Pre-programmed Timing Curves - The push-button selectable curves enable fine timing control through timing advance. With the ICE Ignition 7062NR, you can "LOCK TIMING" or apply up to 14 Degrees of advance by using the Timing Control switches.

2. Nitrous Retard - The Nitrous Retard works by applying 12 volts to a combination of the four dedicated Retard wires (White, Yellow, Blue & Brown). We recommend connecting your preferred wires to the Nitrous switch in your car. The Nitrous Retard can apply up to 20 Degrees of Timing Retard upon activation.

3. Rev Limiter (1-STEP)—This push-button selectable rev limiter is adjustable in 100 RPM increments. It provides excellent insurance against accidentally over-revving your engine by cutting out the spark.

4. Rev Limiter (2-STEP)—This push-button selectable rev limiter is adjustable in 100 RPM increments and is active when a constant 12 volts is applied to the white wire in the wiring loom. Connect this to a momentary switch to use as a launch control.

The controller must be mounted inside your car, NOT your engine bay. We recommend the use of NON-RESISTOR Spark Plugs.

Why choose the ICE Ignition 7062NR Kit?

• Precise control over timing under Nitrous injection, preventing detonation whilst maximising performance and efficiency.

• The "Digital Inductive Spark" technology delivers the most powerful spark and longest duration of any ignition system.

• It's ideal for most street-driven cars and provides great tunability.

• Push-button selectable timing makes distributor re-graphs obsolete.

• Push-Button selectable Rev Limiter protects your engine from being accidentally overrevved.

• It can also be used with electronic carburettors that control "Air & Fuel" only.

• More spark means greater tuneability, which leads to improved performance.

• Three-Year Australian Warranty, made in Melbourne

Our Value-Add Service

Need help establishing a base tune for your engine? We can help with engine timing (i.e., base timing and curve selection), spark plug selection, and spark plug gap for all customers who purchase an ICE Ignition kit through Gear Campus. Please get in touch with us when you order your ICE Ignition kit.

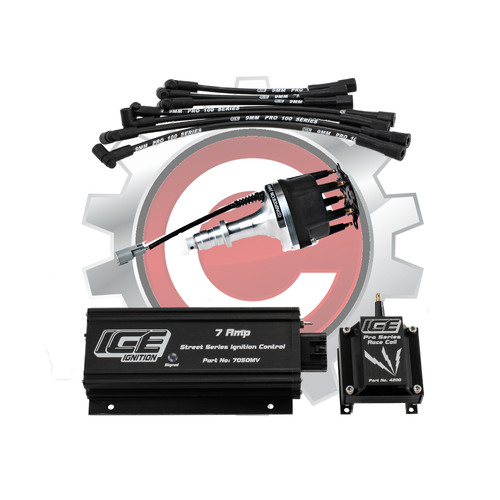

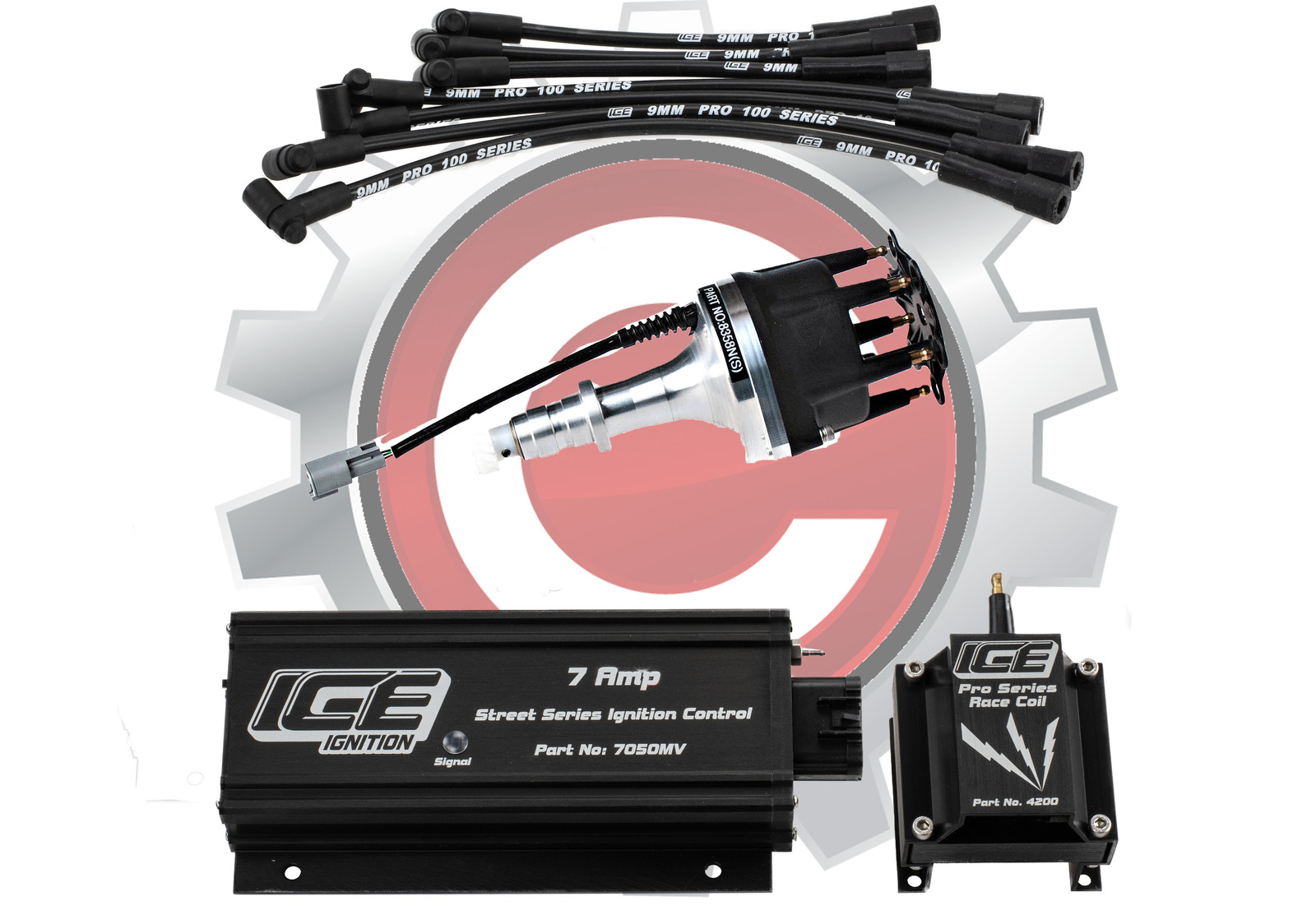

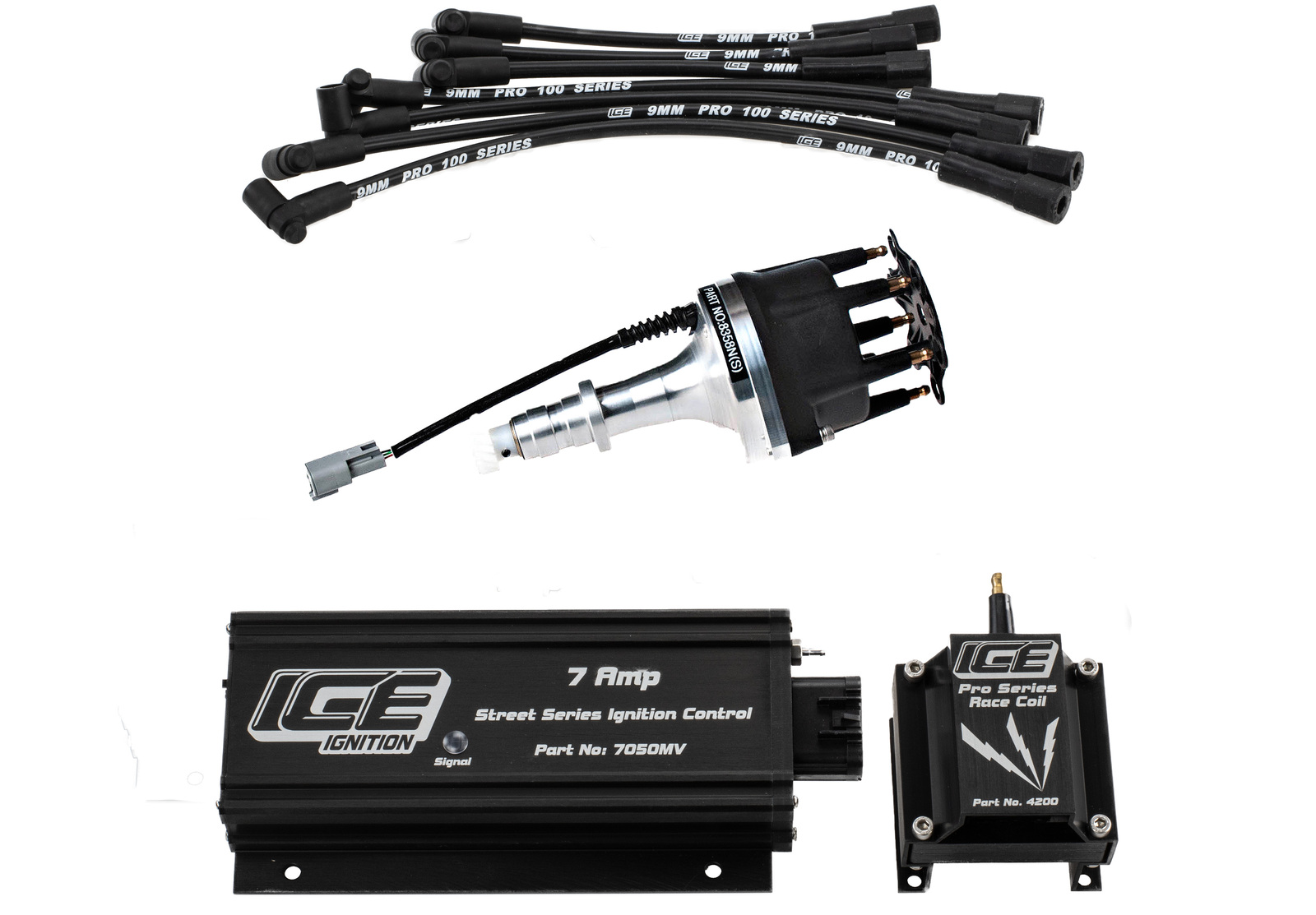

What's in the ICE Ignition Kit?

This ignition kit includes the following

1. 7062NR Controller - 10 pre-defined push-button selectable timing advance curves, Up to 20 Degrees of Timing Retard under Nitrous Injection is available through the dedicated Nitrous Control wires & push-button selectable rev limiters for MAX RPM and Launch Control

2. ICE Ignition Billet Distributor - The ICE Ignition Distributor uses a “Hall Effect Sensor”  to communicate with the ICE Control Box. It will not work unless it's connected to an ICE Control Box. Please select from the following options:

   • SMALL Cap Distributor—A SMALL (4" diameter) CAP Distributor will be supplied and fitted with a NYLON gear.

3. ICE Ignition Pro 100 9 mm Leads / Plug Wires - Please select from the following "No Cost" Options:

   • ICE Ignition 9CHR602 Pro 100 9 mm finished lead set  - Fitment is AS PER FACTORY FITMENT. If a different lead fitment is required, please call us.

   • ICE Ignition 9MMSTU Pro 100 9 mm DIY set  - A partially finished lead set with the spark plug end terminated and the boots fitted. The leads are cut extra long.  Lead crimpers are required; they are available as an option.

4. ICE Ignition 4100 Pro Series Race Coil - With twice the energy of a standard coil, the ICE Ignition 4100 Coil is the ideal coil for forced induction & Nitrous injected engines.

5. Wiring Loom—The ICE Ignition wiring loom is approximately 2 metres long and easy to install. The included instructions detail the required vehicle connection points.
