7 AMP Street Kit - VN to VT Holden 304, VN Heads, EFI

Please Note: This kit is NOT included in the "Free Voltage Booster Promotion" as the 7016-2 Controller included in this kit has a built-in Voltage Booster. Furthermore. The ICE 2316 Voltage Booster is not compatible with this kit

This ICE Ignition kit is for the VN to VT Holden 304 with VN heads and Sequential or Batch Fire EFI. This kit is ideal for most street driven cars.

The ICE Ignition "Digital Inductive Spark" technology delivers the most powerful spark and longest duration of any ignition system on the market. More spark means greater tuneability which leads to improved performance.

At the heart of this kit is the ICE Ignition 7016-2 Street Series Ignition Control Box with the following features.

  1. Built-in Voltage Booster - Inside the 7016-2 is a 16-volt Voltage Booster ensuring the ignition system delivers maximum spark intensity and duration.
  2. Compatible with Batch Fire and Sequential EFI - Compatible with both Batch Fire Fuel Injection typically found in the VN to VS Commodore and Sequential Fuel Injection typically found in the VC Series 3 Ute and the VT Commodore.
  3. SMALL CAP SHORT Body distributor - Custom distributor designed to fit with the "Bunch of Bananas" and "Twin Throttle Body Manifolds

The ICE Ignition controller must be mounted inside your car. Do not mount it inside your engine bay.

ICE Ignition strongly recommends the use of NON-RESISTOR Spark Plugs. If you require assistance with spark plug selection please call us on 1300 722 580.



Why choose the ICE Ignition 7016-2 Kit?

  • The "Digital Inductive Spark" technology delivers the most powerful spark and longest duration of any ignition system on the market.
  • The 7016-2 Kit plugs directly into the car's Ignition Module enabling you to control timing using your car's ECU.
  • It's ideal for most street-driven cars and provides great tuneability.
  • More spark means greater tuneability which leads to improved performance.
  • Three Year Australian Warranty, made in Melbourne.

Our Value-Add Service

Need help with establishing a base tune for your engine? We can help with engine timing (i.e. base timing and curve selection), spark plug selection and spark plug gap for all customer's that purchase an ICE Ignition kit through Gear Campus. Please contact us upon ordering your ICE Ignition kit.

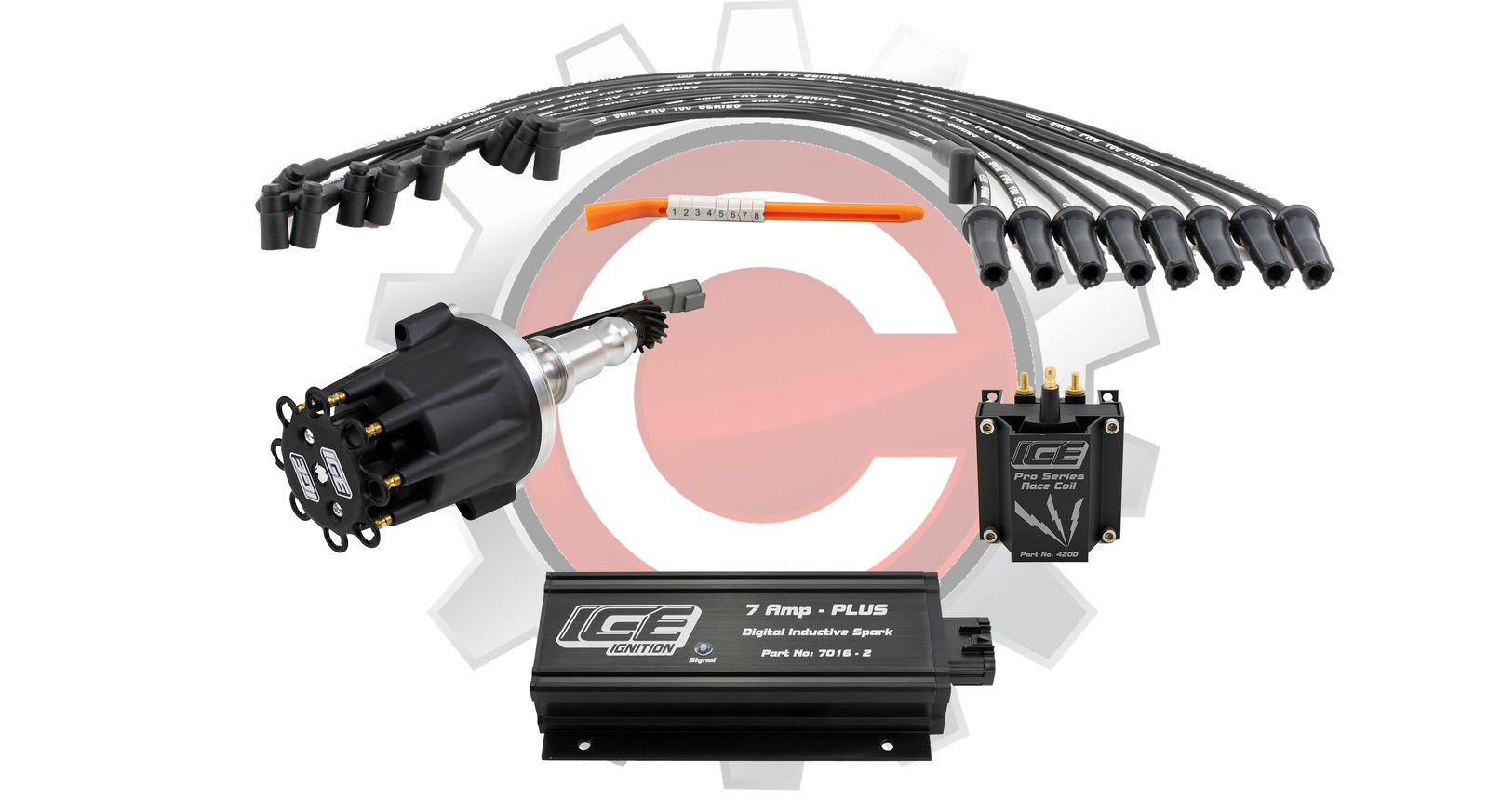

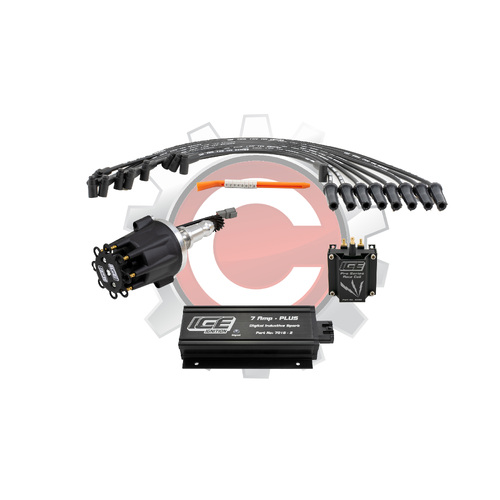

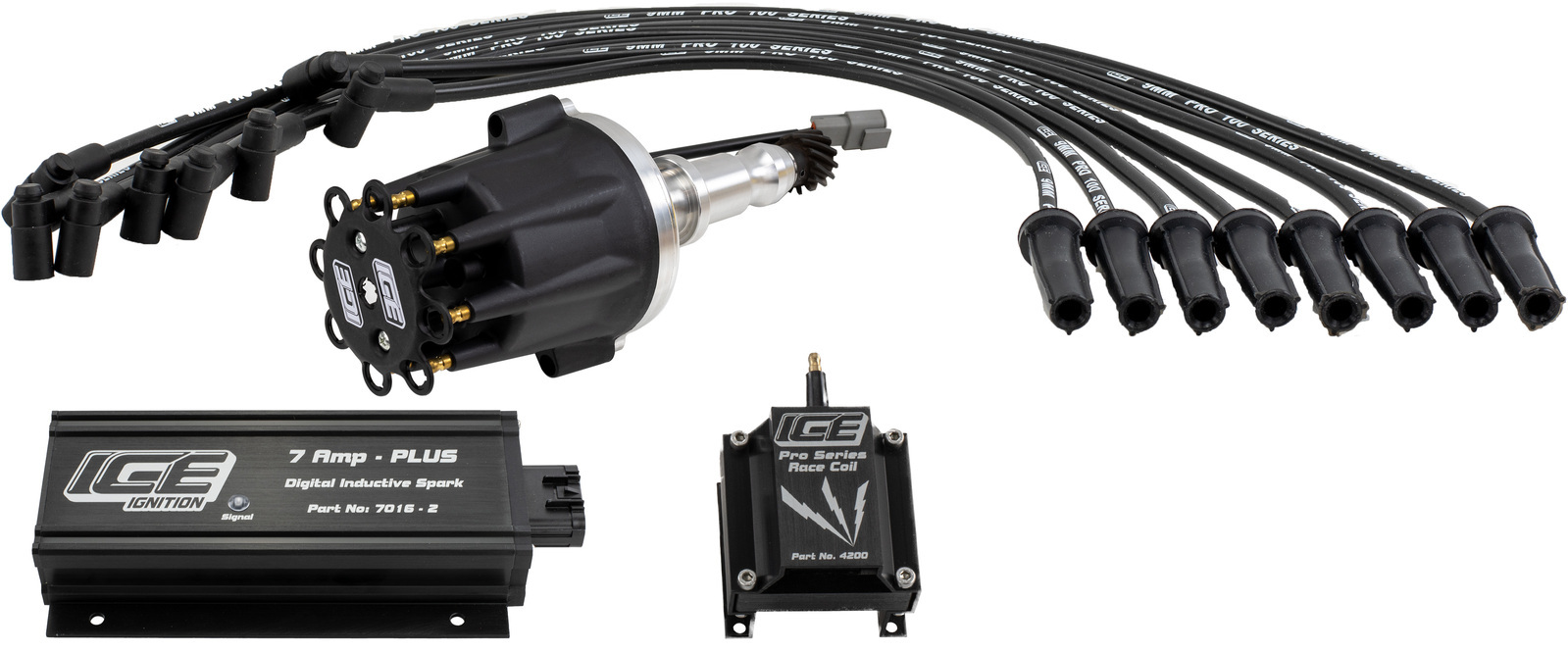

What's in the ICE Ignition Kit?

This ignition kit includes the following

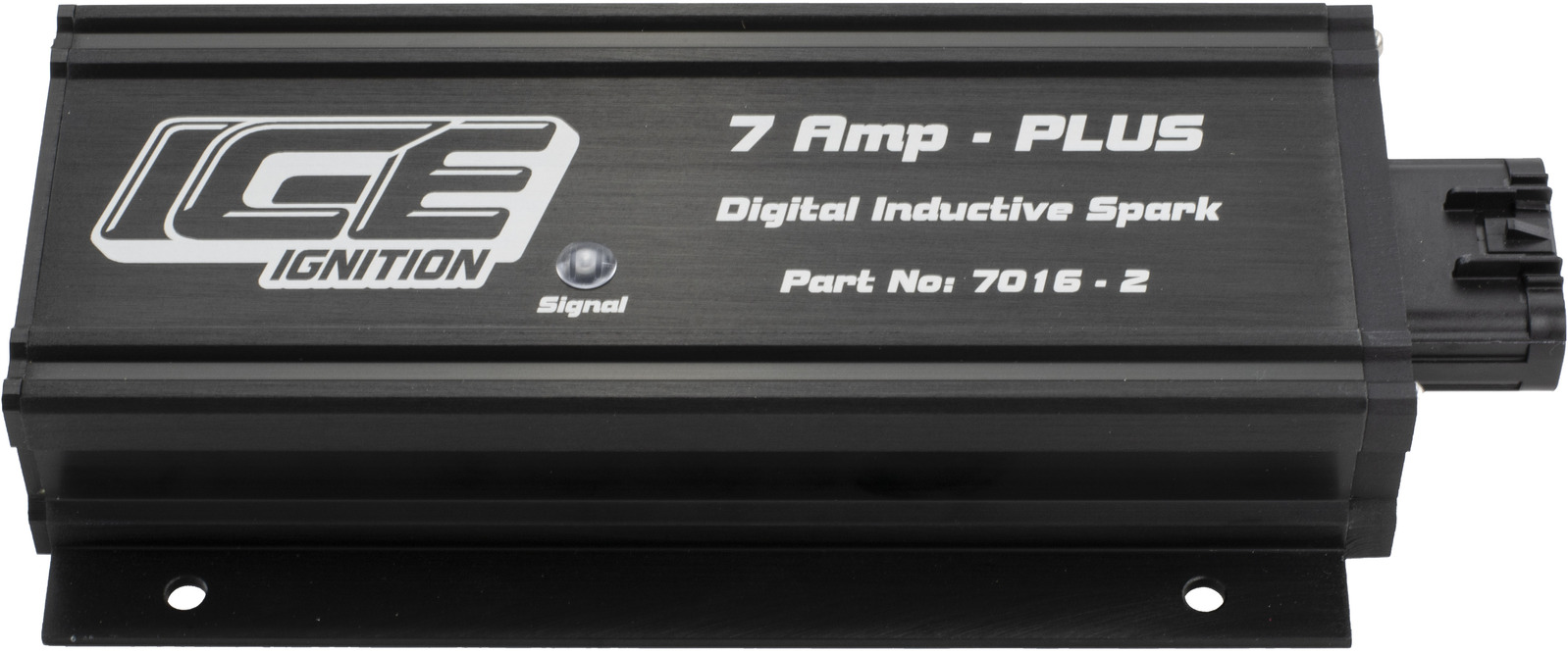

  1. 7016-2 Controller - With built-in Voltage Booster

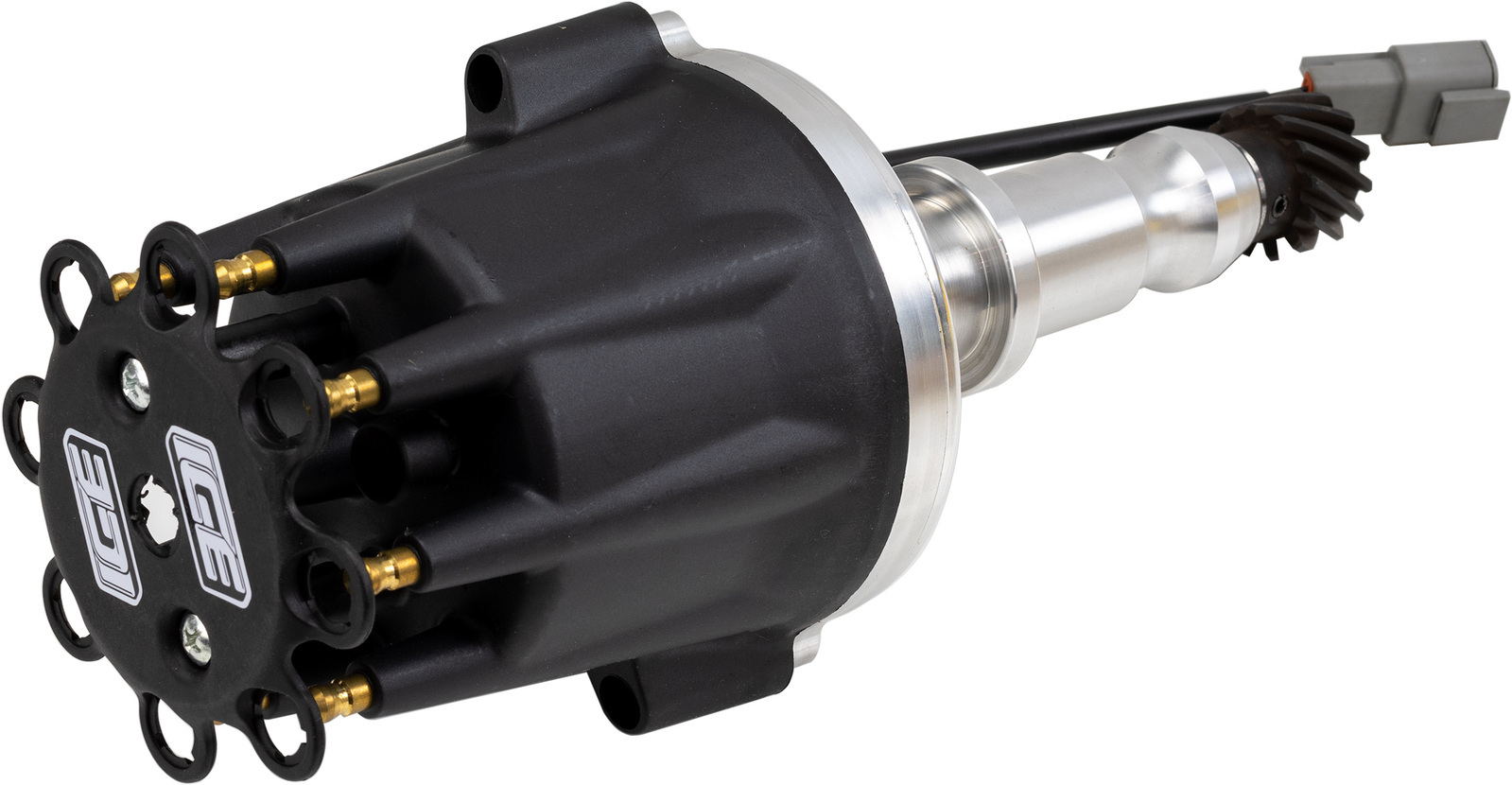

  2. ICE Ignition SMALL CAP SHORT Body Billet Distributor - Designed to fit under the "Bunch of Bananas" and "Twin Throttle Body" Manifolds. Depending on the type of EFI system a single or twin pickup Hall Effect Sensor will be installed. It will not work unless it's connected to the 7016-2 Control Box. Select from the following options:
    • Engine Camshaft – The is MOST important, please select the camshaft type from the options list. If you are unsure please call us on 1300 722 580.
  3. ICE Ignition Pro 100 9 mm Leads / Plug Wires - Please select from the following "No Cost" Options:
    • ICE Ignition 9HOL807 Pro 100 9 mm finished lead set  - Fitment is AROUND THE VALVE COVERS. If a different lead fitment is required please call us.
    • ICE Ignition 9MMSTU Pro 100 9 mm DIY set  - A partially finished lead set with the spark plug end terminated and the boots fitted. The leads are cut extra-long.  Lead crimpers are required, they are available as an option.
  4. ICE Ignition 4200 Pro Series Race Coil - With twice the energy of a standard coil the ICE Ignition 4200 Coil is the ideal coil for naturally aspirated engines.
  5. Wiring Loom - The ICE Ignition wiring loom is approximately 2 metres long and is easy to install. The included instructions detail what is required to connect the ICE Ignition system to your car. If you require a longer wiring loom please call us on 1300 722 580.

We offer a 3 year, non-transferable warranty covering defects in materials and workmanship if properly installed. A 2 year warranty applies where the product is being used primarily in a racing application. If installation instructions have been followed and the product is found to be defective, Gear Campus will replace or arrange for repair if returned along with proof of purchase. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law.

The foregoing is exclusive and in lieu of all other warranties or representations whether expressed or implied, including any implied warranty of merchanability or fitness. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages. Products must be returned as originally supplied. Warranty is void if products have been modified or tampered with in any way or installation instructions are not followed.

Product Features & Benefits

  • You will save money by not having to re-graph your distributor every time you upgrade your engine.
  • More spark and duration delivers greater tuneability leading to improved performance.
  • Avoid engine pinging scenarios through bad fuel by instantly adjusting your engine's timing.

ICE Ignition 7 AMP Kit; Holden 253-308 with VN Heads

Engine Type: All Holden 253 - 308 V8's with VN Heads
Fuel Delivery: Electronic Fuel Injection using ECU
Engine Setup: Naturally Aspirated
Controller: 7 AMP Street Series
Controller Features: Built-In 16V Voltage Booster.
Wiring Loom: Included, approx 2 meters long
Distributor Diameter: Approx 4"
Distributor Triggering: Hall Effect Sensor
Distributor Shaft: 4130 Chromoly
Distributor Gear: SG Iron gear for flat tappet cam
Distributor Cap Type: HEI / MALE Post
Dist. Plug Wire Retainer: Included
Spark Plug Boot Type:  Straight
Ignition Lead Diameter: 9 mm
Coil Type:  ICE Ignition 4200 Coil
Lead / Plug Wire fitment: Around valve covers
Lead Markers & install tool: Included











SKU IK70162FIHOL807
Barcode # 2000000004334
Brand ICE Ignition
Shipping Weight 12.0000kg
Shipping Width 0.440m
Shipping Height 0.280m
Shipping Length 0.360m
Shipping Cubic 0.044352000m3
Unit Of Measure ea
