7 AMP 1 STEP Controller & Small Cap Distributor to suit Ford Windsor 289 to 302 V8 with a Cast Roller Cam

PLEASE NOTE: To purchase this listing, the customer MUST have already purchased the ICE 4200 Coil and ICE 9mm Pro 100 Ignition Leads to suit their engine.

This ICE Ignition Mini Kit includes the ICE 7061MC Controller featuring 128 Timing Curves & A Rev Limiter and the ICE Small Cap Distributor to suit the Ford Windsor 289 to 302 with the following:

• CAST ROLLER Camshaft.

• This kit suits the Ford Windsor 289 to 302 with "Early Firing Order" (i.e. 1 5 4 2 6 3 7 8 firing order)

• The engine produces 450+ HP, and the Customer would NOT use an Electronic Vacuum  Advance due to low engine vacuum.

• The engine is frequently used under racing conditions, and with 128 Timing Curves, you will always find the right tune for the day's conditions.

• The engine is fitted with Carburettor(s) - including electronic carburettor(s).

• No forced induction or nitrous.

This ICE Ignition Mini kit is ideal for most street & race cars with the correct ICE Igntion 4200 Coil and appropriate ICE 9mm Pro 100 Ignition Leads. The Rev Limiter provides insurance against accidentally over-revving your engine. This kit can also be used with electronic carburettors that control "Air & Fuel" only. The Digital Inductive Spark technology delivers the most powerful spark and longest duration of any ignition system. More spark means greater tuneability, which leads to improved performance.

The ICE Ignition 7 AMP 1 STEP Control Box

The ICE Ignition 7061MC Street Series Control Box features the following.

• 128 Pre-programmed ignition curves - 128 push-button selectable ignition curves enable total timing adjustment in real-time.

  • It eliminates the need for distributor re-graphing when engine upgrades are introduced.

  • It also enables total timing adjustment in real-time for changes in fuel quality.

• Single Rev Limiter (1-STEP) - A push-button selectable rev limiter adjustable in 100 RPM increments. It provides great insurance against accidentally over-revving your engine by cutting out the spark.

The controller must be mounted inside your car, NOT inside your engine bay. ICE Ignition recommends the use of NON-RESISTOR Spark Plugs.

Why choose the ICE Ignition 7061MC Mini Kit?

• You have already purchased the appropriate ICE Ignition Coil and ICE Ignition Leads / Plug Wires To Suit Your Engine.

• You prefer to have more tuning options over an Electronic Vacuum Advance, which ideally suits engines subjected to frequent racing use.

• The "Digital Inductive Spark" technology delivers the most powerful spark and longest duration of any ignition system on the market.

• It's ideal for most street-driven cars and provides excellent tunability.

• Push-button selectable timing makes distributor re-graphs obsolete.

• Push-Button selectable Rev Limiter protects your engine from being accidentally overrevved.

• It can also be used with electronic carburettors that control "Air & Fuel" only.

• More spark means greater tuneability, which leads to improved performance.

• Three-Year Australian Warranty, made in Melbourne

Our Value-Add Service

Need help establishing a base tune for your engine? We can help with engine timing (i.e., base timing and curve selection), spark plug selection, and spark plug gap for all customers who purchase an ICE Ignition kit through Gear Campus. Please get in touch with us via email or by phone when ordering your ICE Ignition kit.

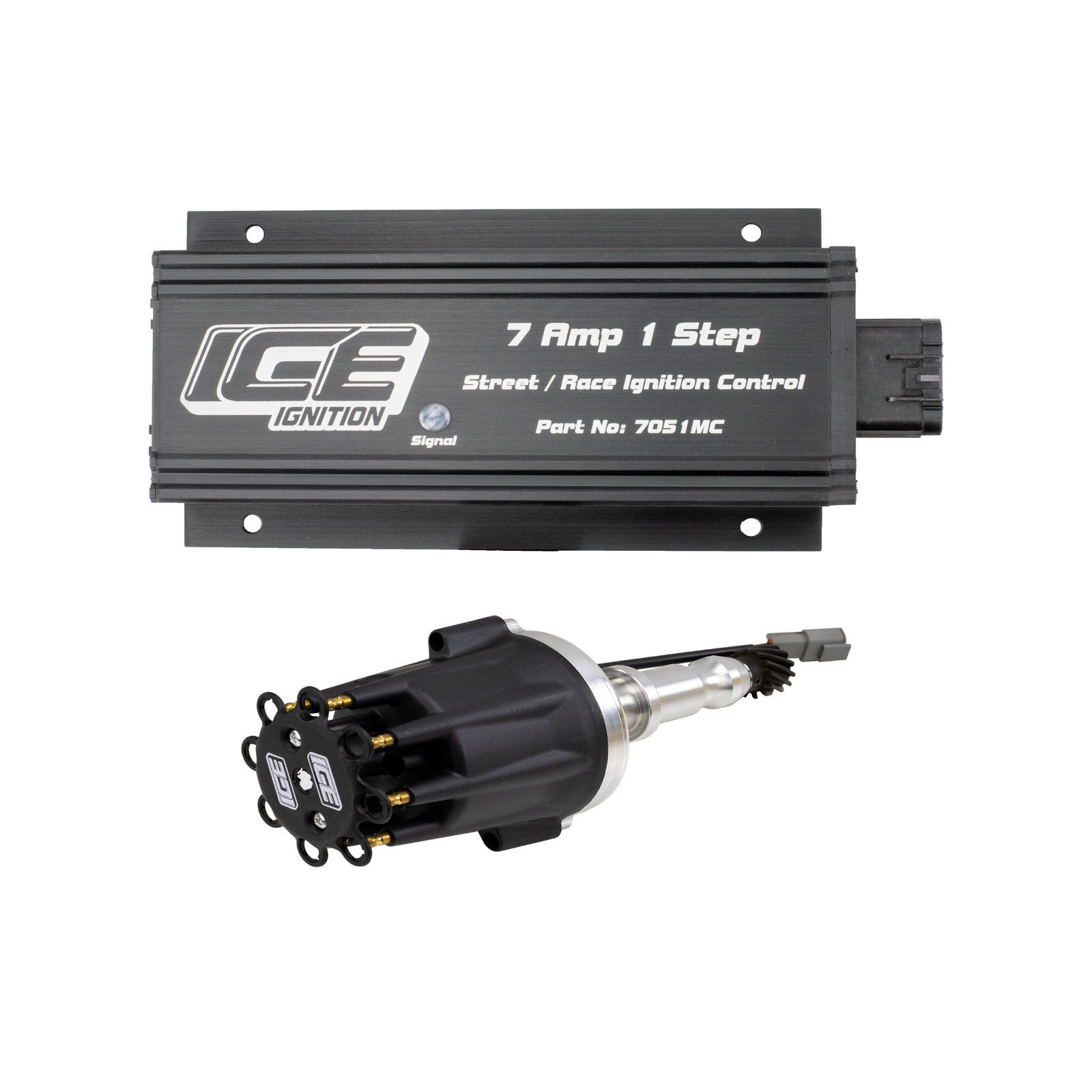

What's in the ICE Ignition Mini Kit?

This ignition kit includes the following

1. 7061MC Controller - 128 pre-defined timing curves & a push-button selectable rev limiter.

2. ICE Ignition SMALL CAP (4" Diameter) Billet Distributor -  It's made from 6061 aircraft-grade aluminium and uses a “Hall Effect Sensor” to communicate with the Control Box.

   • If you prefer a large cap distributor (5" Diam.), please include the following in the Customer Comments section during checkout: "Please supply this kit with a large cap distributor." This is a no-cost option.

   • A TREATED STELL gear is fitted to the distributor to suit a CAST ROLLER Camshaft. ​

3. Wiring Loom - It's approx. 2 metres long and is easy to install.
