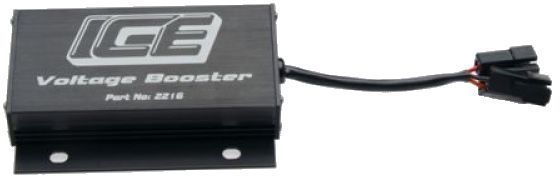

ICE Ignition 16 volt Booster for inductive multi-coil ignition systems

The ICE Ignition 2216 Booster converts a 10 to 15-volt input and produces a steady output of 16 volts to the main power cable of inductive systems. It produces a maximum continuous rated output of 15 amps or 20 amps for 30 seconds. Best of all the ICE Ignition 2216 Booster it is not dependent on the alternator to produce the 16 volts to coil positive. If space or weight is an issue the alternator can be removed with no impact to the Voltage Booster. If the alternator is installed the ICE Ignition 2216 Booster will supercharge the alternator's voltage output of 13.8 - 14.8 to 16 volts.

Please Note: Due to a known issue we do not recommend using the ICE Ignition 2216 Voltage Booster on any Ford fitted with a "Barra" straight 6 engine, this includes both naturally aspirated and turbo engines.



WHAT'S IN THE BOX?

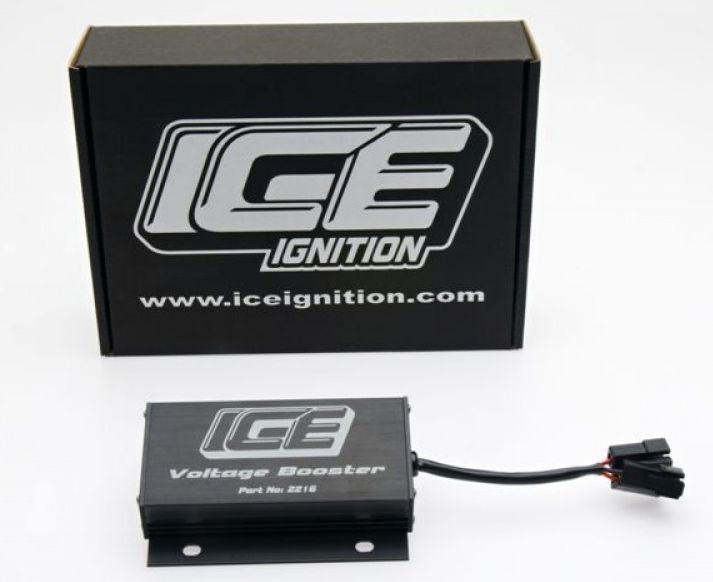

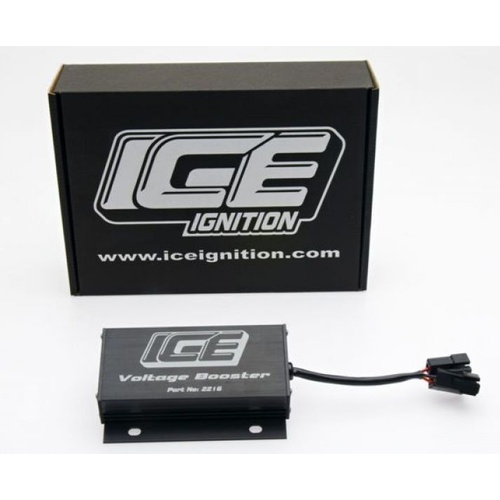

  • 1 x ICE Ignition 2216 Voltage Booster
  • 1 x Wiring Harness
  • Installation Instructions

We offer a 3 year, non-transferable warranty covering defects in materials and workmanship if properly installed. If installation instructions have been followed and the product is found to be defective, Gear Campus will replace or arrange for repair if returned along with proof of purchase. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law. The foregoing is exclusive and in lieu of all other warranties or representations whether expressed or implied, including any implied warranty of merchanability or fitness. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages. Products must be returned as originally supplied. Warranty is void if products have been modified or tampered with in any way or installation instructions are not followed.

Product Features & Benefits

  • Maximum rated output 15 amps continuous or 20 amps for 30 seconds.
  • Supplies a constant 16 volts to coil positive even without an alternator
  • ICE Voltage Booster compatible with any aftermarket multi-coil inductive ignition
  • Black anodised aluminium case with stainless steel tamper-proof screws.
  • Delivers consistent voltage required for the most demanding engine applications
  • Extra long life under the most demanding road, race or marine applications.

ICE Ignition 2216 Voltage Booster Specifications

Output to coil positive 16 volts
Maximum rated continuous output: 15 amps
Maximum rated output for 30 seconds: 20 amps
Voltage Booster Length: 140 mm
Voltage Booster Width: 105 mm
Voltage Booster Height: 35 mm
Voltage Booster Weight: 508 grams













SKU 2216
Brand ICE Ignition
Shipping Weight 1.2000kg
Shipping Width 0.280m
Shipping Height 0.080m
Shipping Length 0.210m
Unit Of Measure mm
