Lee's Tackle Junior Holder Wishbone Style Outrigger Bases  (2 in x 18 in Main Tube )

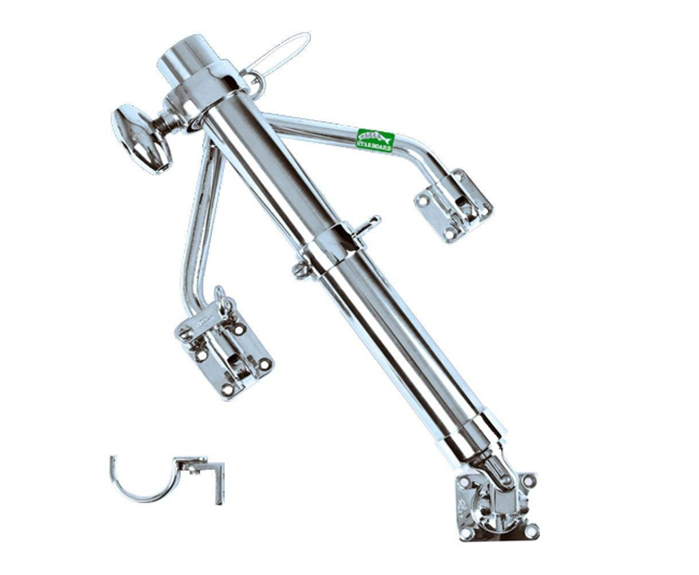

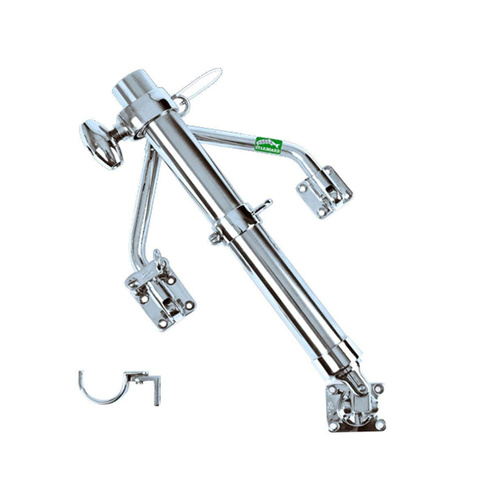

The Lee's Tackle Original Wishbone Style Outrigger Holder has been in production for over 45 years. Lee's Tackle set the standard for "Junior Outrigger Holders", it has often been imitated but never equalled. It's ease of operation, adjustable fishing angle, ability to lay down for bridges and small footprint makes it the ideal holder for a multitude of boats.

Durability was the watchword at its conception. Constructed of heavy-duty brass forgings, heavy wall brass pipe and a stainless steel main tube, it epitomizes strength and reliability. The three-point mounting system provides maximum strength and distributes the mounting surface stress over a wide area. The Lee's Tackle Original Wishbone Style Outrigger Holder can be mounted vertically or angled toward the stern, between twenty to thirty-five degrees is normal.

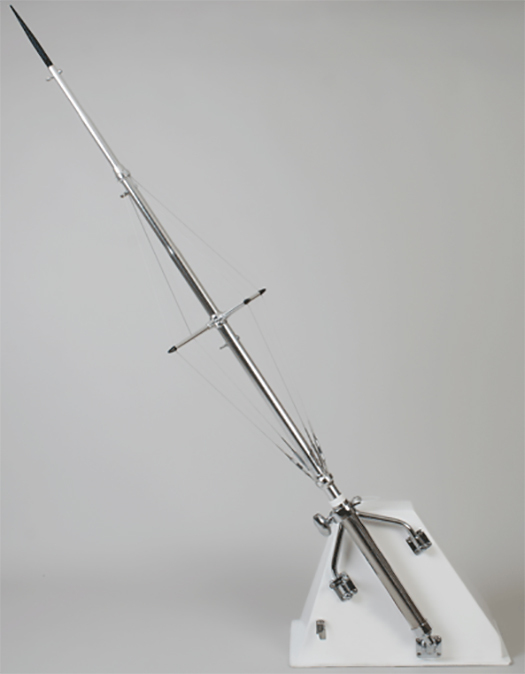

The Lee's Tackle Original Wishbone Style Outrigger Holder has a 2" x 18" Main Tube (OH226S) with a 48 mm (1 7/8") internal diameter and is designed for use with our deluxe 19ft. single spreader poles and non-spreader poles up to 22ft.

Using the Lee's Tackle Original Wishbone Style Outrigger Holder

To deploy the Outrigger into the fishing position, simply open the locking gate and loosen the clamp housing. The clamp housing then slides down the main tube until you either lock it or it meets one of the stop collar's preset fishing positions. To lower the unit for passing under bridges, leave the locking gate closed and the clamp locked to the top of the main tube. Remove the eye bolt, thus separating the clamp housing from the wishbone. The main tube is then lowered into the supplied lay down hook.

WHAT'S IN THE BOX
2 x Lee's Tackle Original Wishbone Style Outrigger Holder Bases
Lee's Junior Holder Wishbone Style Outrigger Bases

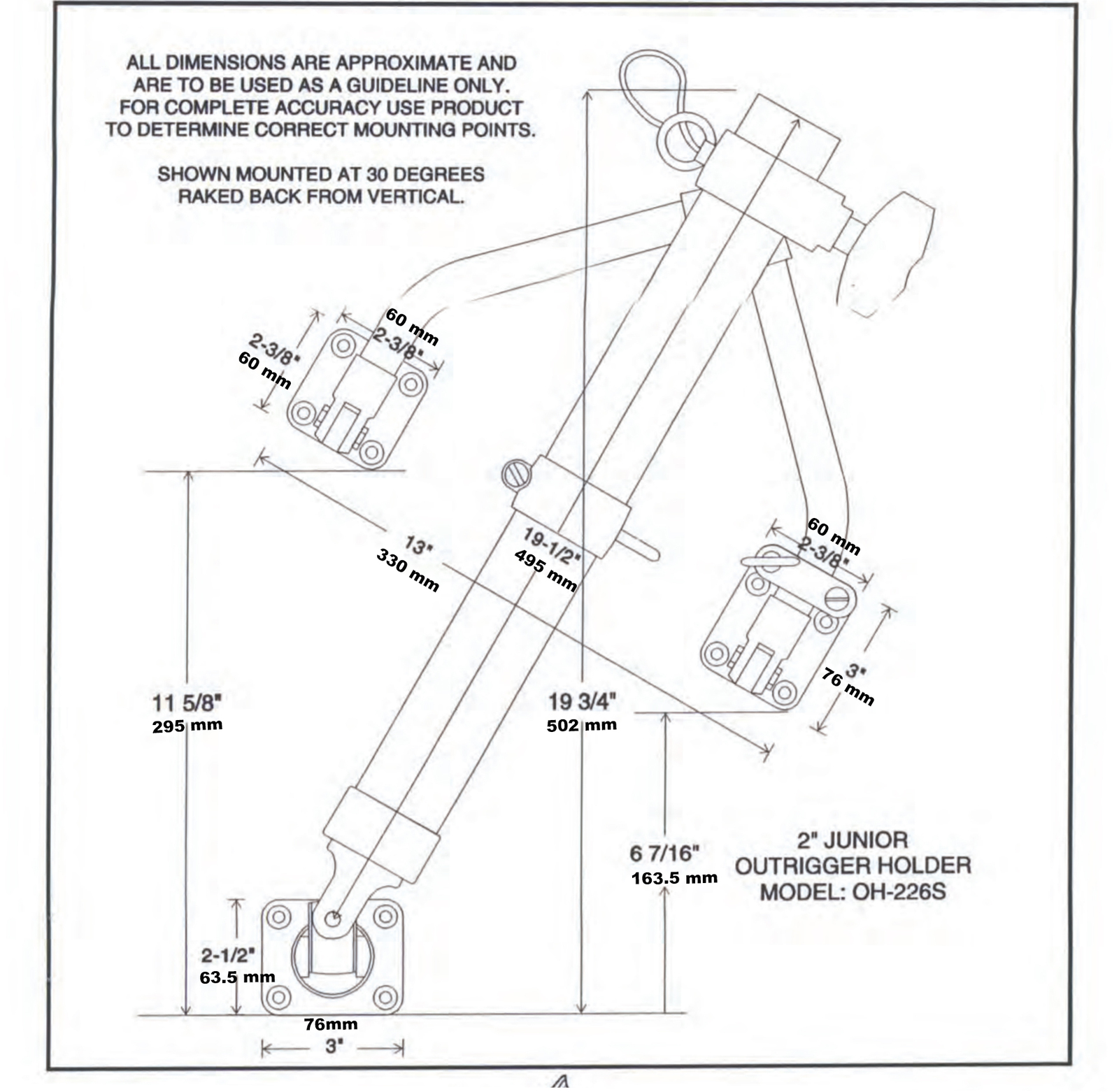

Main Tube Specifications:

51 mm (2") x 457 mm (18")"

Main Tube Internal Diameter: 47.63 mm (1 7/8")
Compatible Outrigger Lengths: 4.9 m (16 ft) to 6.7 m (22 ft)
Outrigger Base Footprint:  330 mm x 502 mm











SKU OH226S
Barcode # 096811222601
Brand Lee's Tackle
Shipping Weight 13.5000kg
Shipping Width 0.450m
Shipping Height 0.400m
Shipping Length 0.500m
Shipping Cubic 0.090000000m3
Unit Of Measure ea
