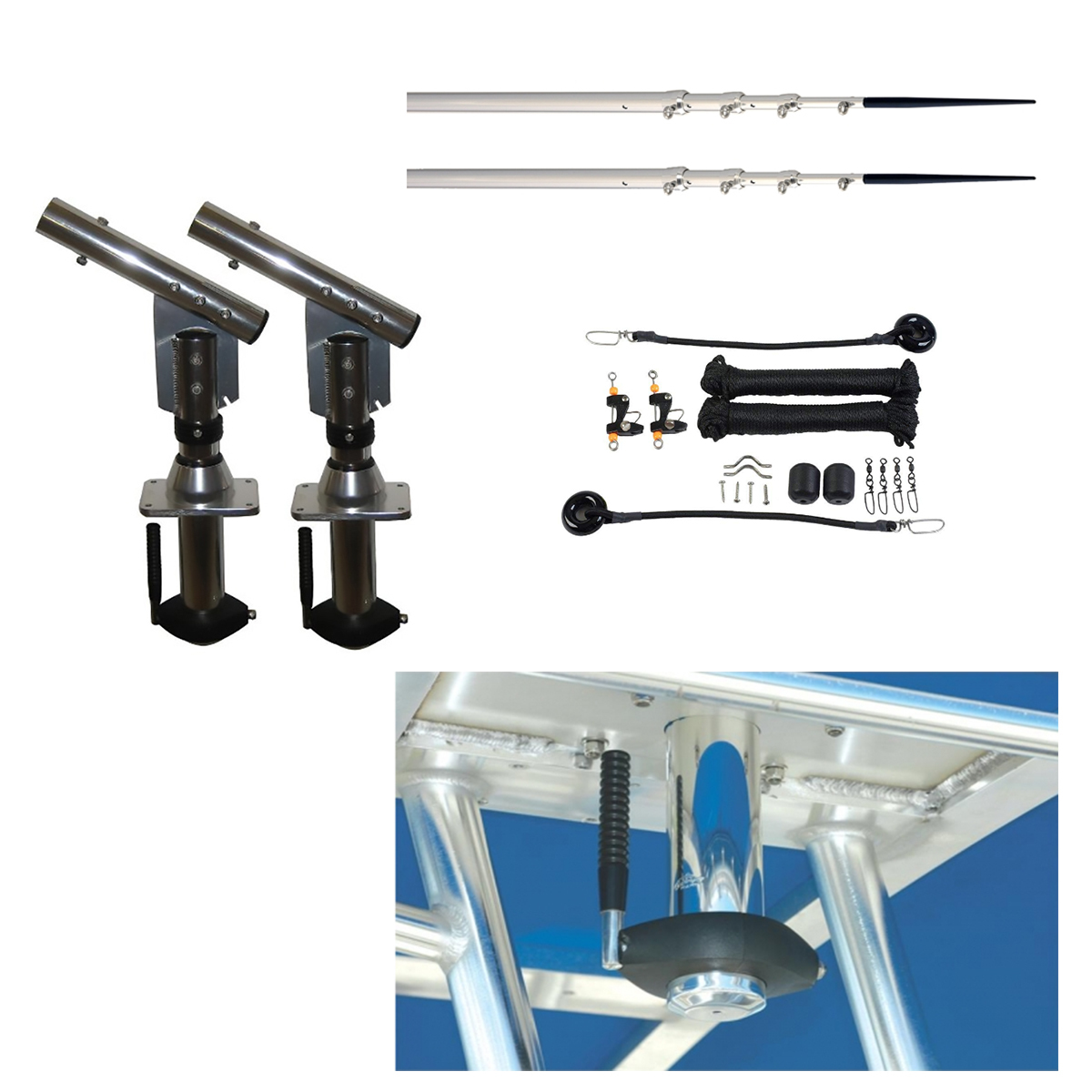

Lee's Sidewinder Outrigger Kit with 16.5ft Telescopic Poles & Rigging Kit

Looking for a complete outrigger solution for your mini-game fishing boat? Check out the Lee's Tackle Outrigger kits for trailer boats from 19 feet to 23 feet, plus

This kit includes the:

  • Lee's SW9300 Sidewinder Outrigger Holders
  • Lee's TX3916SL/SL 16.5 ft Telescopic Outrigger Poles Extra Strong Bright Silver Finish
  • Lee's RK0322RK Single Rigging Kit for Outrigger to 25 ft with release clips

Please Note: The Lee's Spreader Kit shown in the main photo is optional and is not included in this kit.

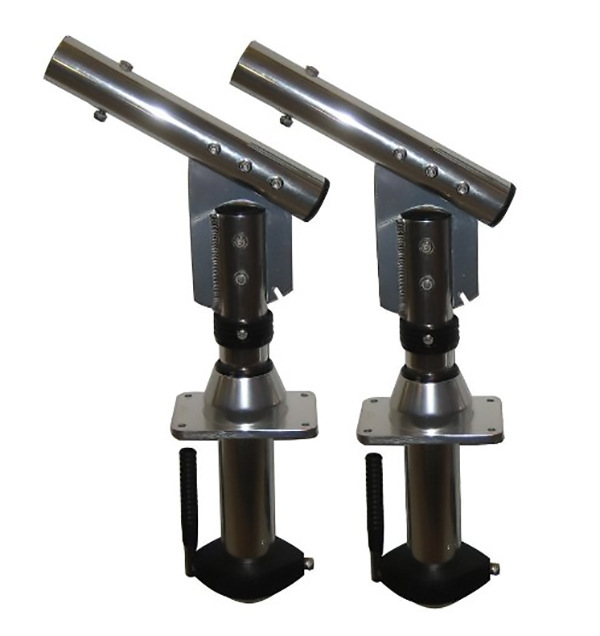

Lee's Tackle SW9300 Sidewinder Bolt-On Lay-Down Outrigger Mounts

The Lee's SW9300 Sidewinder Bolt-On Lay-Down Outrigger Mounts are built to the high standards of workmanship you have come to expect from Lee's Tackle. The no-compromise design integrates both performance and elegance. It's efficient at trolling baits, both natural and artificial, and also looks great.

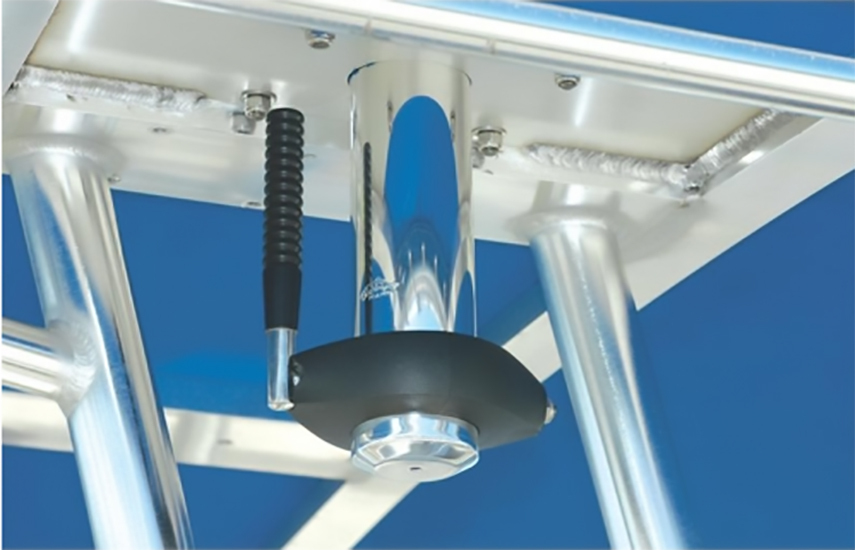

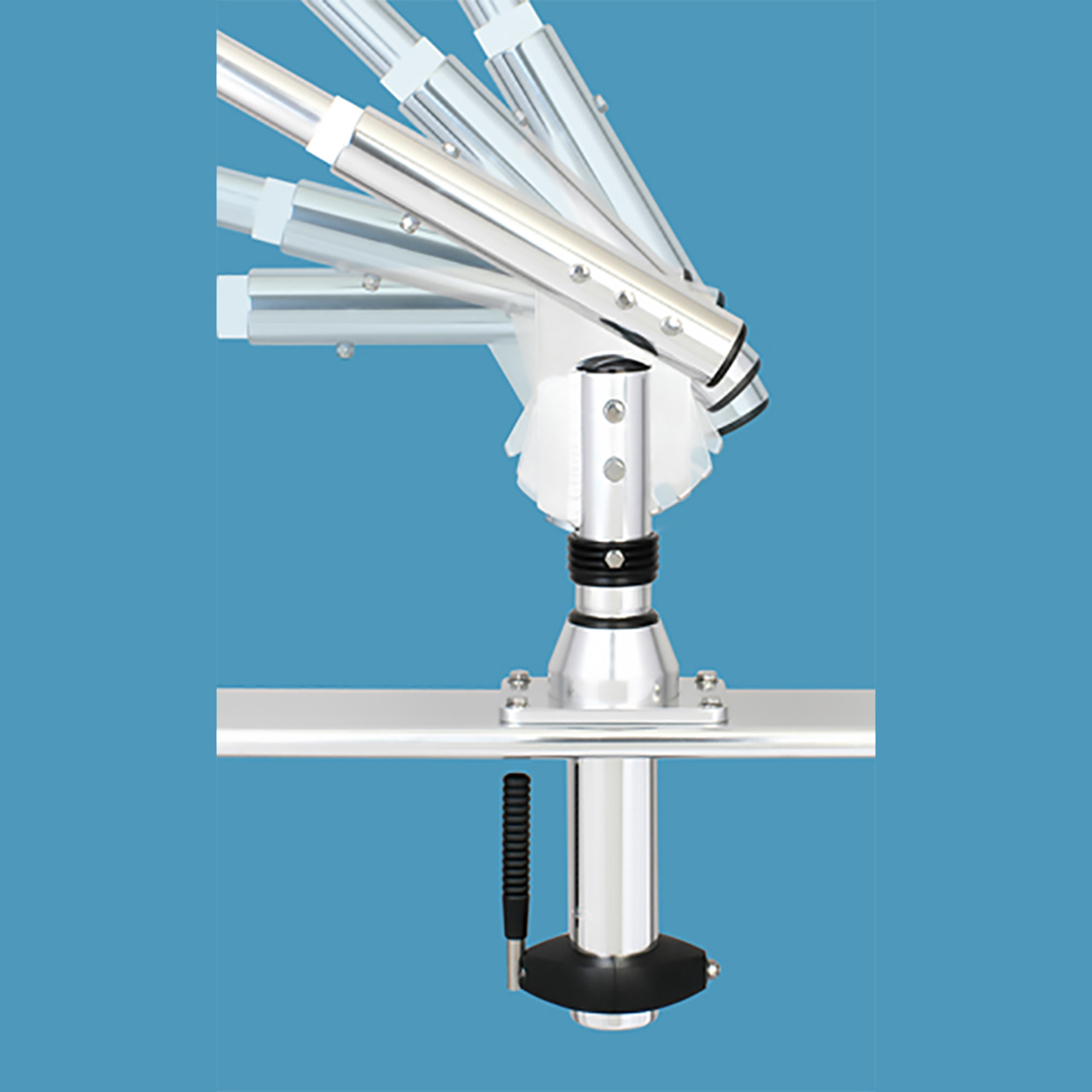

Cast from marine grade anodized aluminium in Bright Silver, the Lee's Tackle SW9300 Sidewinder Bolt-On Lay Down Outrigger Mounts have proven to be an effective tool when trolling natural and artificial baits. The Lee's SW9300 Sidewinder Bolt-On Lay-Down Outrigger Mounts are below T-Top or Hardtop operation. They can be locked in from 0 through to 80-degree trolling positions. The mounts lock when the handle is up or down and rotate when the handle is to the left or right. By far, it is the fastest lay-down outrigger mount on the market.

The Lee's SW9300 Sidewinder Bolt-On Lay-Down Outrigger Mounts automatically lock into position when raising or lowering the pole with no knobs to loosen or tighten. Just pull down the ridged collar and lower or raise the pole. No ball bearings to rust with internal Delrin and nylon bearing surfaces to provide a smooth operation and prevent metal-to-metal contact. They are compatible with Lee's 16ft Extra Strong (AP3916XS) or 18ft (AP3918) Outrigger Poles. It has a 102 mm (4") x 152 mm (6") mounting plate. Extends 356 mm (14") above and 216 mm (8-1/2") below the mounting plate. It fits all outrigger-ready boats.

Please Note: This product is sold as a pair and includes two Lee's SW9300 Sidewinder Bolt-On Lay Down Outrigger Mounts. The Lee's SW9901 Backing Plates are not included.

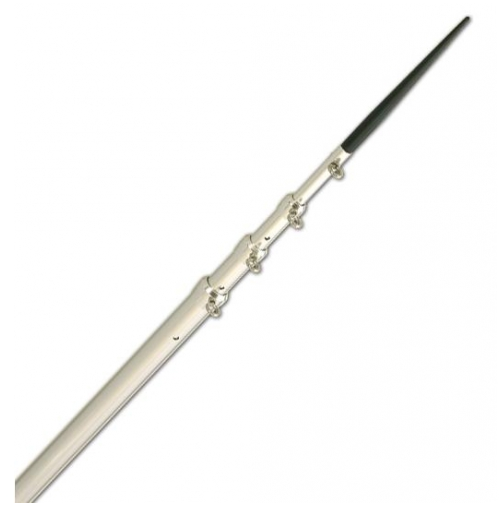

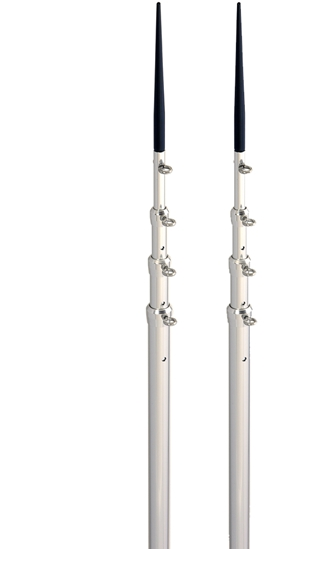

Lee's Tackle 16.5 ft Telescopic Poles - Extra Strong Bright Silver Finish

Cast from marine-grade anodized aluminium in Bright Silver, the Lee's TX3916SL/SL 16.5 ft (5,029 mm) Telescopic Outrigger poles have proven to be an effective tool for trolling baits, both natural and artificial. They also look fantastic. The outrigger poles are built to the same high workmanship standards you expect from Lee's Tackle.

The Lee's TX3916SL/SL 16.5 ft (5,029 mm) Telescopic Outrigger poles expand to 16.5 feet (5,029 mm) and will retract to just 6 feet (1,829 mm).

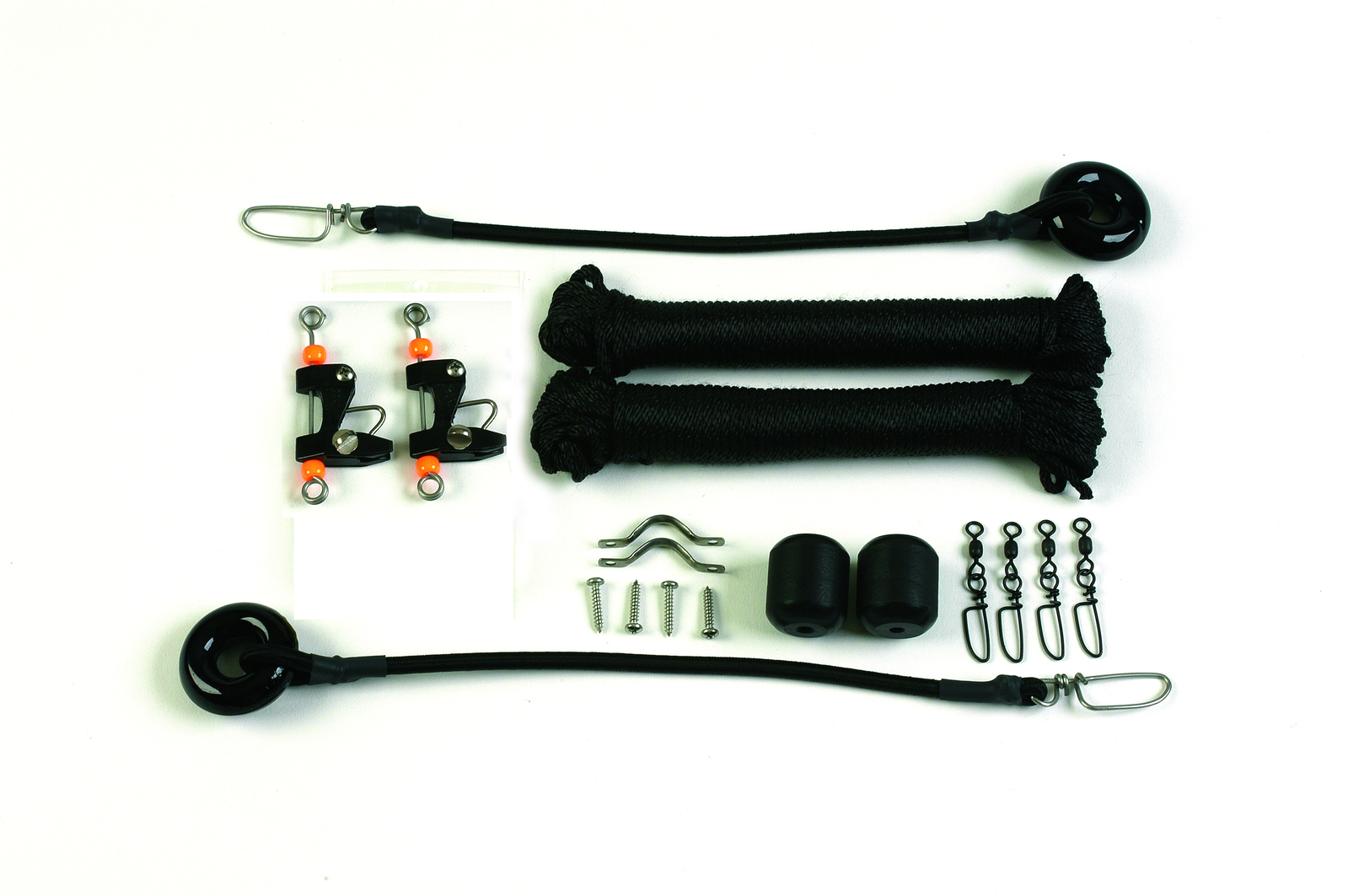

Lee's Tackle RK0322RK - Single Rigging kit for Outriggers up to 25 ft

The Lee's Tackle RK0322RK​ is a single rigging kit for outriggers up to 25 ft and comes with:

  • Release Clips;
  • Black Braided Line;
  • Tensions Cords;
  • Eye Straps;
  • Snap Swivels;
  • Ball Stops, and
  • Release Clips.

The quantity supplied is sufficient to rig two outriggers.

WHAT'S IN THE BOX

2 x Lee's SW9300 Sidewinder Style Outrigger Holder Bases

2 x Lee's TX3916SL/SL 16.5 ft Telescopic Outrigger Poles

1 x Lee's RK0322RK Outrigger Rigging Kit for Outriggers up to 25ft

Lee's Sidewinder Style Outrigger Bases
Internal Diameter:

1 5/8"(41.275mm)

Height below mounting plate when lowered: 216 mm (8.5")
Height below mounting plate when raised: 356 mm (14")
Mounting Plate Length: 152 mm (6")
Mounting Plate Width: 102 mm (4")
Minimum Trolling Position Angle: 0 Degrees
Maximum Trolling Position Angle: 80 Degress













Lee's TX3916SL/SL 16.5ft Telescopic Outrigger Poles

Length:

5,029 mm (16.5 feet)

Outside Diameter: 51 mm (2 inches)













Lee's RK0322RK Rigging Kit

Hank's Black Braided Line: 1
1/4 in x 12 in Tension Cords: 1
1/4 in x 15 in Tension Cords: 1
Eye Straps with Screws: 1
Snap Swivels: 4
Ball Stops: 2
Black's Release Clips: 2















SKU SW9300-TX3916SLSL
Barcode # 2000000001555
Brand Lee's Tackle
Shipping Weight 19.7000kg
Shipping Width 1.000m
Shipping Height 0.800m
Shipping Length 1.000m
Shipping Cubic 0.800000000m3
Unit Of Measure ea
