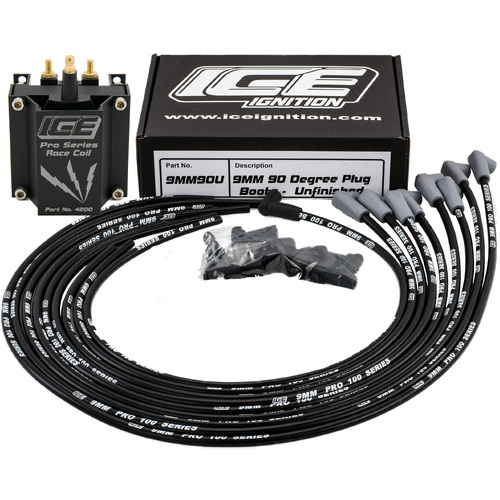

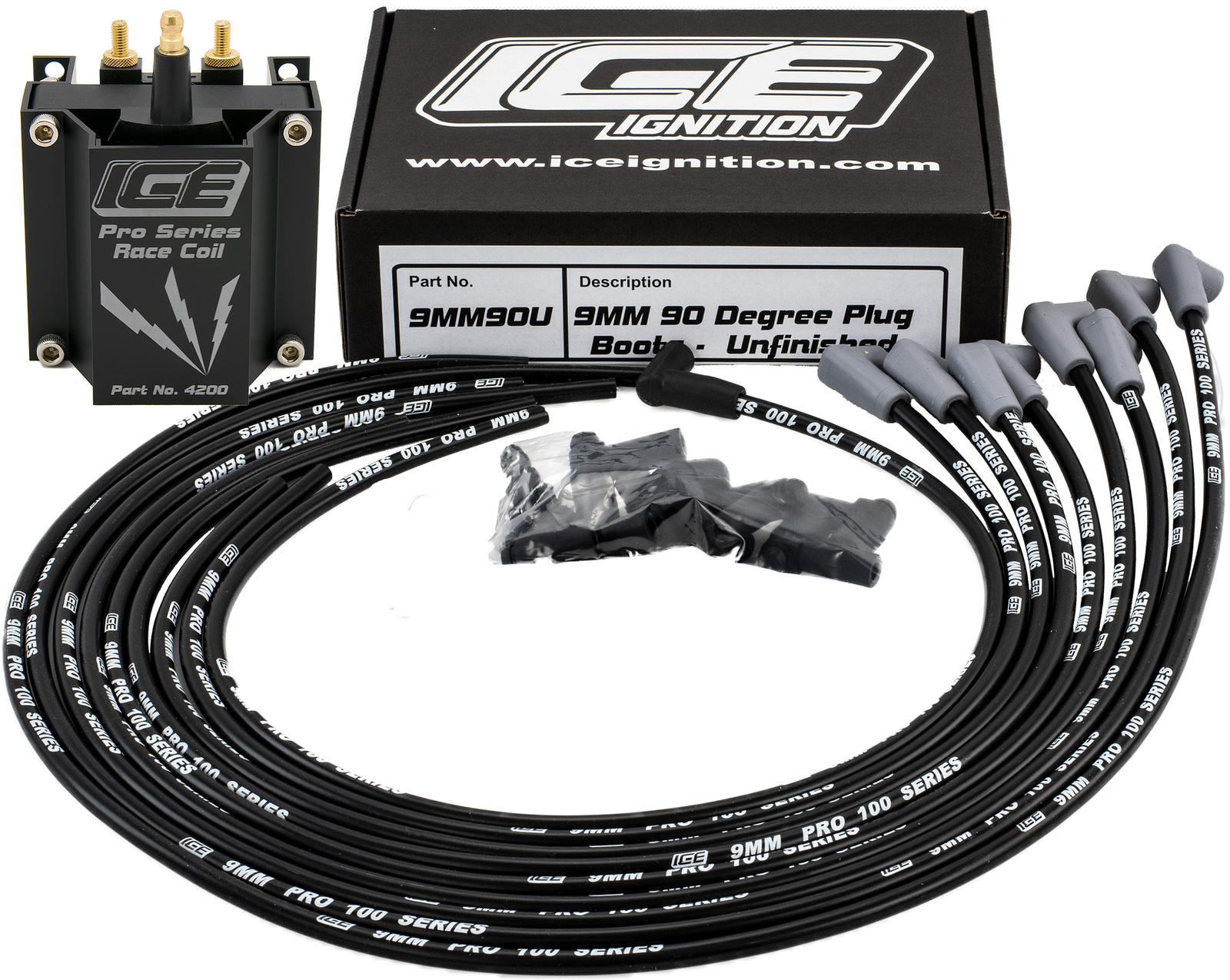

Pro 100 9 mm Leads & 4200 Coil Kit - V8 Universal, 90 Deg Spark Boots

Are you looking to create a unique installation? The ICE Ignition 9MM90U Pro 100 Ignition Leads will suit all V8 engines with:

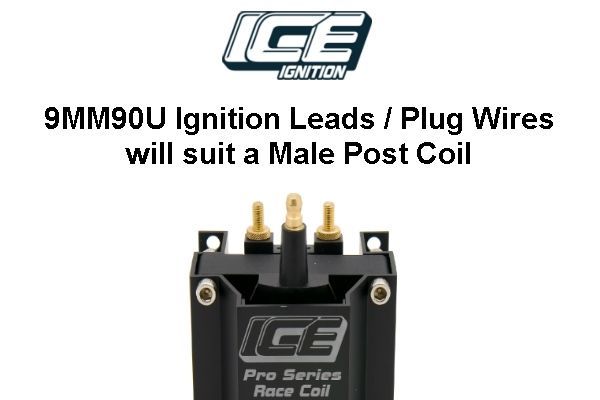

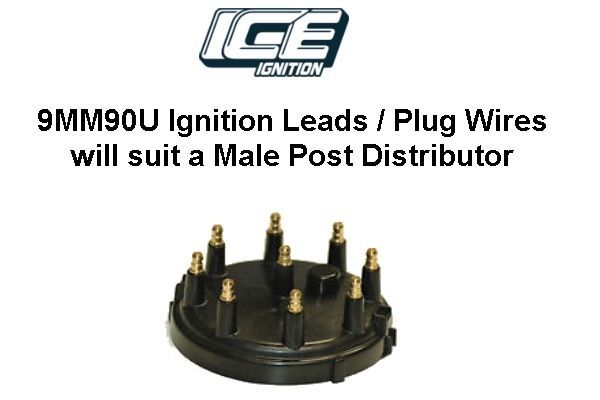

  • Male Post DistributorMALE Post Distributor            Male Post Coil MALE Post Coil

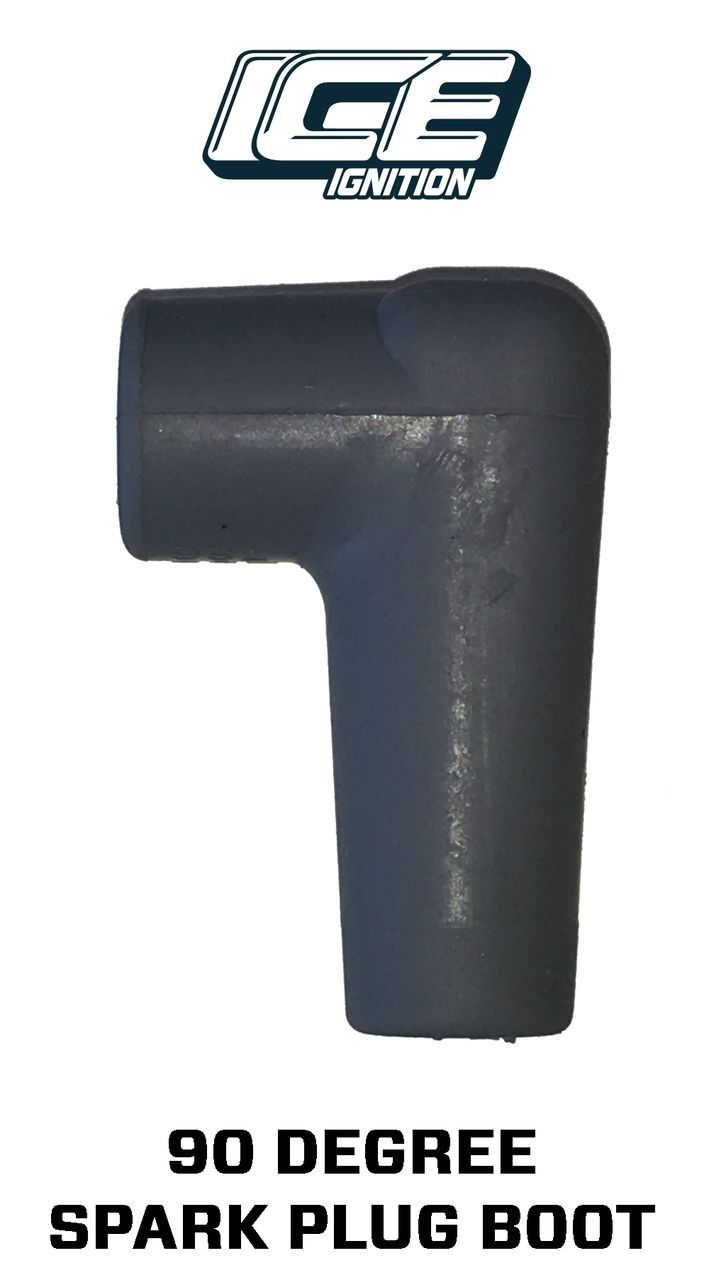

  • 90 Degree Spark Plug Boots90 Degree Spark Plug Boots

You can tailor this lead set to suit your needs at no further cost. You can change the following.

  • Lead Colour: BLACK (default), RED, BLUE
  • Distributor Post in Car: MALE POST (default), FEMALE POST
  • Coil Post in Car: MALE POST (default), FEMALE POST

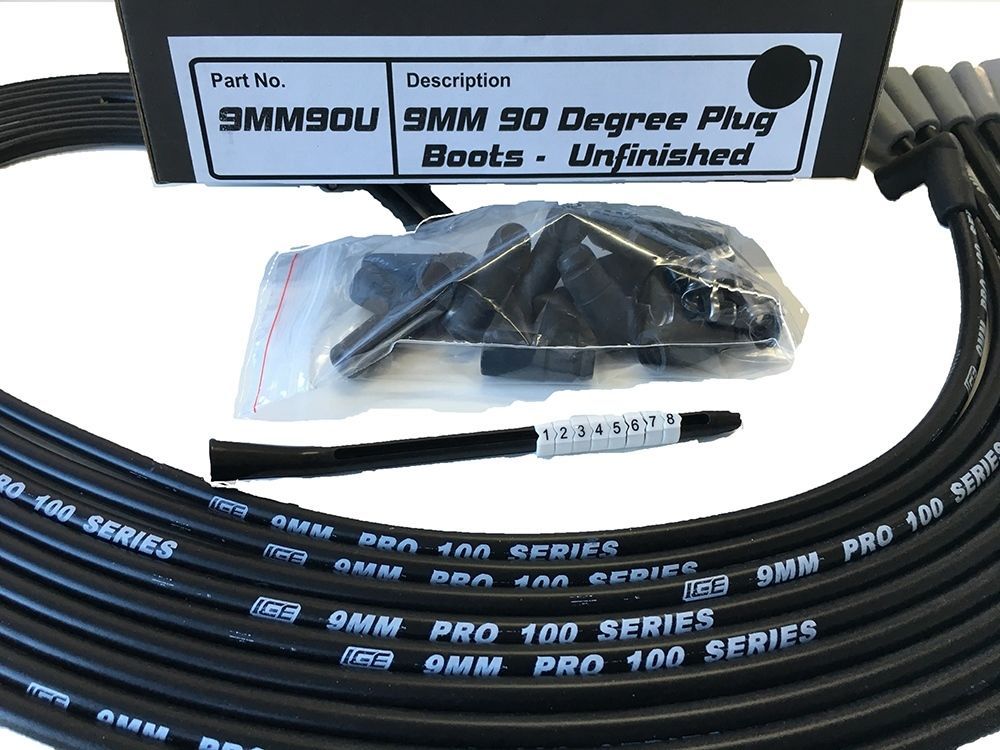

The ICE Ignition 9MM90U Pro 100 Series Ignition Leads / Plug Wires are a partially finished set of leads; one end is terminated, and the boots are fitted. The kit includes plugs and terminals required to finish the leads. To finish the leads, all you have to do is:

  1. Install the finished end on your engine.
  2. Route your ignition leads/plug wires to create the perfect look.
  3. Trim the leads to the required length.
  4. Complete the terminals and boots installation as per the provided instructions.

If you don't have a crimper, we recommend buying the ICE Ignition 2700 Plug Wire Crimpers. They suit the ICE Ignition 8 mm & 9 mm leads and give the perfect cut, strip and crimp every time. They are an option when you purchase your leads. Included in the kit is a set of numbered plug wire markers with an easy-to-install tool. This ensures correct ignition lead & spark plug installation.

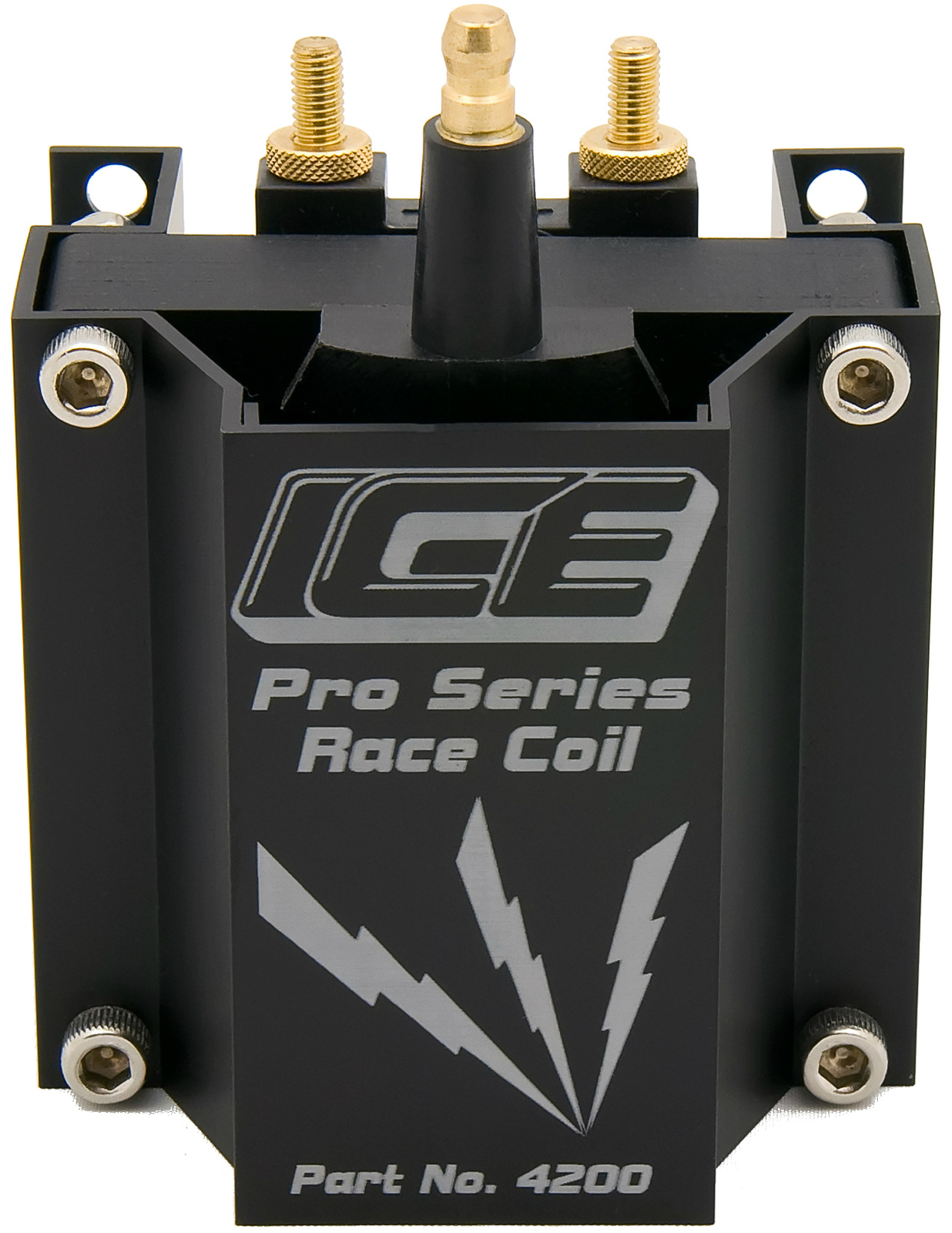

ICE Ignition 4200 Pro Series Race Coil; Naturally Aspirated engines

This kit includes the ICE Ignition 4200 Pro Series Coil, the most potent ignition coil in one compact size. The ICE Ignition 4200 Pro Series Race Ignition Coil delivers twice the energy of a standard ignition coil. It provides the highest possible intensity and duration to support the most demanding ignition systems. This coil is ideal for most street, strip, race and boating applications.

Why choose ICE Ignition Pro 100 9 mm Leads / Plug Wires?

  • More sparks mean a bigger combustion chamber explosion, improving performance.
  • ICE Ignition leads / Plug Wires ensure this by minimising resistance in the leads.
  • They are superconductive with an ultra-low resistance of 100 ohms per metre.
  • ICE Ignition Leads / Plug Wires are made from the high-quality ultra-low resistance spiral wound copper alloy core.
  • The alloy core is wrapped in ICE Ignition's proprietary insulation to provide maximum RF noise & heat shielding.
  • They are fitted with stainless steel "Snap Lock" fittings at the distributor and spark plug ends.
  • The boots are made from extreme-temperature silicone insulation and can withstand high temperatures.
  • The ICE Ignition 9MM90U Ignition Leads / Plug Wires are a finished set of leads. Just plug them in and go!
  • Plug wire markers with an easy-to-install tool included. This ensures correct ignition lead installation.

WHAT'S IN THE BOX?

  • 2 x 800 mm ICE Ignition 9MM90U Pro 100 Series Ignition Leads
  • 2 x 950 mm ICE Ignition 9MM90U Pro 100 Series Ignition Leads
  • 2 x 1,100 mm ICE Ignition 9MM90U Pro 100 Series Ignition Leads
  • 2 x 1,250 mm ICE Ignition 9MM90U Pro 100 Series Ignition Leads
  • 1 x 900 mm ICE Ignition 9MM90U Pro 100 Series Coil Lead
  • 9 x 90 Degree Stainless Steel "Snap Lock" terminals

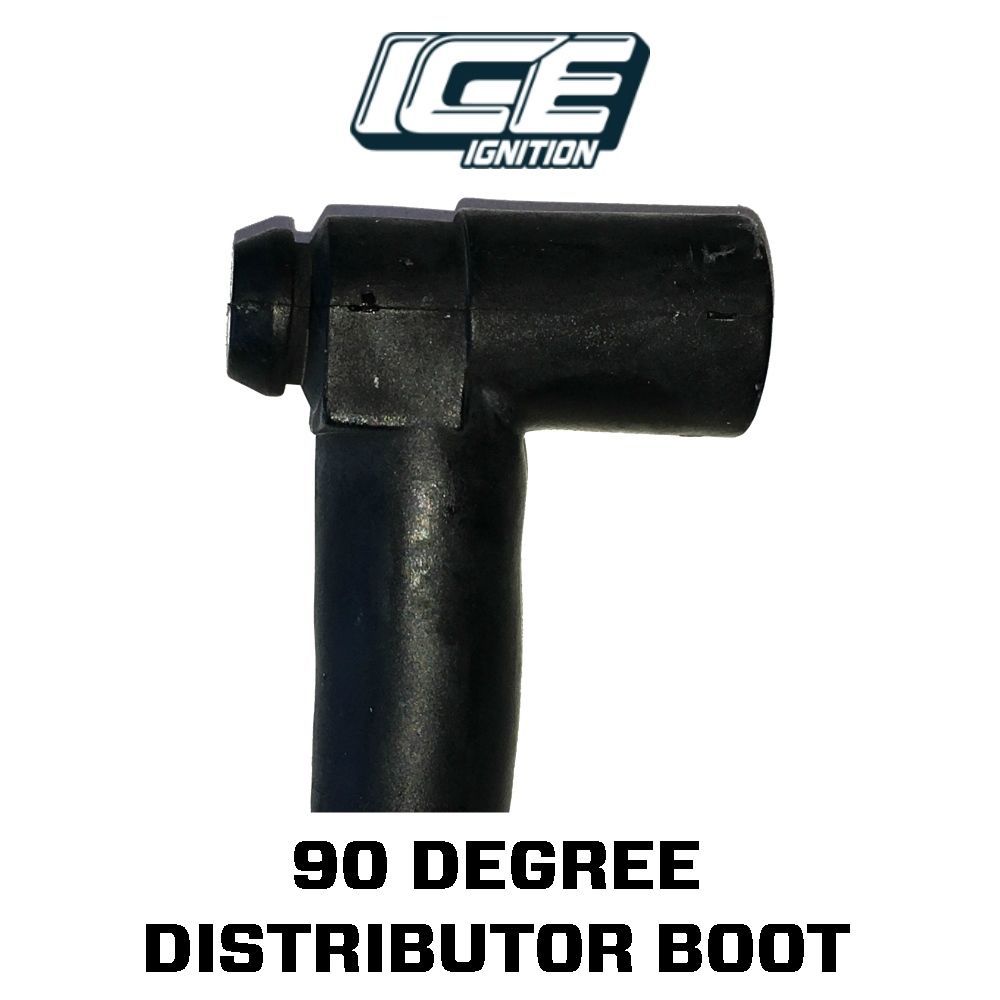

  • 8 x 90 Degree Distributor Boots
  • 1 x 90 Degree Coil Boot
  • 1 x ICE Ignition 4200 Pro Race Ignition Coil
  • 1 x Black anodised protective cover with integrated mounting bracket
  • 1 x Stainless steel mounting hardware
  • 1 x ICE Ignition 2800 Plug Wire Markers
  • Instruction Sheet
  • "ICE Ignition Plug Wires" Sticker

We offer a 3 year, non-transferable warranty covering defects in materials and workmanship if properly installed. If installation instructions have been followed and the product is found to be defective, Gear Campus will replace or arrange for repair if returned along with proof of purchase. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law. The foregoing is exclusive and in lieu of all other warranties or representations whether expressed or implied, including any implied warranty of merchanability or fitness. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages. Products must be returned as originally supplied. Warranty is void if products have been modified or tampered with in any way or installation instructions are not followed.

Product Features & Benefits

The ICE Ignition Pro 100 Lead set features:

  • Spiral wound copper alloy core
  • Ultra-low resistance of 100 ohms per metre
  • Delivers maximum spark and duration for improved performance.
  •  Built-in Radio Frequency Interference (RFI) minimization.
  • All boots made from extreme temperature silicone to withstand high temperatures.
  • Premium "Snap Lock" stainless steel Spark Plug, Distributor Cap & Coil fittings.
  • Numbered Lead Markers with easy to install tool to ensure correct lead fitment
  • Ready to Install Lead Set. No cutting or terminating of leads required.

ICE Ignition 9MM90U Pro 100 Ignition Leads / Plug Wires DIY V8 Universal

Engine Type: All V8 Engines
Lead Diameter: 9 mm
Lead Colour Choice: BLACK, RED or BLUE
Lead Resistance: 100 Ohms per metre
RFI Suppressive Leads: Yes
Lead Conductor:  Spiral wound copper alloy
Dist., Spark Plug & Coil Boot Insulation:  Extreme temp. silicone
Distributor Boot Type: 90 Degrees
Coil Boot Type: 90 Degrees
Spark Plug Boot Type: 90 Degrees
Distributor Cap Type: MALE Post
Coil Type: MALE Post
Lead Markers with easy to install tool: Included
SKU 9MM90U-4200
Barcode # 2000000003597
Brand ICE Ignition
Shipping Weight 4.2000kg
Shipping Width 0.480m
Shipping Height 0.270m
Shipping Length 0.210m
Shipping Cubic 0.027216000m3
Unit Of Measure ea
