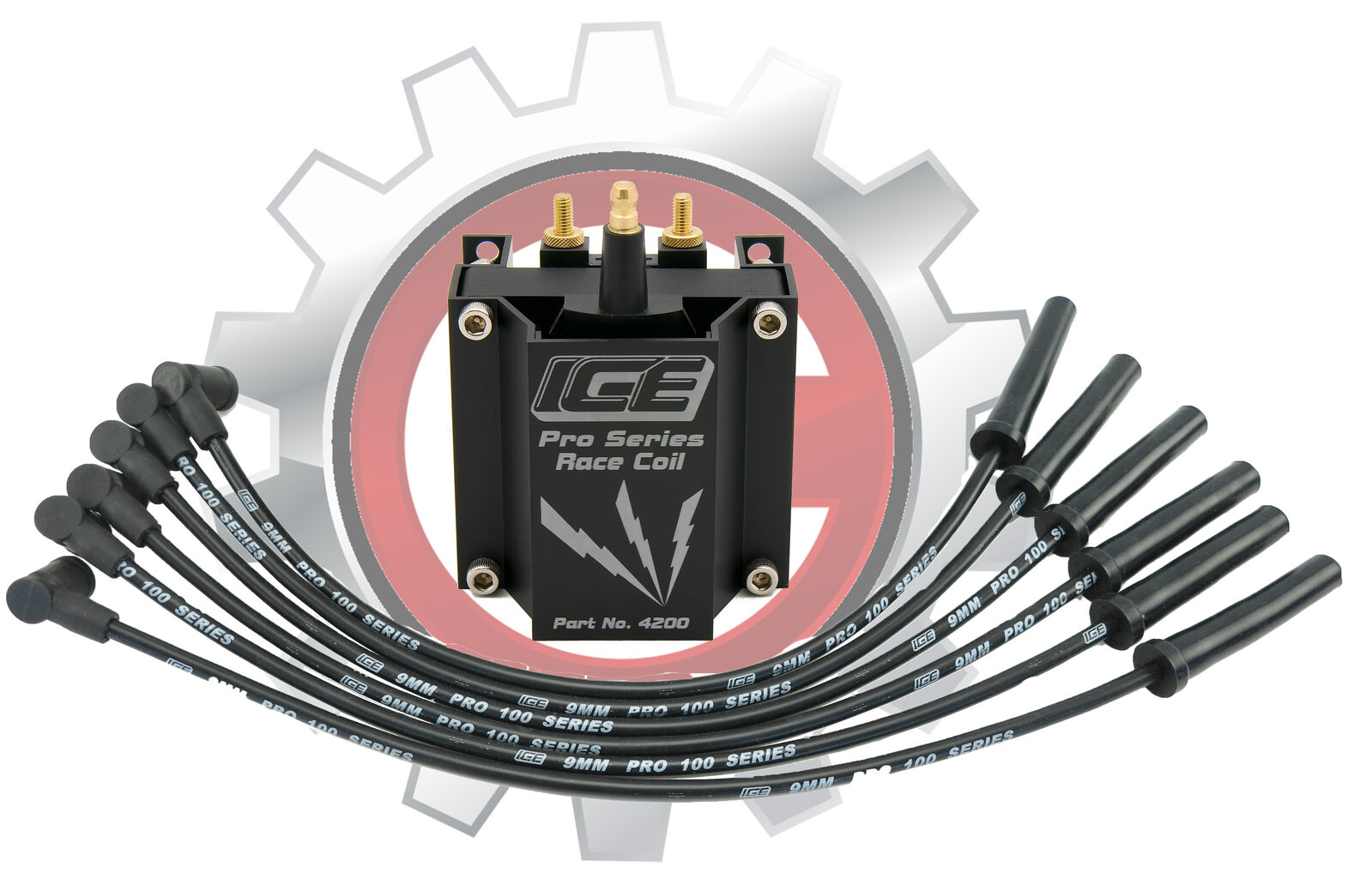

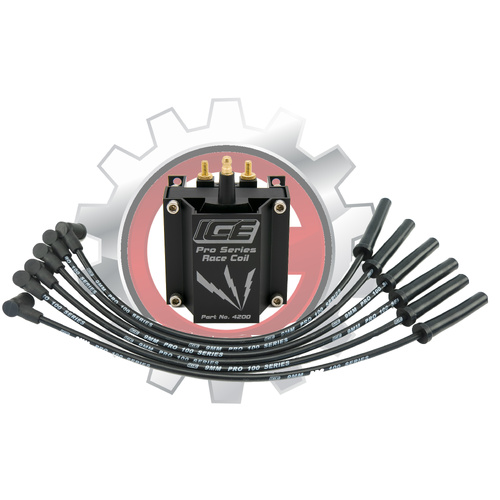

Pro 100 9mm Leads & 4200 Coil Kit - Hemi 215 to 265, MALE Dist & Coil

The ICE Ignition 9CHR602 Pro 100 Series Ignition Leads will suit all 215 to 265 Hemi 6 engines with:

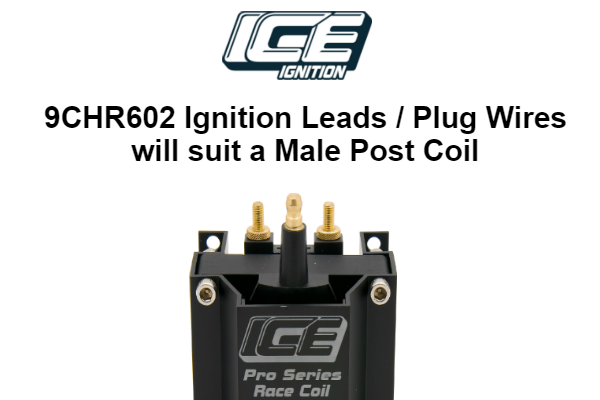

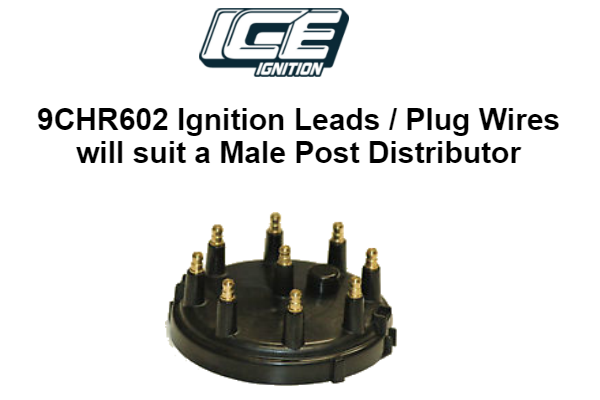

  • Male Post Distributor MALE Post Distributor   Male Post Coil MALE Post Coil​

  •           Straight Spark Plug Boots

​You can tailor this lead set to suit your needs at no further cost. You can change the following.

  1. Lead Colour: BLACK (default), RED, BLUE

  2. Distributor Post in Car: MALE POST (default), FEMALE POST

  3. Coil Post in Car: MALE POST (default), FEMALE POST

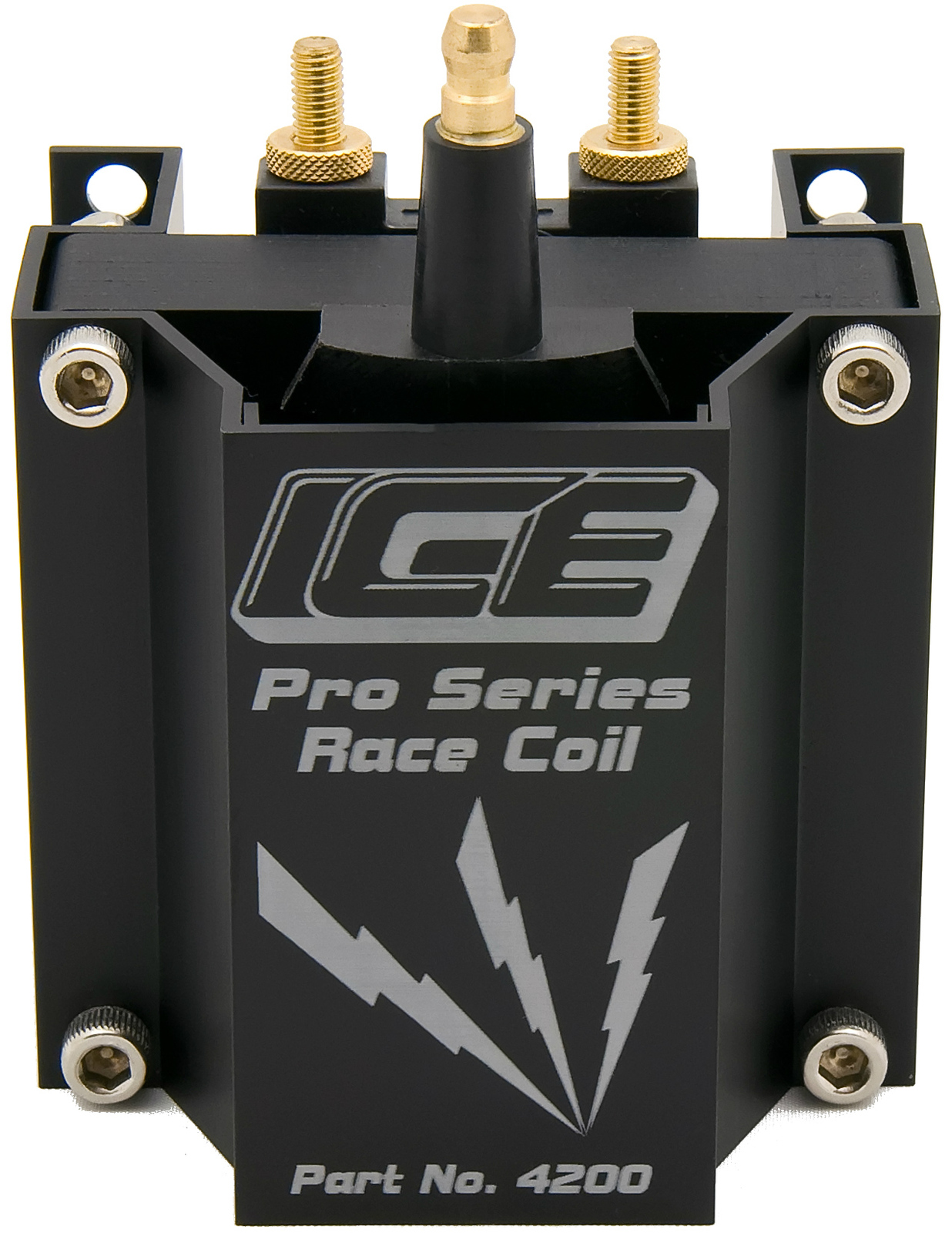

ICE Ignition 4200 Pro Series Race Coil; Naturally Aspirated engines

This kit includes the ICE Ignition 4200 Pro Series Coil, the most potent ignition coil in one compact size. The ICE Ignition 4200 Pro Series Race Ignition Coil delivers twice the energy of a standard ignition coil. It provides the highest possible intensity and duration to support the most demanding ignition systems. This coil is ideal for most street, strip, race and boating applications.

Why choose ICE Ignition Pro 100 9 mm Leads / Plug Wires?

  • More spark means a bigger explosion in the combustion chamber, this improves performance.
  • ICE Ignition leads / Plug Wires ensure this by minimising resistance in the leads.
  • They are superconductive with an ultra-low resistance of 100 ohms per metre.
  • ICE Ignition Leads / Plug Wires are made from the high quality ultra-low resistance spiral wound copper alloy core.
  • The alloy core is wrapped in ICE Ignition's proprietary insulation to provide maximum RF noise & heat shielding.
  • They are fitted with stainless steel "Snap Lock" fittings at the distributor and spark plug ends.
  • The boots are made from extreme-temperature silicone insulation and can withstand high temperatures.
  • The ICE Ignition 9CHR602 Ignition Leads / Plug Wires are a finished set of leads. Just plug them in and go!
  • Plug wire markers with an easy-to-install tool are included. This ensures correct ignition lead installation.

WHAT'S IN THE BOX?

  • 6 x ICE Ignition 9CHR602 Pro 100 Series Ignition Leads
  • 1 x ICE Ignition 9CHR602 Pro 100 Series Coil Lead
  • 1 x ICE Ignition 2800 Plug Wire Markers
  • 1 x ICE Ignition 4200 Pro Race Ignition Coil
  • 1 x Black anodised protective cover with integrated mounting bracket
  • 1 x Stainless steel mounting hardware
  • Instruction Sheet
  • "ICE Ignition Plug Wires" Sticker

We offer a 3 year, non-transferable warranty covering defects in materials and workmanship if properly installed. If installation instructions have been followed and the product is found to be defective, Gear Campus will replace or arrange for repair if returned along with proof of purchase. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law. The foregoing is exclusive and in lieu of all other warranties or representations whether expressed or implied, including any implied warranty of merchanability or fitness. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages. Products must be returned as originally supplied. Warranty is void if products have been modified or tampered with in any way or installation instructions are not followed.

Product Features & Benefits

All ICE Ignition Pro 100 Series Ignition Leads / Plug Wire sets feature:

  • Spiral wound copper alloy core with an ultra-low resistance of 100 ohms per metre (35 ohms per foot).
  • Delivers maximum spark and duration for improved performance.
  • Built in Radio Frequency Interference (RFI) minimization.
  • Spark Plug, Distributor & Coil Boots made from extreme temperature silicone to withstand high temperatures.
  • Premium quality "Snap Lock" stainless steel Spark Plug, Distributor Cap & Coil fittings.
  • Numbered Plug Wire Markers with easy to install tool ensures your ignition leads are always in the right place.
  • Ready to install for each specific engine application. No cutting or terminating of leads required.

ICE Ignition 9CH6602 Pro 100 Ignition Leads Hemi 6
Engine Type: 215 to 265 Hemi 6 Engines
Lead Diameter: 9 mm
Lead Colour Choice: BLACK, RED or BLUE
Lead Resistance: 100 Ohms per metre
RFI Suppressive Leads: Yes
Lead Conductor:  Spiral wound copper alloy core
Distributor, Spark Plug & Coil Boot Insulation:  Extreme temperature silicone
Distributor Boot Type: 90 Degrees
Coil Boot Type: 90 Degrees
Spark Plug Boot Type: Straight Degrees
Distributor Cap Type: MALE Post
Coil Type: MALE Post
Ignition Lead / Plug Wire fitment: N/A
Plug Wire Markers with easy to install tool: Included























SKU 9CHR602-4200
Barcode # 2000000003443
Brand ICE Ignition
Shipping Weight 4.2000kg
Shipping Width 0.480m
Shipping Height 0.270m
Shipping Length 0.210m
Shipping Cubic 0.027216000m3
Unit Of Measure ea
