Pro 100 9mm Leads & ICE 4200 Coil Kit; Commodore 1988-97 VN-VS 5.0-5.7 Litre EFI V8
Holden V8's with VN Style heads;
More infoNo Cost Options - The default options are as per below. They can be changed
Secure Payment Methods
Calculate Shipping
Pro 100 9mm Leads & 4200 Coil Kit - Commodore 1988-97 VN-VS 5.0-5.7 Litre EFI V8
The ICE Ignition 9HOL803 Pro 100 Ignition Leads will suit all 1988 to 1997 VN to VS Holden Commodore 5.0 & 5.7 Litre EFI V8s with VN-style heads and the following specifications.

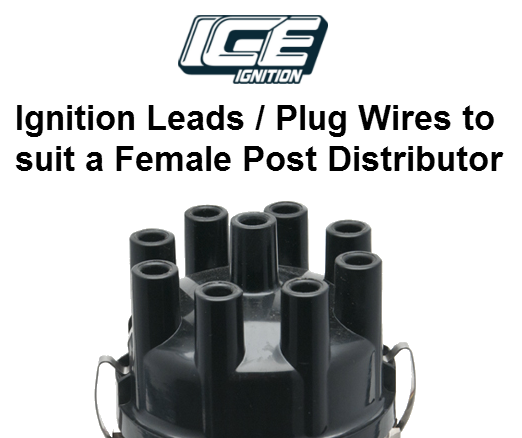

FEMALE Post Distributor

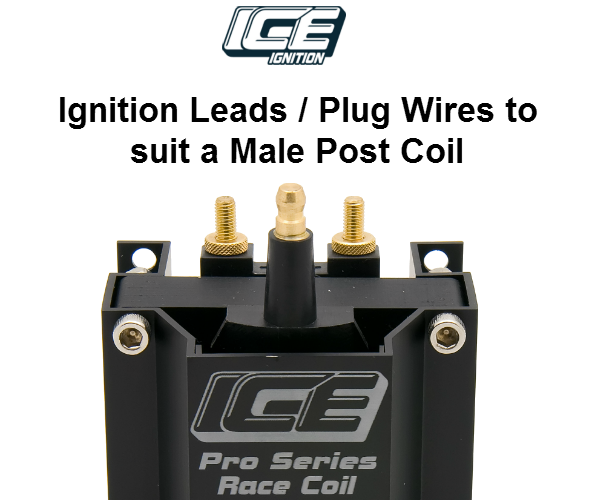

MALE Post Coil-
Straight Spark Plug Boots
fitment = Direct Factory Replacement
This lead set is a direct-factory replacement for ignition leads found on the 1988 to 1997 VN to VS Holden Commodore 5.0 & 5.7 Litre EFI V8s. They can be installed in the same location as the original factory ignition leads.
You can tailor this lead set to suit your needs at no further cost. You can change the following.
- Lead Colour: BLACK (default), RED, BLUE
- Distributor Post in Car: FEMALE POST (default), MALE POST
- Coil Post in Car: MALE POST (default), FEMALE POST

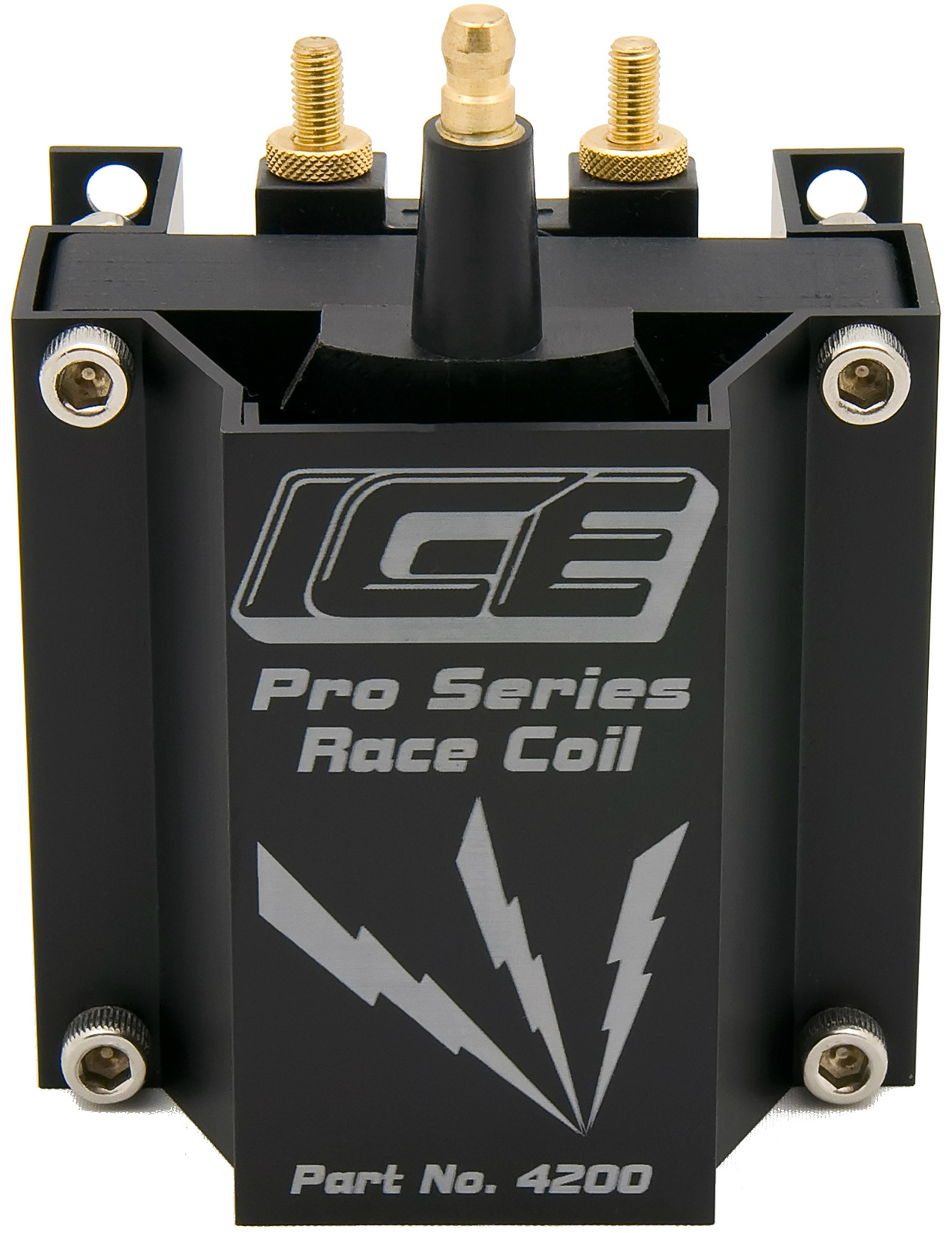

ICE Ignition 4200 Pro Series Race Coil; Naturally Aspirated engines
This kit includes the ICE Ignition 4200 Pro Series Coil, the most potent ignition coil in one compact size. The ICE Ignition 4200 Pro Series Race Ignition Coil delivers twice the energy of a standard ignition coil. It provides the highest possible intensity and duration to support the most demanding ignition systems. This coil is ideal for most street, strip, race and boating applications.
Why choose ICE Ignition Pro 100 9 mm Leads / Plug Wires?
- More spark means a bigger explosion in the combustion chamber, this improves performance.
- ICE Ignition leads / Plug Wires ensure this by minimising resistance in the leads.
- They are superconductive with an ultra-low resistance of 100 ohms per metre.
ICE Ignition Leads / Plug Wires are made from the high-quality ultra-low resistance spiral wound copper alloy core. - The alloy core is wrapped in ICE Ignition's proprietary insulation to provide maximum RF noise & heat shielding.
They are fitted with stainless steel "Snap Lock" fittings at the distributor and spark plug ends. The boots are made from extreme-temperature silicone insulation and can withstand high temperatures. The ICE Ignition 9HOL803 Ignition Leads / Plug Wires are a finished set of leads. Just plug them in and go! Plug wire markers with an easy-to-install tool included. This ensures correct ignition lead installation.

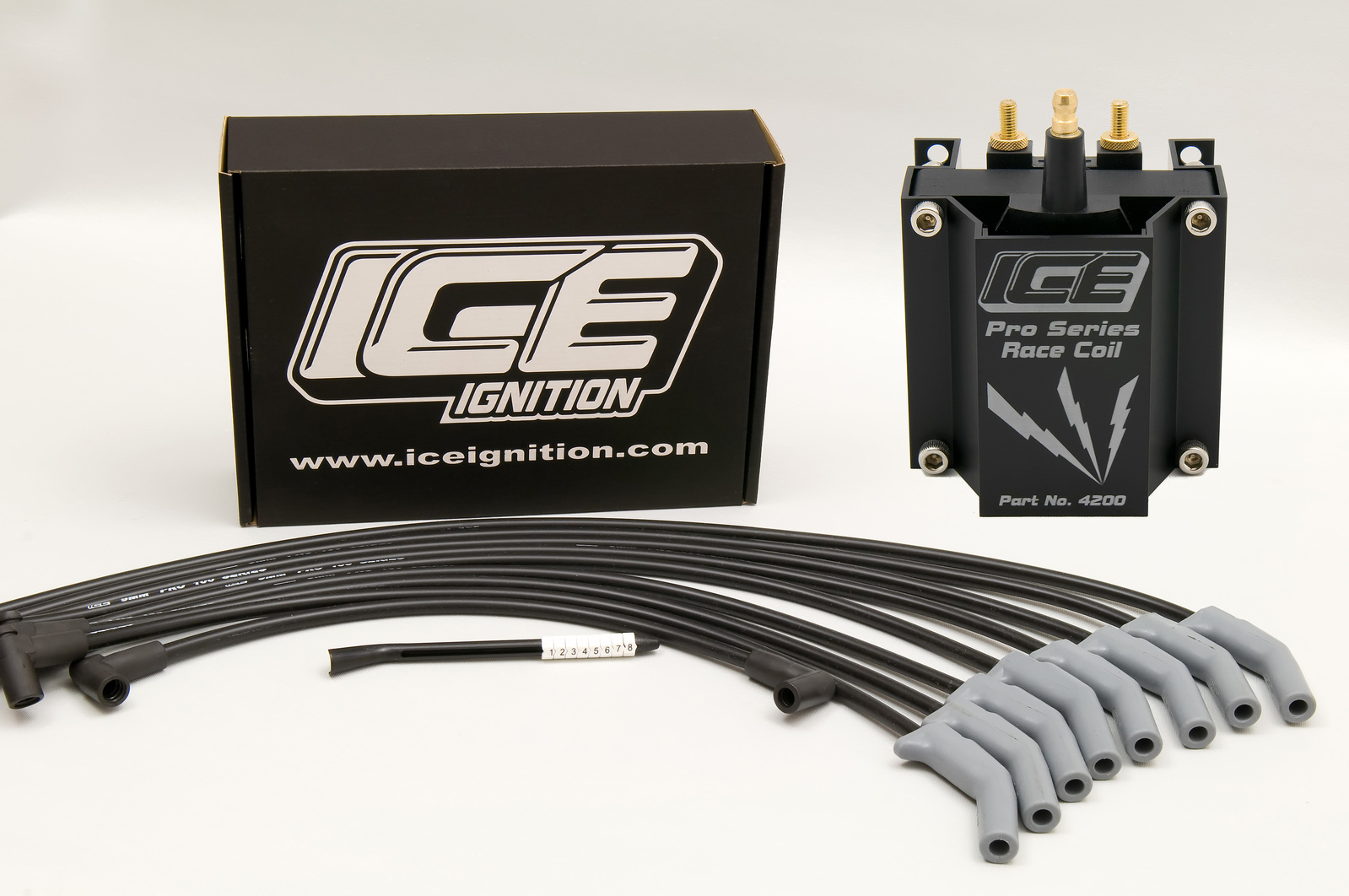

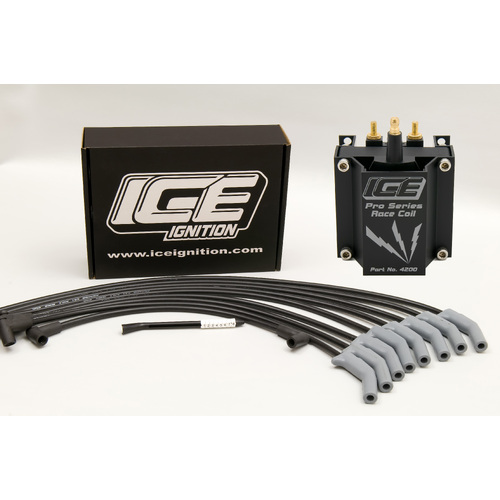

WHAT'S IN THE BOX?
- 8 x ICE Ignition 9HOL803 Pro 100 Series Ignition Leads
- 1 x ICE Ignition 9HOL803 Pro 100 Series Coil Lead
- 1 x ICE Ignition 2800 Plug Wire Markers
- 1 x ICE Ignition 4200 Pro Race Ignition Coil
- 1 x Black anodised protective cover with integrated mounting bracket
- 1 x Stainless steel mounting hardware
- Instruction Sheet
- "ICE Ignition Plug Wires" Sticker
We offer a 3 year, non-transferable warranty covering defects in materials and workmanship if properly installed. If installation instructions have been followed and the product is found to be defective, Gear Campus will replace or arrange for repair if returned along with proof of purchase. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law. The foregoing is exclusive and in lieu of all other warranties or representations whether expressed or implied, including any implied warranty of merchanability or fitness. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages. Products must be returned as originally supplied. Warranty is void if products have been modified or tampered with in any way or installation instructions are not followed.
Product Features & Benefits
The ICE Ignition Pro 100 Lead set features:
- Spiral wound copper alloy core
- Ultra-low resistance of 100 ohms per metre
- Delivers maximum spark and duration for improved performance.
- Built-in Radio Frequency Interference (RFI) minimization.
- All boots made from extreme temperature silicone to withstand high temperatures.
- Premium "Snap Lock" stainless steel Spark Plug, Distributor Cap & Coil fittings.
- Numbered Lead Markers with easy to install tool to ensure correct lead fitment
- Ready to Install Lead Set. No cutting or terminating of leads required.
| Engine Type: | 1988-1997 VN-VS Commodore 5.0L & 5.7L V8 |
| Lead Diameter: | 9 mm |
| Lead Colour Choice: | BLACK |
| Lead Resistance: | 100 Ohms per metre |
| RFI Suppressive Leads: | Yes |
| Lead Conductor: | Spiral wound copper alloy |
| Dist., Spark Plug & Coil Boot Insulation: | Extreme temp. silicone |
| Distributor Boot Type: | 90 Degrees |
| Coil Boot Type: | 90 Degrees |
| Spark Plug Boot Type: | Straight |
| Distributor Cap Type: | FEMALE Post |
| Coil Type: | MALE Post |
| Ignition Lead / Plug Wire fitment: | Direct Factory Replacement |
| Lead Markers with easy to install tool: | Included |
| SKU | 9HOL803-4200 |
| Barcode # | 2000000003504 |
| Brand | ICE Ignition |
| Shipping Weight | 4.2000kg |
| Shipping Width | 0.480m |
| Shipping Height | 0.270m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.027216000m3 |
| Unit Of Measure | ea |
