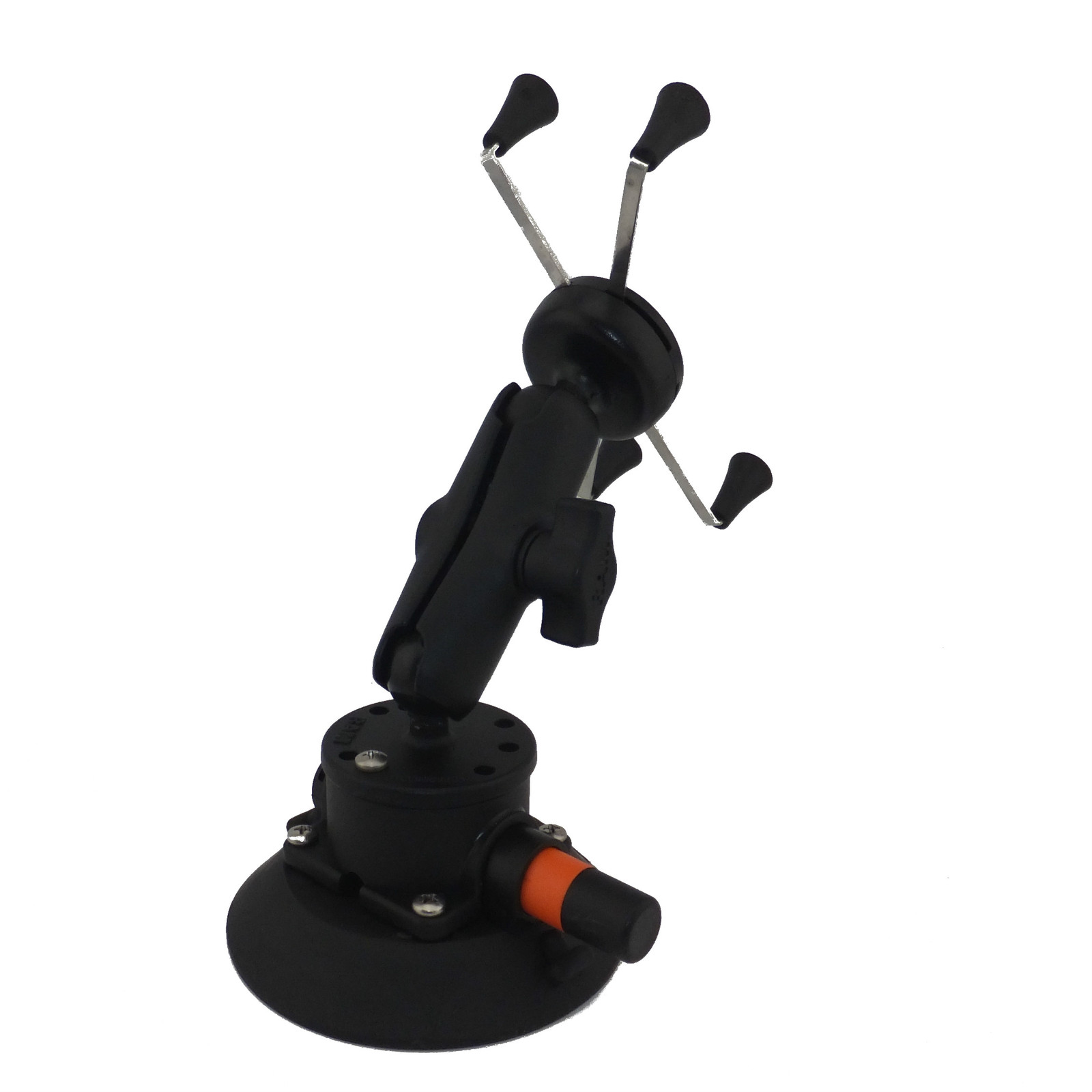

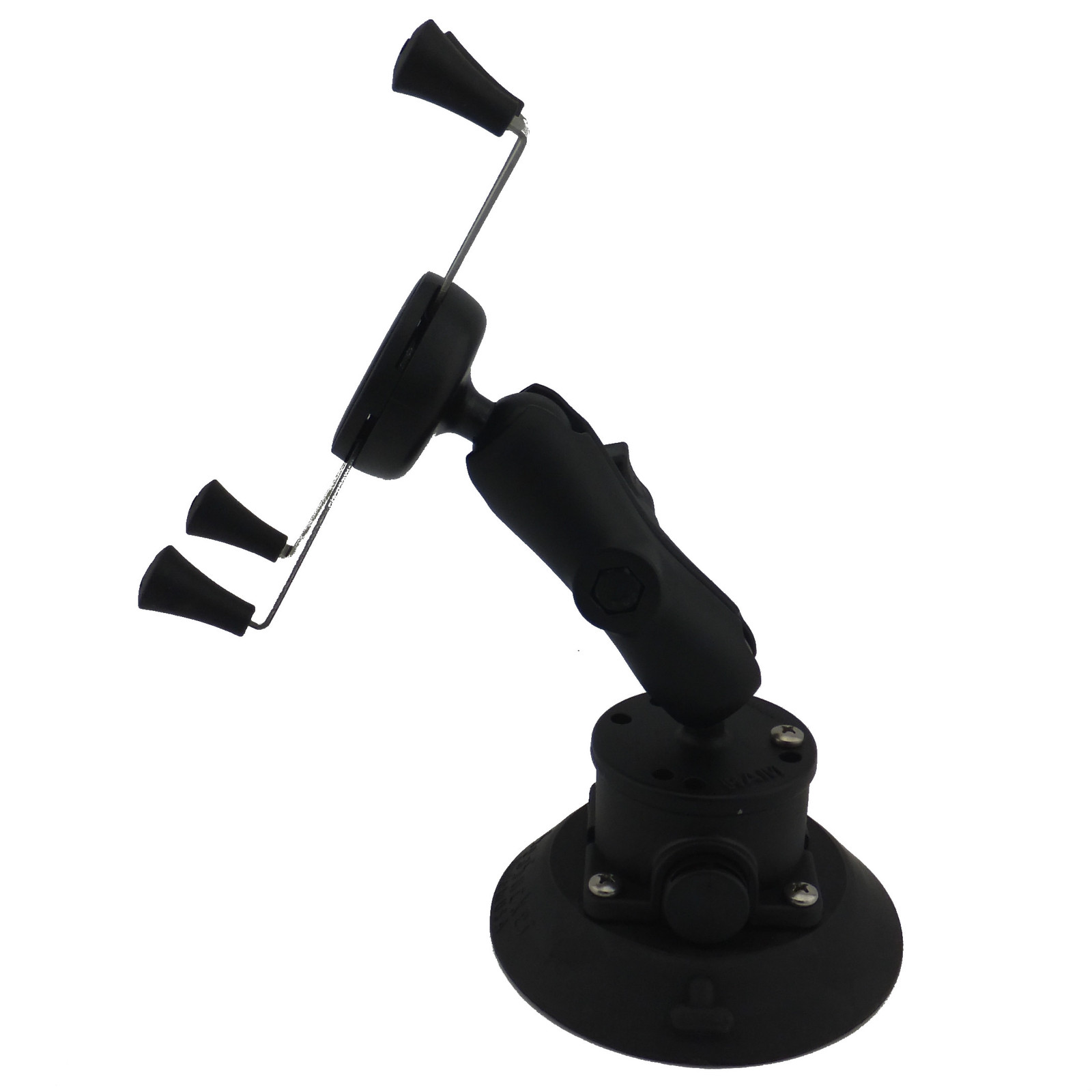

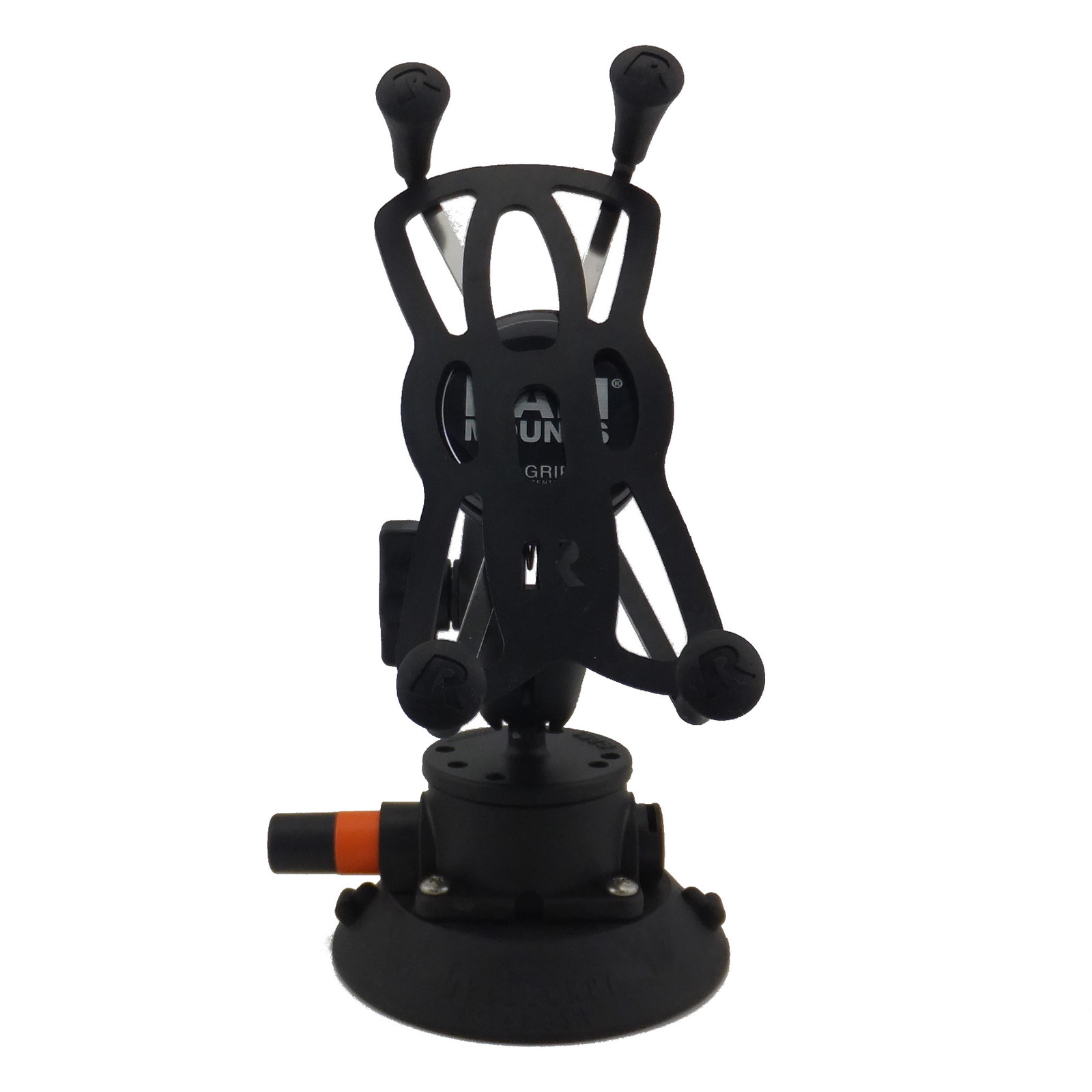

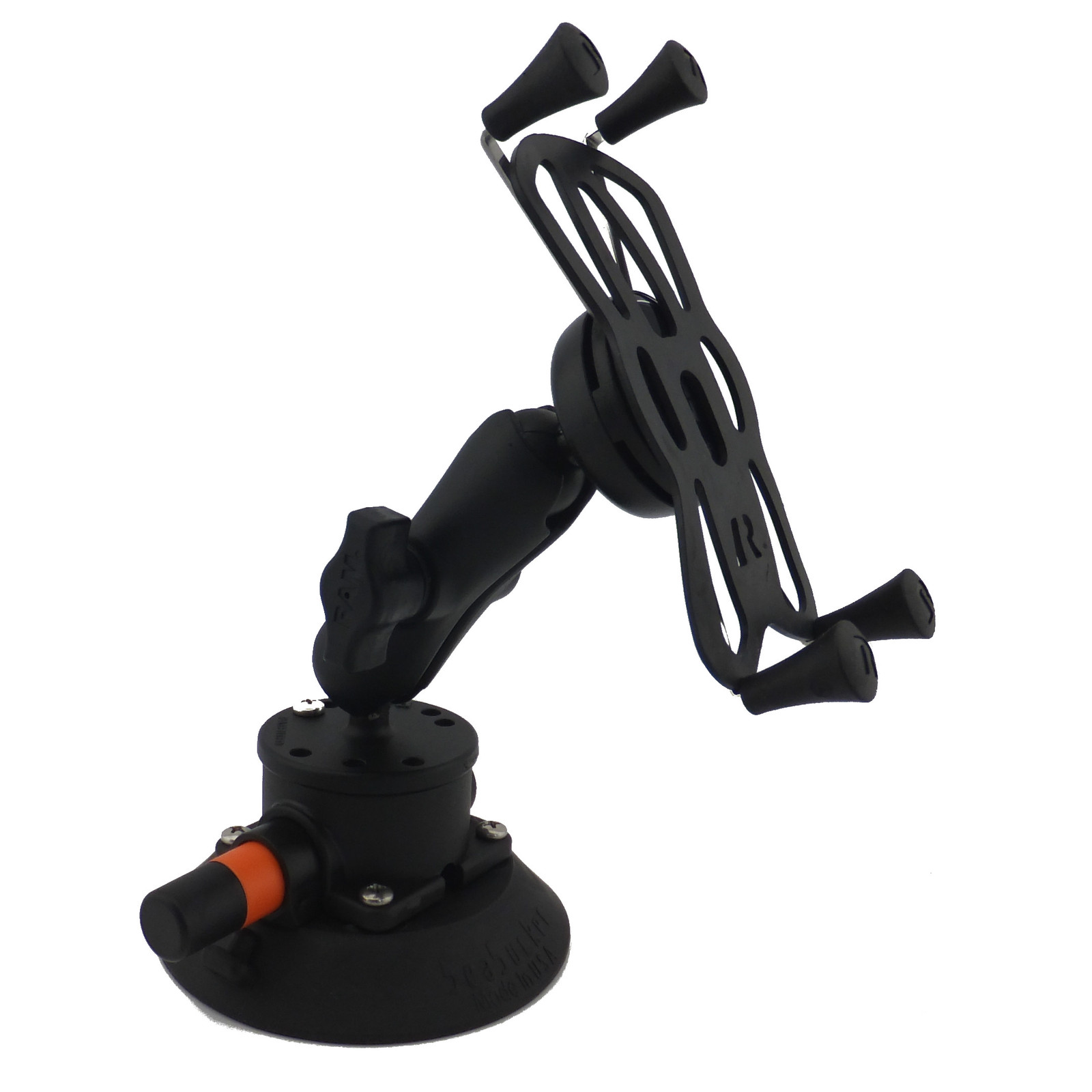

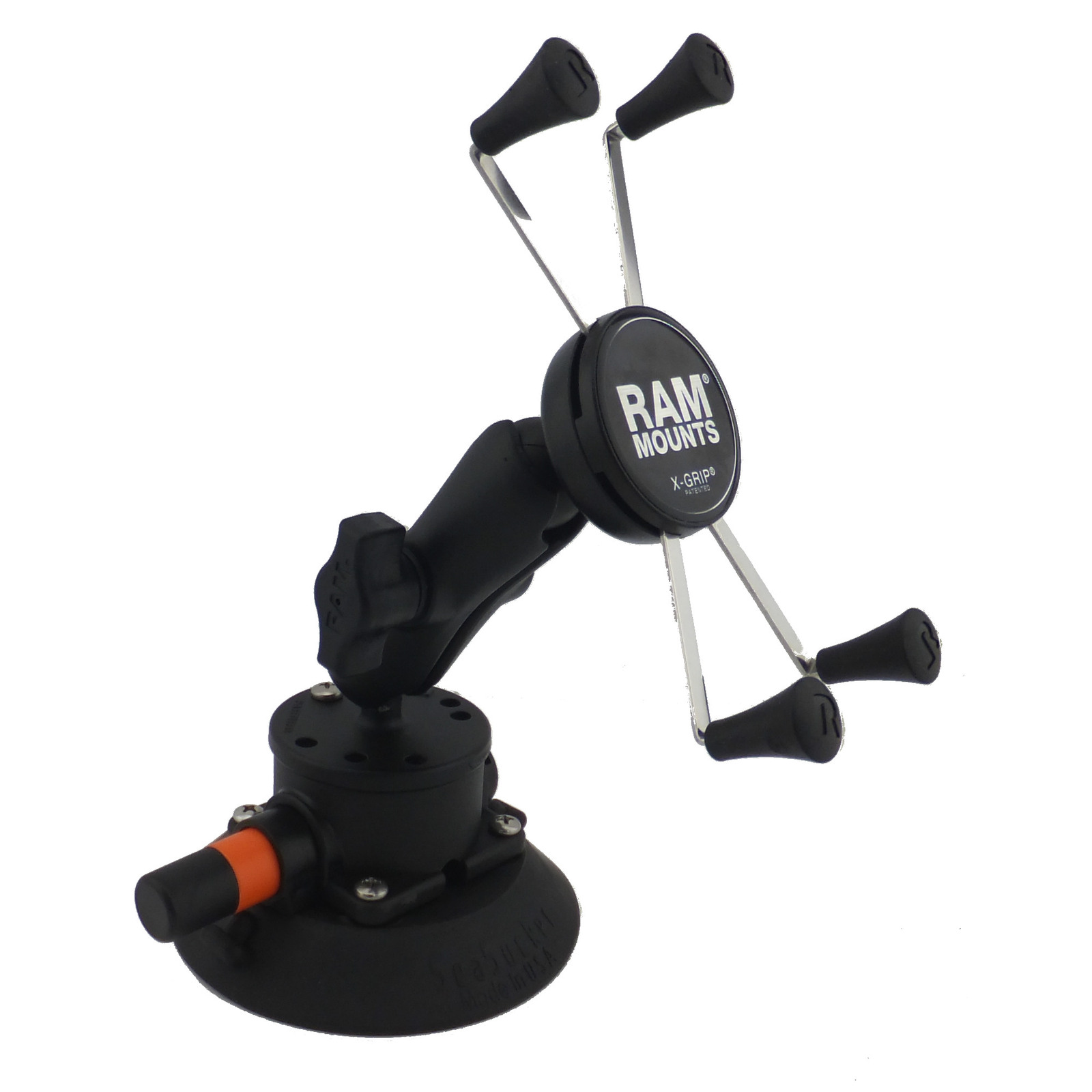

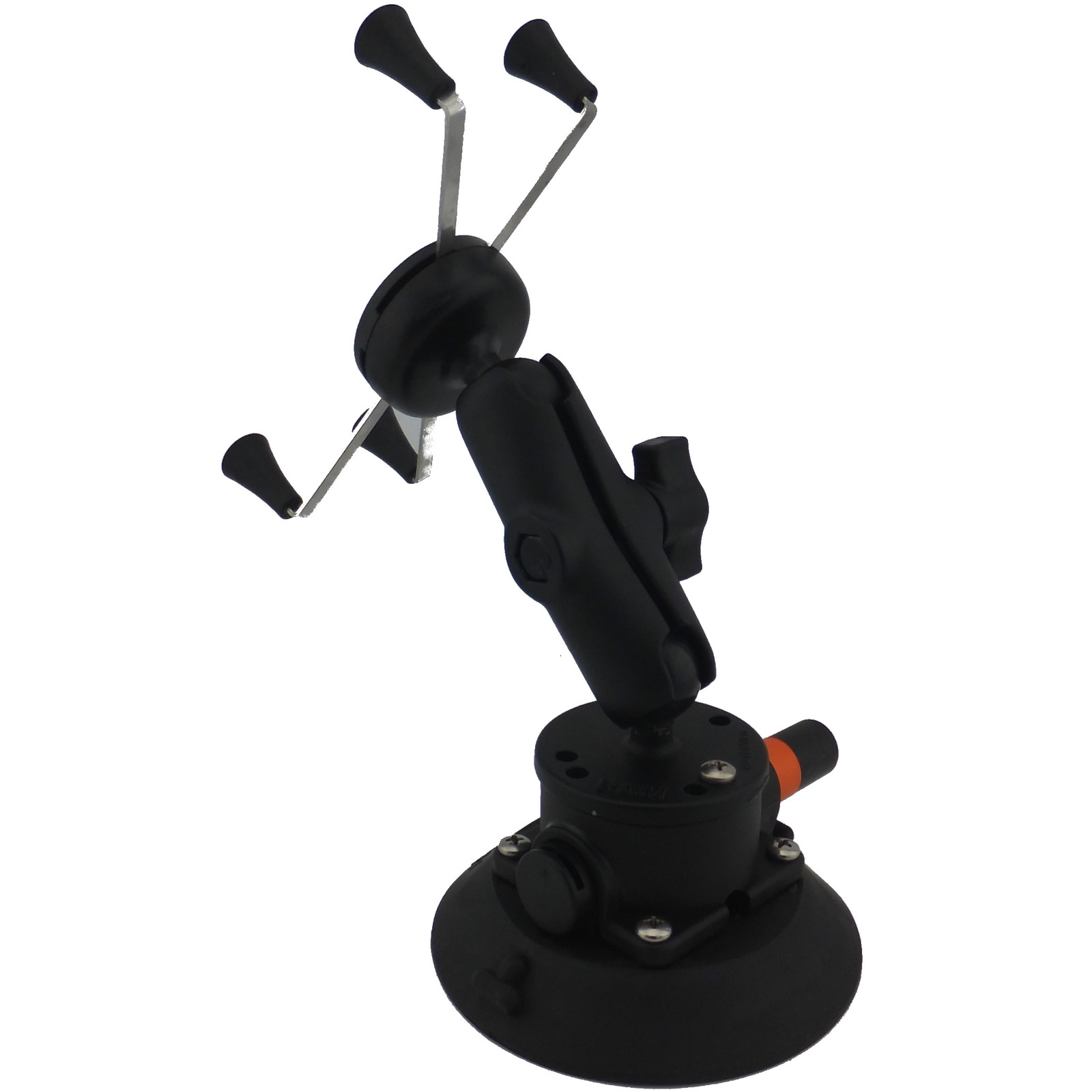

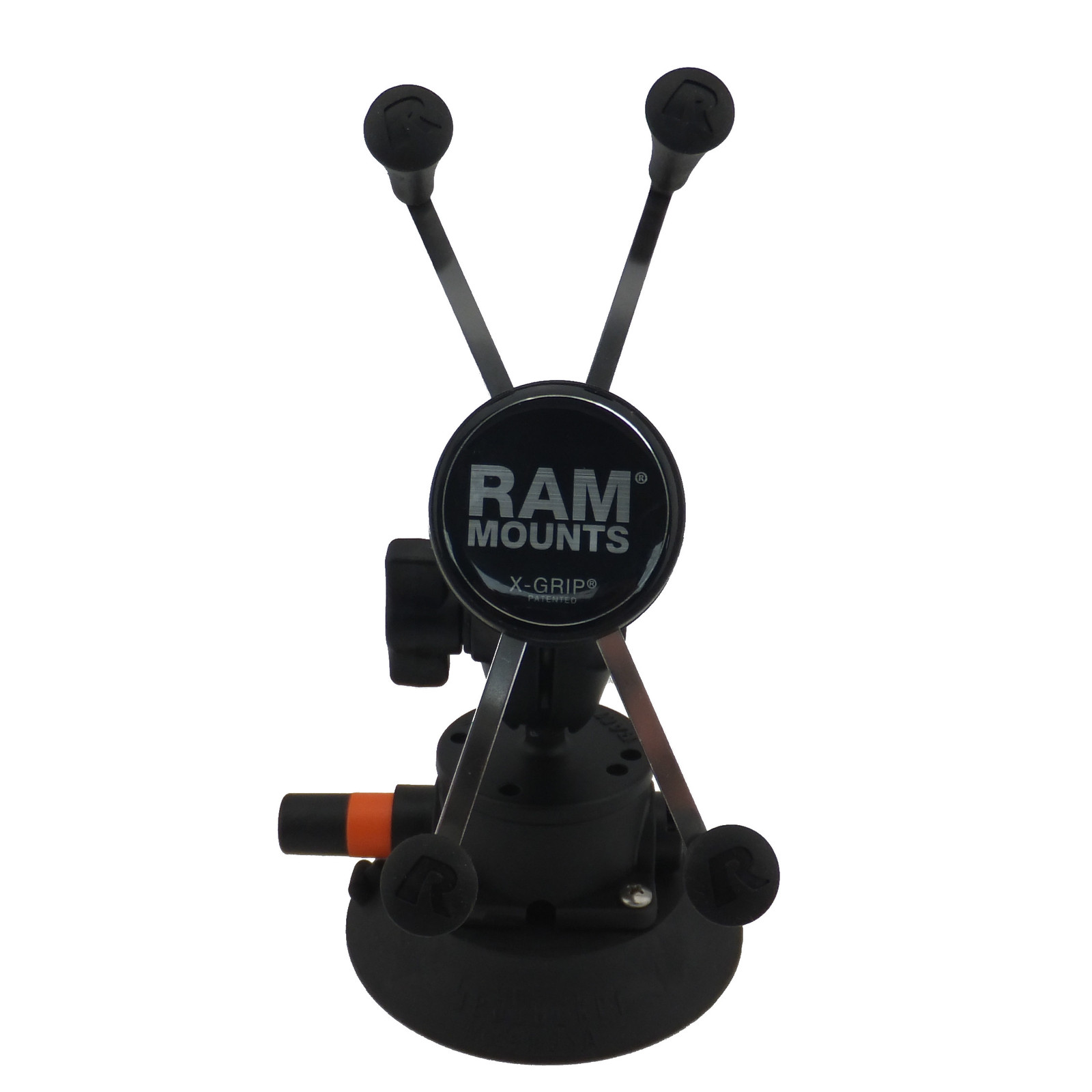

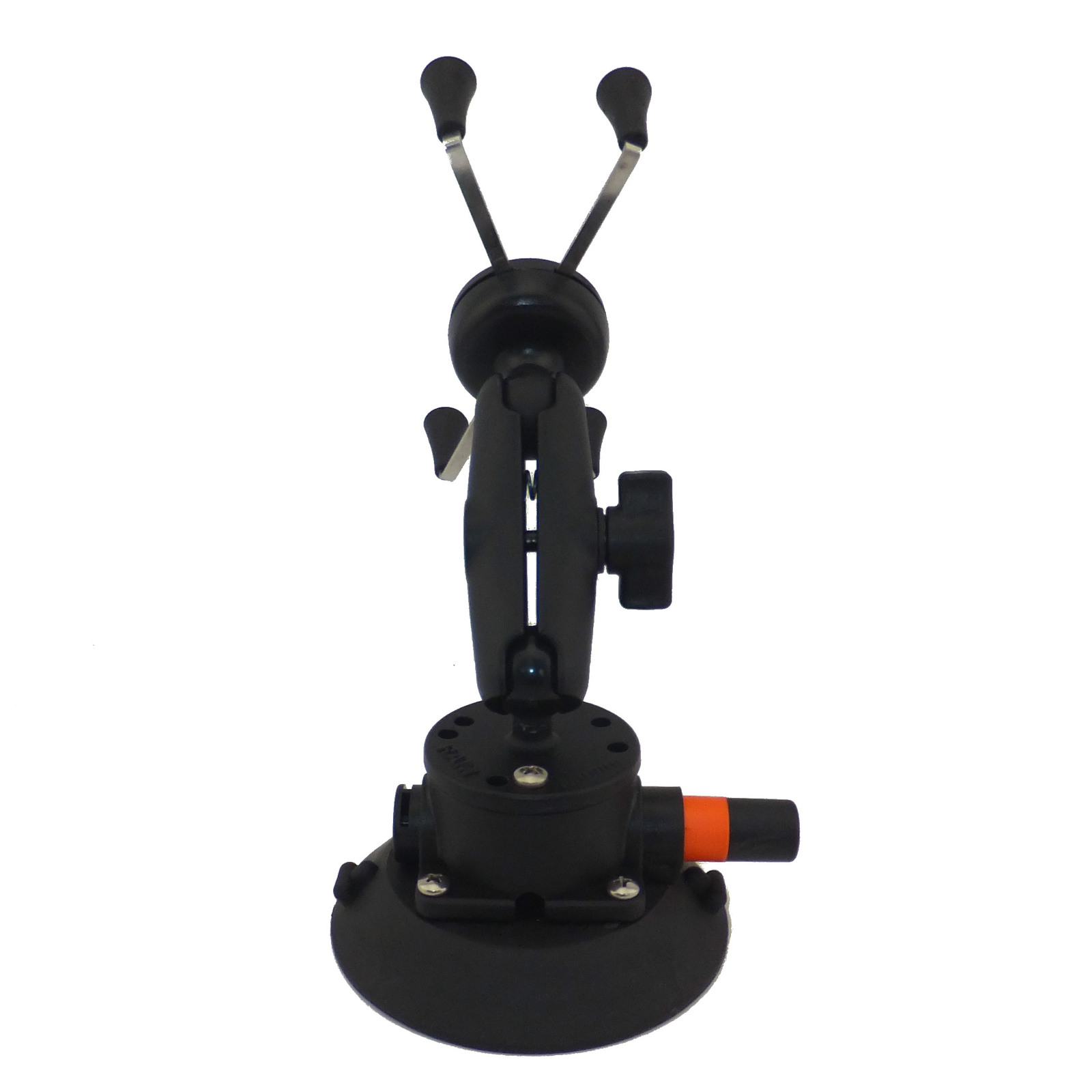

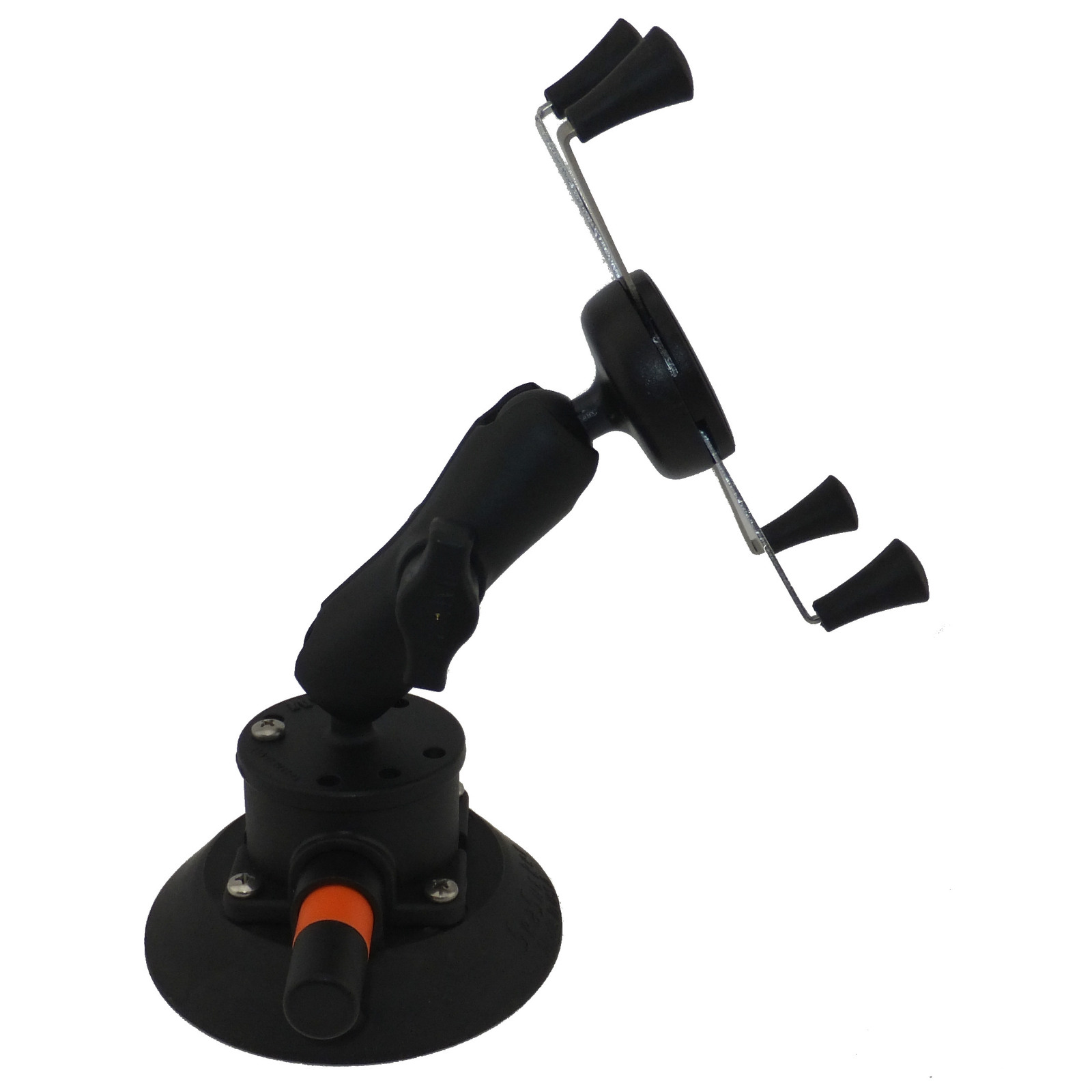

RAM X-Grip Large Smartphone Mount - Extreme Edition

The RAM X-Grip Large Smartphone Mount - Extreme Edition accommodates most large smartphones and phablet devices. This smartphone mount ensures your smartphone will not move once placed in the holder and also minimises screen vibration. Included is the RAM Tether to ensure your smartphone stays secure in the most rugged environments. It's fully adjustable thanks to the RAM patented ball and claw technology.

The RAM X-Grip Large Smartphone Mount - Extreme Edition uses the RAM-HOL-UN10BU X-Grip Smartphone Mount compatible with most large smartphones. The X-Grip clamp dimensions are minimum width of 44.45 mm and a minimum height of 139.7 mm. Rotate the X-Grip 90 degrees and the dimensions are Maximum widths: 114.3 mm and minimum height: 82.55 mm. The smartphone mount allows for access to charging ports.

Included in the SeaSucker RAM Smartphone Mount is a RAM B-Sized Ball/Plate/Stud to provide a secure attachment to the vacuum mount and a RAM B-Sized Black Socket Arm.

The 114 mm Black Vacuum Mount Explained

The SeaSucker 114 mm Vacuum Mount is an ideal way to mount accessories without drilling any holes! It is incredibly strong (pull rated up to 45 kg); will attach to many non-skid or textured surfaces including painted plaster. All metal parts are high grade stainless steel including the pump spring, for extra durability.

The housing is compatible with RAM products, video and photographic equipment via the centre ¼-20 stainless steel thread. Included is the SeaSucker standard 114 mm diameter vacuum cover.

WHAT'S IN THE BOX?

The RAM X-Grip Large Smartphone Mount - Extreme Edition  includes

  • 1 x RAM-HOL-UN10BU Adjustable Smartphone Mount
  • 1 x RAM Tether
  • 1 x RAM-B-201BU B-Sized Black Socket Arm
  • 1 x RAM-B-202AU B-Sized Ball/Plate/Stud (pre-installed onto the vacuum mount)
  • 1 x 114 mm SeaSucker Black Vacuum Mount
  • 1 x 114 mm SeaSucker White Protective Cover
  • SeaSucker Vacuum Mount User Guide
  • Some basic assembly; no tools required

We offer a 1 year, non-transferable warranty covering defects in materials and workmanship. The warranty covers the defective product only and can be returned within 1 year of the date of original purchase to Gear Campus for replacement or repair. This shall constitute the sole remedy of the purchaser and the sole liability of Gear Campus Pty Ltd to the extent permitted by law. In no event shall Gear Campus Pty Ltd be liable for special or consequential damages.

A sales receipt must accompany warranty claims. If your product fails due to a manufacturing or workmanship defect our first option will be to repair the item, free of charge. If the product is not repairable, or if the cost of repairing the item exceeds the cost of a new one, we will replace it. If the item has failed due to a manufacturing defect, we will pay the return shipping charges.

Product Features & Benefits

  • Save money by not purchasing a new smartphone mount when your change smartphones.
  • The Smartphone mount is fully adjustable to accommodate big Smartphones including phablets.
  • You will save on the cost of repairs by not having to fill in holes, this can get very expensive!
  • The vacuum mount is low maintenance; all parts are replaceable and the pump is serviceable.
  • It will attach to steel, aluminium, glass, fibreglass, painted plaster and some non-skid surfaces.
  • You can relocate the Smartphone mount in seconds and leave no marks behind.
  • It is multi-purpose; use the same mount in your car, boat, caravan or around the home.

114 mm Vacuum Mount Specifications
Maximum Pull Rating:  45 kg
Load Carrying Capacity: 18.14 kg
Vacuum Mount Diameter: 114 mm
Vacuum Mount Height when mounted: 45 mm
Vacuum Mount Height at rest: 52 mm
Housing Top Diameter:  60 mm
Housing Height Only: 33 mm
Housing Top Slot Width: 7 mm
Housing Top Slot Length: 14 mm
Housing Centre Thread:  ¼-20





















SKU 6016
Brand SeaSucker
Shipping Weight 0.7000kg
Shipping Width 0.120m
Shipping Height 0.200m
Shipping Length 0.120m
Unit Of Measure ea
